380v Oxygen Aerator Ozone Mixing Pump Water Treatment Micro Nano Bubble

380v Oxygen Aerator Ozone Mixing Pump Water Treatment Micro Nano Bubble

  • High Light

    nano bubble ozone mixing pump

    ,

    380v ozone mixing pump

    ,

    380v Water Treatment Pump

  • Water Flow Rate
    1-50T/h
  • OEM
    Available
  • Application
    Swimming Pool;aquaculture;wastewater;drinking Water
  • MOQ
    1 Set
  • Keywords
    Micro Nano Bubble Generator
  • Voltage
    380v
  • Place of Origin
    China
  • Brand Name
    OzoCenter
  • Model Number
    65WSP110
  • Minimum Order Quantity
    1 set
  • Price
    USD 520-7500 per set
  • Packaging Details
    Wooden Case
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    100 Sets per month

380v Oxygen Aerator Ozone Mixing Pump Water Treatment Micro Nano Bubble

Water treatment oxygen aeration ozone water mixing pump micro nano bubble pump
Micro bubble is a new kind of mixing technology. It can mix gas and water. The gas can be any gas, such as oxygen, ozone.
High gas liquid mixing efficiency with micro bubble 20-30 microns. It is three times more efficient than venturi .

Features:
Product Featrues:
1. Water flow rate:1T/Hr to 50T/Hr
2. Micro bubbles size 20~30microns for gas water mixing
3. Used with SS304 or 316L material mixing tank for impoving mixing efficiency(OEM)
4. 220V/380V are available, when you make order pls kindly note us the voltage you need, thanks.

Applications:
1. Aeration systems
2. Oxygen injection
3. Ozone injection
4. Aquaculture - fish farming

Model No.
Water flow rate
(T/Hr)
Motor parameters
Max.lift head(m)/
Flow rate
(L/min;m³/h)
The flow rate of
40 meters lift head(L/min;m³/h)
Resistant material maximum surface temperature(℃)

20WSCO4

1T
220/50HZ
0.37KW
2 level IP55
45m
12L/min
0.72m³/h
14L/min
0.84m³/h
120

25WSCO7

2T
220/50HZ
0.75KW
2 level IP55
50m
17L/min
1.02m³/h
25L/min
1.5m³/h
120

32WSC15
3-4T
380/50HZ
1.5KW
2 level IP55
60m
35L/min
2.1m³/h
52L/min
3.12m³/h
120

40WSC22

5-6T
380/50HZ
2.2KW
2 level IP55
50m
82L/min
4.92m³/h
102L/min
6.12m³/h
120

50WSP2-75

10-15T
380/50HZ
7.5KW
4 level IP55
80m
50L/min
3.0m³/h
150L/min
9m³/h
180

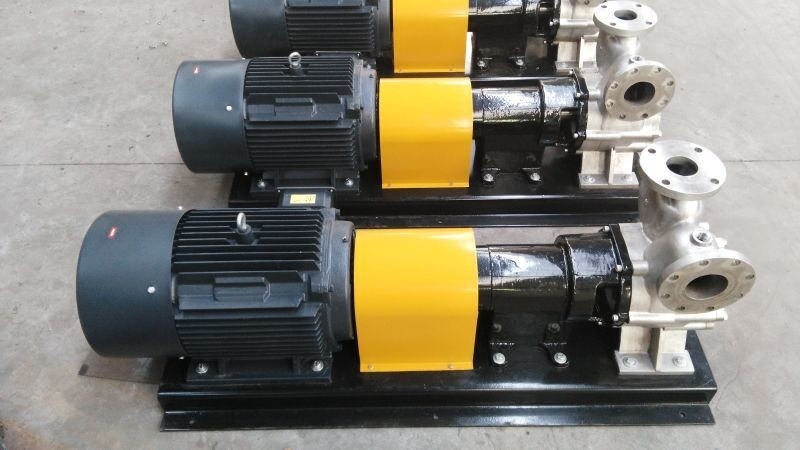

380v Oxygen Aerator Ozone Mixing Pump Water Treatment Micro Nano Bubble 0

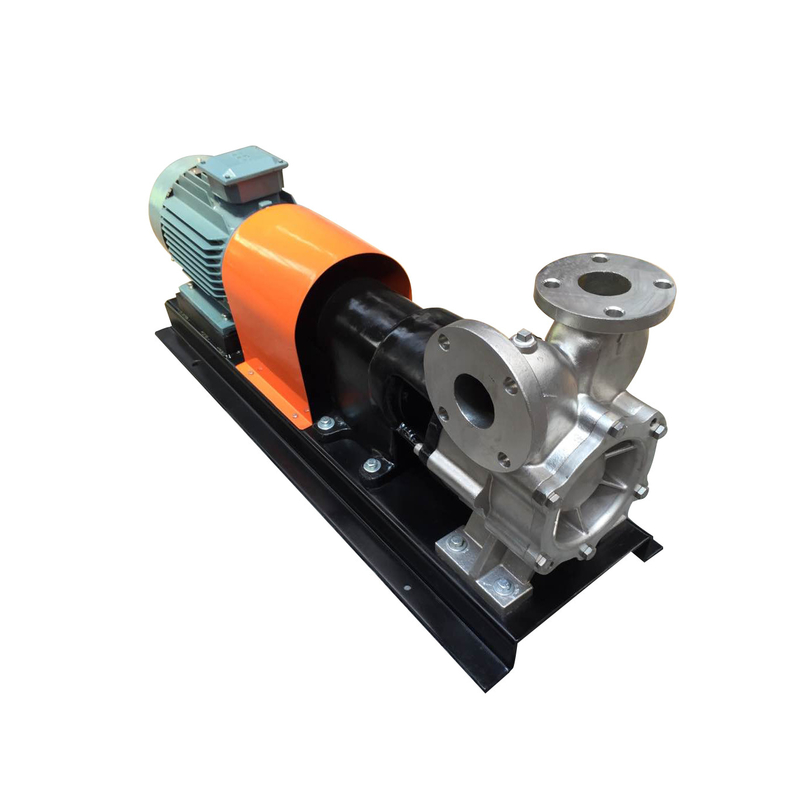

380v Oxygen Aerator Ozone Mixing Pump Water Treatment Micro Nano Bubble 1





Our Services & Strength
1. We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2. Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment, gets ISO certification every year.
3. We have our own R & D team and technical team.
4. From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material,the ozone machine life reach 20,000 hours,ect.
5. The quality of our products is guaranteed, the one-year warranty ect.
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in
packing and avoid any troubles during shipping.
Delivery:

1)  3~7 days for portable ozone generator order.

2)  10~30 days for industrial/middle size ozone gener
ator order.
3)  Shipping could be courier, airline or sea.
Q1: Are you trading company or manufacturer ?
Re:We are a company integrating factory and trade

Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C

Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
