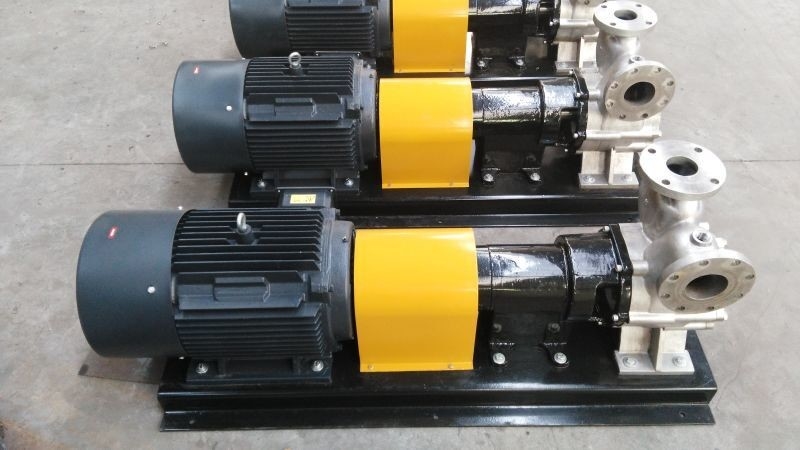

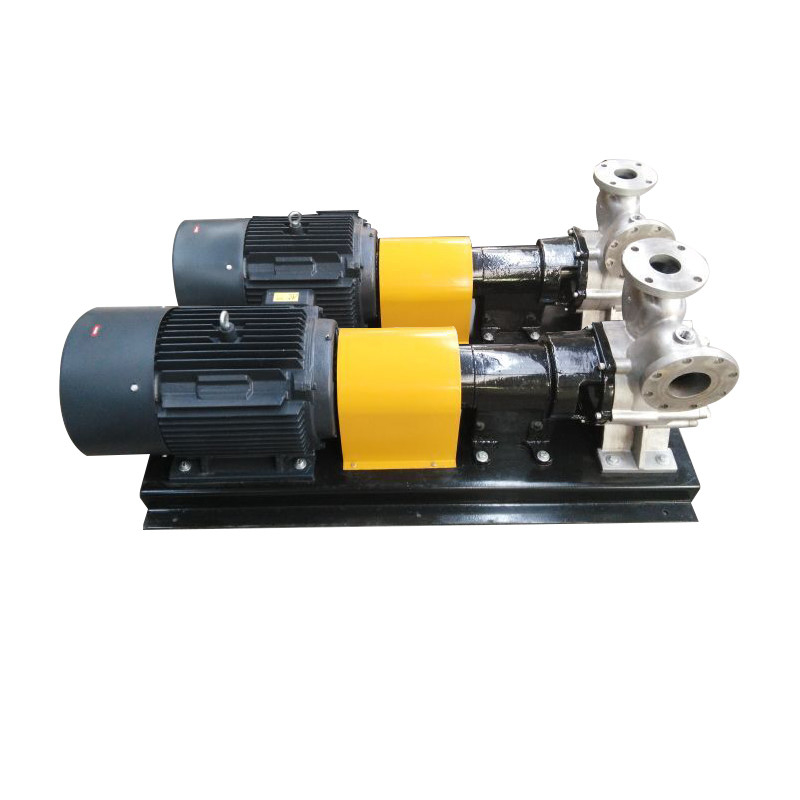

Nano bubble generator micro air water mixing pump durable oxygen water mixing pump
Micro bubble is a new kind of mixing technology. It can mix gas and water. The gas can be any gas, such as oxygen, ozone.
High gas liquid mixing efficiency with micro bubble 20-30 microns. It is three times more efficient than venturi .
Features:
Product Featrues:
1. Water flow rate:1T/Hr to 50T/Hr
2. Micro bubbles size 20~30microns for gas water mixing
3. Used with SS304 or 316L material mixing tank for impoving mixing efficiency(OEM)
4. 220V/380V are available, when you make order pls kindly note us the voltage you need, thanks.
Applications:
1. Aeration systems
2. Oxygen injection
3. Ozone injection
4. Aquaculture - fish farming
5. Spa bath systems
6. Microbubble
7. Waste water treatment plants
8. Paper mill process water recycling etc.
9. DAF System
Model No.
Water flow rate
(T/Hr)
Motor parameters
Max.lift head(m)/
Flow rate
(L/min；m³/h)
The flow rate of
40 meters lift head(L/min；m³/h)
Resistant material maximum surface temperature(℃)
20WSCO4
1T
220/50HZ
0.37KW
2 level IP55
45m
12L/min
0.72m³/h
14L/min
0.84m³/h
120
25WSCO7
2T
220/50HZ
0.75KW
2 level IP55
50m
17L/min
1.02m³/h
25L/min
1.5m³/h
120
32WSC15
3-4T
380/50HZ
1.5KW
2 level IP55
60m
35L/min
2.1m³/h
52L/min
3.12m³/h
120
40WSC22
5-6T
380/50HZ
2.2KW
2 level IP55
50m
82L/min
4.92m³/h
102L/min
6.12m³/h
120
50WSP2-75
10-15T
380/50HZ
7.5KW
4 level IP55
80m
50L/min
3.0m³/h
150L/min
9m³/h
180
65WSP11
25-30T
380/50HZ
11KW
4 level IP55
60m
300L/min
18m³/h
500L/min
30m³/h
180
80WSP22
45-50T
380/50HZ
22KW
4 level IP55
60m
650L/min
39m³/h
850L/min
51m³/h
180
Our Services & Strength
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment, gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material,the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping. Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
