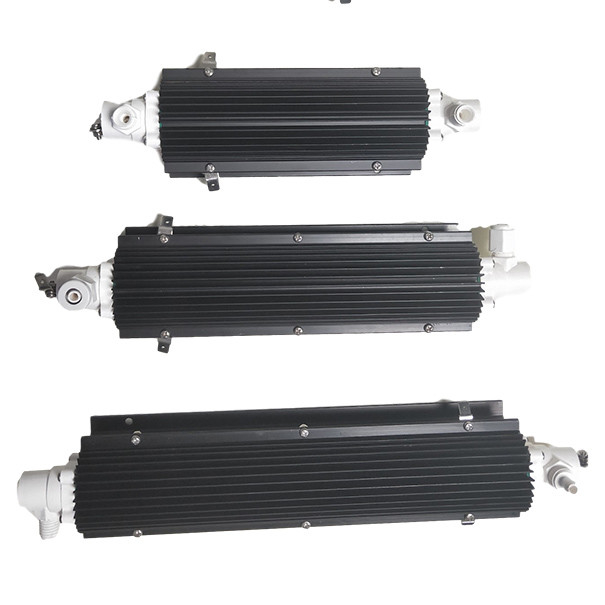

7G 5G Adjustable Ozone Generator Parts Double Air Cooled 10G 8G Ozone Quartz Tube

7G 5G Adjustable Ozone Generator Parts Double Air Cooled 10G 8G Ozone Quartz Tube

Products - Ozone Generator Parts
  • High Light

    Adjustable Ozone Generator Parts

    ,

    Double Air Cooled Ozone Generator Parts

  • Material
    Ozone Quartz Tube
  • Moq
    1 Set
  • Warranty
    12 Months
  • Output
    10G 8G 5G 3G
  • Adjustable
    20% To 100%
  • Set
    Ozone Tube With Power Board
  • Application
    Air And Water Treatment
  • Keywords
    Ozone Generator Tube Spare Parts
  • Place of Origin
    China
  • Brand Name
    Osunshine
  • Model Number
    CH-PSF
  • Minimum Order Quantity
    1
  • Price
    negotiate
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    3 to 5days
  • Payment Terms
    paypal,western union,T/T,credit card
  • Supply Ability
    1000 per weeks

7G 5G Adjustable Ozone Generator Parts Double Air Cooled 10G 8G Ozone Quartz Tube

  • 7G 5G Adjustable Ozone Generator Parts Double Air Cooled 10G 8G Ozone Quartz Tube
  • 7G 5G Adjustable Ozone Generator Parts Double Air Cooled 10G 8G Ozone Quartz Tube
  • 7G 5G Adjustable Ozone Generator Parts Double Air Cooled 10G 8G Ozone Quartz Tube
  • 7G 5G Adjustable Ozone Generator Parts Double Air Cooled 10G 8G Ozone Quartz Tube
  • 7G 5G Adjustable Ozone Generator Parts Double Air Cooled 10G 8G Ozone Quartz Tube
Get Price Contact Now

Double air cooled 10G 8G ozone quartz tube 7G 5G adjustable ozone generator parts





Specification:



Item
Unit
CH-PSF3GM
CH-PSF5GM / CH-PSF5GA
Ambient temperature
℃
26
26
Ambient humidity
%
77
77
Power
W
50
66
Oxygen feed flow rate
LPM
2
1.5
1
0.5
2
1
0.5
Ozone concentration
Mg/L
32.9
37
39
47.2
42.5
47.3
53.4
Ozone output
G/Hr
3.95
3.3
2.34
1.42
5.1
2.83
1.6
Ozone output adjustable range
%
/
CH-PSF5GM: /
CH-PSF5GA: 20-100%
Power supply
V/Hz
220v/50hz
220v/50hz
Cooling way
/
Air cooling
Air cooling
Diameter of cooling fan
mm
150*150mm
150*150mm
Diameter of gas inlet/outlet
mm
EDФ6
EDФ6
Power supply dimensions
mm
158*73*54
CH-PSF5M: 175*66*57
CH-PSF5A: 158*75*68
ozone tube dimensions
mm
160*62*47
205*62*47
Ozone tube weight
Kg
0.282
0.381
Power supply weight
Kg
0.59
CH-PSF5M: 0.72
CH-PSF5A: 0.52
Item
Unit
CH-PSF8GA-1
CH-PSF10GA-1
Ambient temperature
℃
26
26
Ambient humidity
%
77
77
Power
W
100
110
Oxygen feed flow rate
LPM
3
2
1
3
2
1
0.5
Ozone concentration
Mg/L
45.7
48.6
57
59.7
67.3
69.2
53.4
Ozone output
G/Hr
8.23
5.8
3.42
10.74
8.1
4.15
1.6
Ozone output adjustable range
%
20-100%
20-100%
Power supply
V/Hz
220v/50hz
220v/50hz
Cooling way
/
Air cooling
Air cooling
Diameter of cooling fan
mm
150*150mm
150*150mm
Diameter of gas inlet/outlet
mm
EDФ6
EDФ6
Power supply dimensions
mm
158*75*68
158*75*68
ozone tube dimensions
mm
260*62*47
310*62*47
Ozone tube weight
Kg
0.506
0.62
Power supply weight
Kg
0.52
0.52




7G 5G Adjustable Ozone Generator Parts Double Air Cooled 10G 8G Ozone Quartz Tube 0

Features:

High quality quartz tube, teflon connections material for ensuring several years running.

1. Extremely low rate of ozone decay & high ozone concentration.

2. Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output. 3. Low working voltage, The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

4. Small in size. It saves space effectively. The size is 1/4 smaller than similar products.



12000+hours stability Test: After continuous operation,the temperature only increased by 18 degrees.



Double air cooled 10G 8G ozone quartz tube 7G 5G adjustable ozone generator parts
