2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube

2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube

Products - Ozone Generator Parts
  • High Light

    Quartz Tube Ozone Generator Parts

    ,

    Air Treatment Tube Ozone Generator Parts

  • Material
    Quartz Tube
  • Moq
    1 Set
  • Warranty
    1 Year
  • Output
    1g 3g 5g 6g 7g
  • Brand
    Netech
  • Adjustable
    20% To 100%
  • Set
    With Power Supply
  • Application

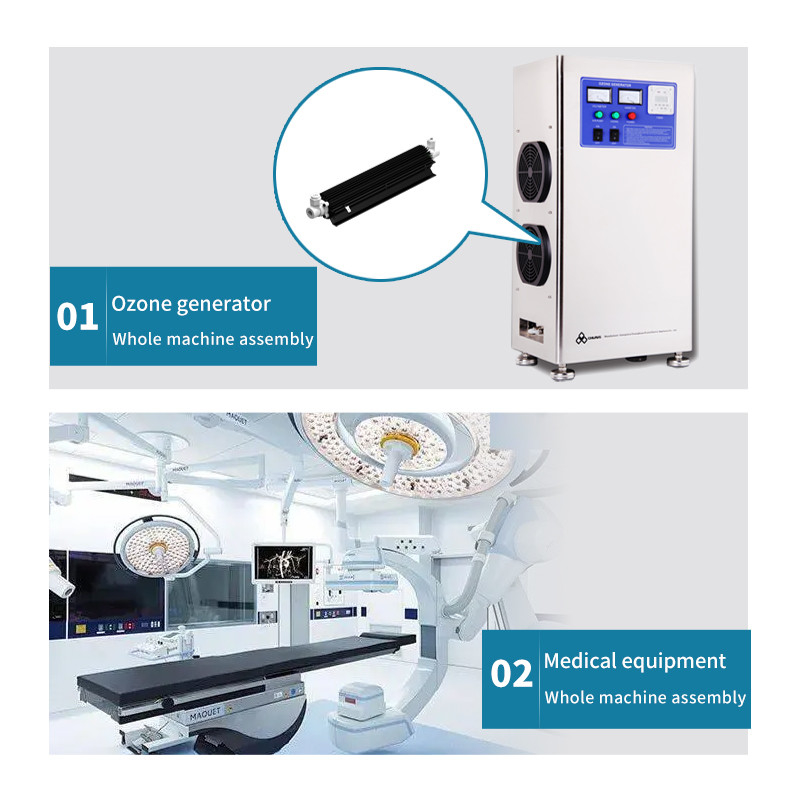

    Air Purify, Water Treatment
  • Keywords
    Air Treatment Ozone Tube
  • Place of Origin
    China
  • Brand Name
    Osunshine
  • Model Number
    CH-PSF
  • Minimum Order Quantity
    1
  • Price
    negotiate
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    3 to 5days
  • Payment Terms
    paypal,western union,T/T,credit card
  • Supply Ability
    1000 per weeks

2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube

  • 2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube
  • 2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube
  • 2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube
  • 2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube
  • 2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube
  • 2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube
  • 2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube
Get Price Contact Now
High quality air cooling 2g/h-10g/h quartz tube ozone generator parts air treatment Ozone Tube
2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube 0
2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube 1

  •

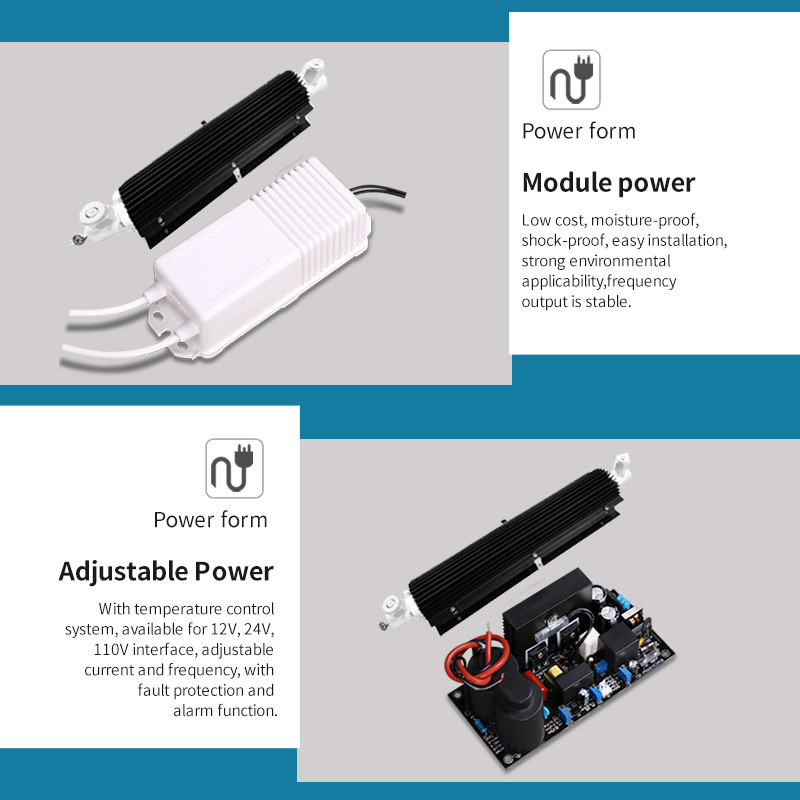

CH-PSF Quartz Ozone tube with power supply
Features:
1. Extremely low rate of ozone decay & high ozone concentration.

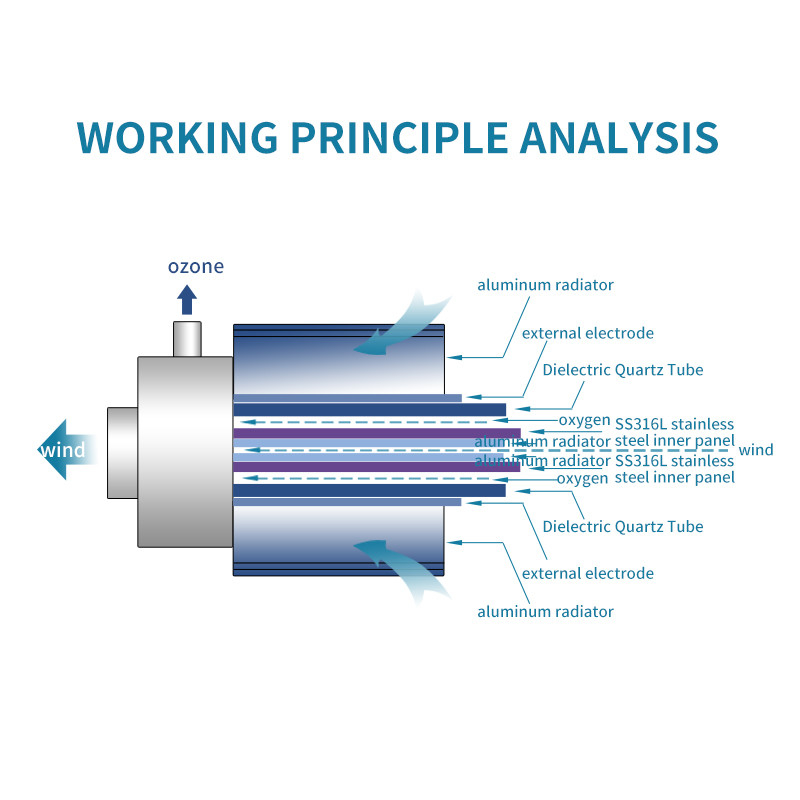

2. Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3. Low working voltage, The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.

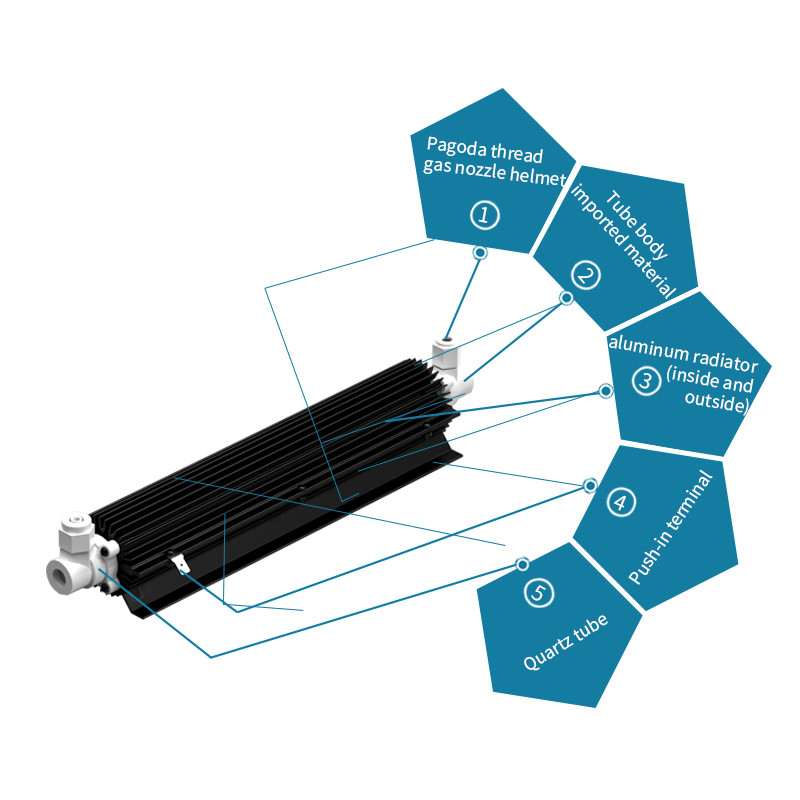

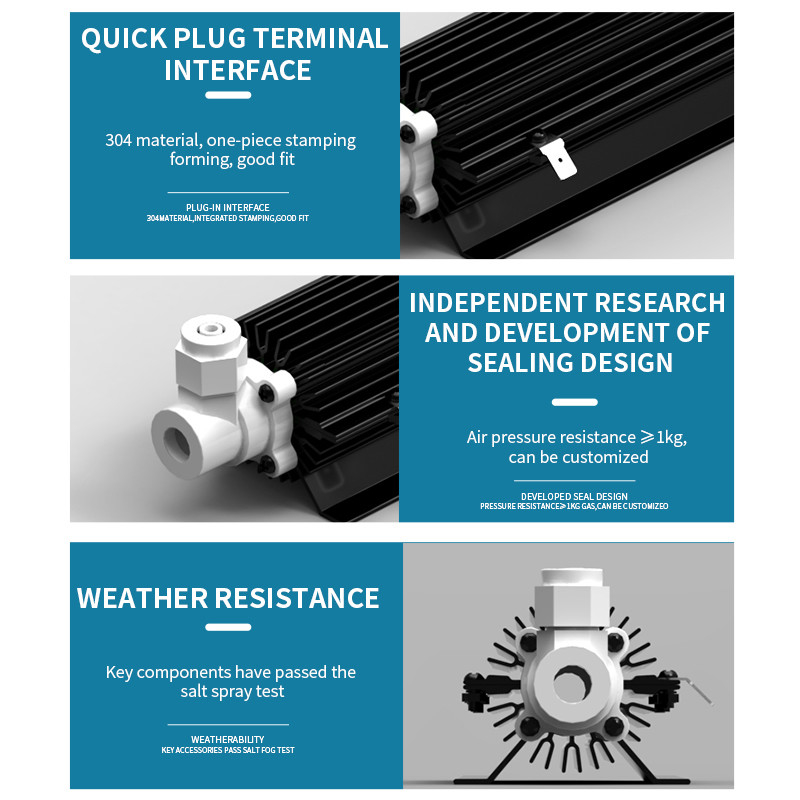

4. High quality quartz tube, teflon connections material for ensuring several years running.

Item
Unit
CH-PSF3GM
CH-PSF5GM / CH-PSF5GA
Ambient temperature
℃
26
26
Ambient humidity
%
77
77
Power
W
50
66
Oxygen feed flow rate
LPM
2
1.5
1
0.5
2
1
0.5
Ozone concentration
Mg/L
32.9
37
39
47.2
42.5
47.3
53.4
Ozone output
G/Hr
3.95
3.3
2.34
1.42
5.1
2.83
1.6
Ozone output adjustable range
%
/
CH-PSF5M: /
CH-PSF5A: 20-100%
Line power supply
V/Hz
220v/50hz
220v/50hz
Cooling way
/
Air cooling
Air cooling
Diameter of cooling fan
mm
150*150mm
150*150mm
Diameter of gas inlet/outlet
mm
EDФ6
EDФ6
Power supply dimensions
mm
158*73*54
CH-PSF5M: 175*66*57
CH-PSF5A: 158*75*68
ozone tube dimensions
mm
160*62*47
205*62*47
Ozone tube weight
Kg
0.282
0.381
Power supply weight
Kg
0.59
CH-PSF5M: 0.72
CH-PSF5A: 0.52
Item
Unit
CH-PSF8GA-1
CH-PSF10GA-
Ambient temperature
℃
26
26
Ambient humidity
%
77
77
Power
W
100
110
Oxygen feed flow rate
LPM
3
2
1
3
2
1
0.5
Ozone concentration
Mg/L
45.7
48.6
57
59.7
67.3
69.2
53.4
Ozone output
G/Hr
8.23
5.8
3.42
10.74
8.1
4.15
1.6
Ozone output adjustable range
%
20-100%
20-100%
Line power supply
V/Hz
220v/50hz
220v/50hz
Cooling way
/
Air cooling
Air cooling
Diameter of cooling fan
mm
150*150mm
150*150mm
Diameter of gas inlet/outlet
mm
EDФ6
EDФ6
Power supply dimensions
mm
158*75*68
158*75*68
ozone tube dimensions
mm
260*62*47
310*62*47
Ozone tube weight
Kg
0.506
0.62
Power supply weight
Kg
0.52
0.52
Remark:
1. Above specifications under the working conditions of Oxygen purity >95%; 2. Different working condition there will be 10%-20% different of ozone capacity.
2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube 2
2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube 3
2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube 4
2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube 5
2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube 6
2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube 7
2g/H Quartz Tube Ozone Generator Parts Air Treatment Ozone Tube 8
