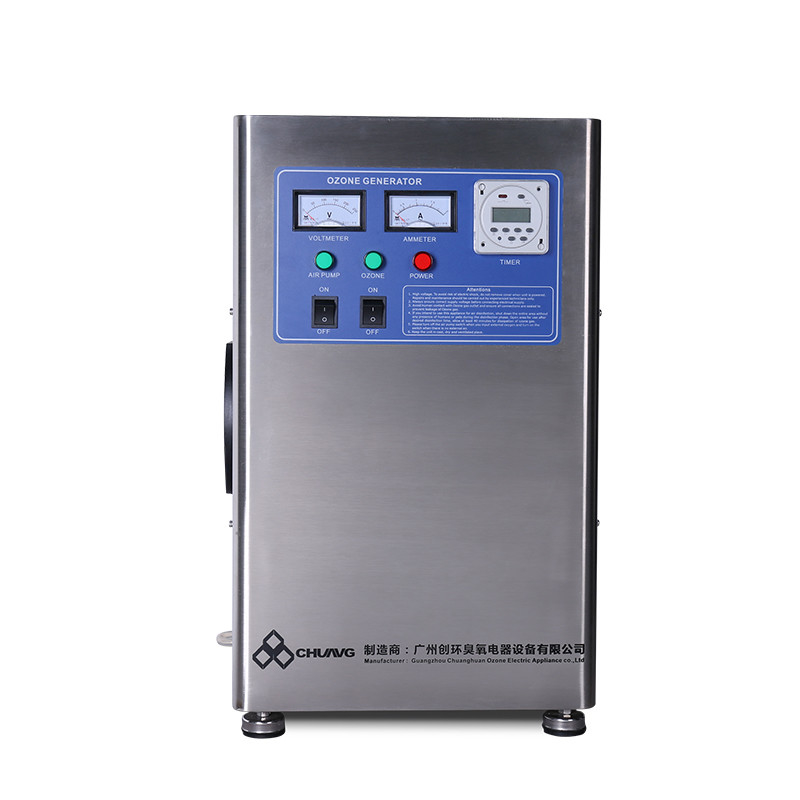

Air source Ozone Generator for Swimming Pool Treatment Disinfect Bacteria
Air source Ozone Generator for Swimming Pool Treatment Disinfect Bacteria
Specification:
Model |
Dimensions
|
Current
|
Ozone outlet | Ozone concentration |
Power
|
Weight
|
Gas flow rate |
Pressure
|
mm | A | G/Hr | Mg/L | W | Kg | L/Min | Mpa | |

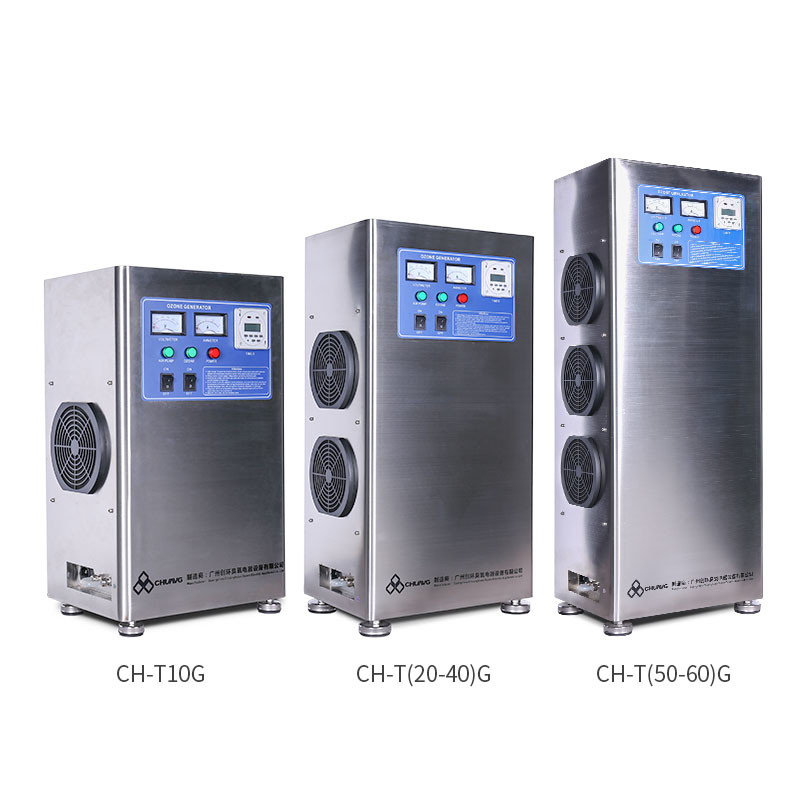

CH-T10G | 360×260×610 | 1.1 | 10g | 10-30 | 240 | 12.8 |
55
|
0.025 |
CH-T10G-N | 1.1 | 10g | 240 | 13.5 | ||||
CH-T15G |
400×280×800 |
2.3 | 15g | 500 | 19.5 |
16
|
0.14 | |
CH-T15G-N | 2.3 | 15g | 500 | 22.7 | ||||
CH-T20G | 3.1 | 20g | 690 | 22.6 | ||||
CH-T20G-N | 3.1 | 20g | 690 | 23.8 | ||||
CH-T30G | 400×280×1010 | 5 | 30g | 1100 | 32 | 25 | ||
CH-T30G-N | 5 | 30g | 1100 | 33 | ||||
CH-T40G-N | 400×280×1300 | 6 | 40g | 1320 | 41 | 36 | ||
CH-T50G |
400×520×1040 |
8 | 50g | 1760 | 53 | 50 | ||
CH-T60G | 8.5 | 60g | 1870 | 54 | 72 |
Features:
1. Builted in Domestic Patented Product -Air cooling ozone generator
2. Optional built-in Automatic air dryer or not ,Feed dryed air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance
Air source Ozone Generator for Swimming Pool Treatment Disinfect Bacteria
Company Introdcution:
Guangzhou OSUNSHINE Environmental Technology Co., Ltd., based on the parent company of Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone generator, Oxygen machine, Sodidum Hypochlorite generator, Ozone tube, Titanium anode plate, accessories production, development and application of products etc.
