CHUANGHUAN Ozocenter quartz tube Ozone purifier ozonator for water treatment
CHUANGHUAN Ozocenter quartz tube Ozone purifier ozonator for water treatment
Specification:
Model |
Dimensions
|
Current
|
Ozone outlet | Ozone concentration |
Power
|
Weight
|
Gas flow rate |
Pressure
|
mm | A | G/Hr | Mg/L | W | Kg | L/Min | Mpa | |

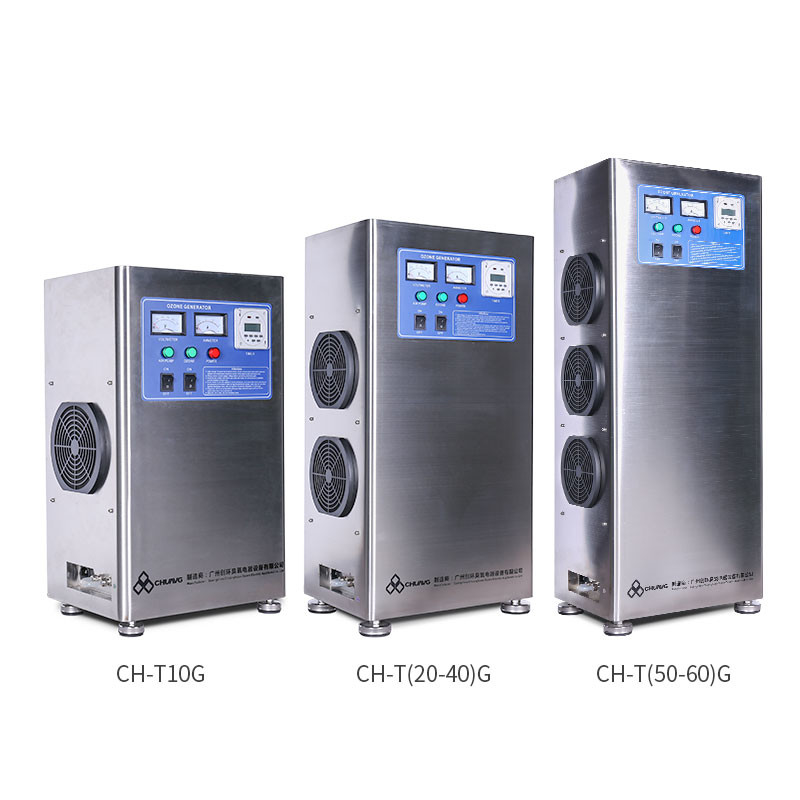

CH-T10G | 360×260×610 | 1.1 | 10g | 10-30 | 240 | 12.8 |
55
|
0.025 |
CH-T10G-N | 1.1 | 10g | 240 | 13.5 | ||||
CH-T15G |
400×280×800 |
2.3 | 15g | 500 | 19.5 |
16
|
0.14 | |
CH-T15G-N | 2.3 | 15g | 500 | 22.7 | ||||
CH-T20G | 3.1 | 20g | 690 | 22.6 | ||||
CH-T20G-N | 3.1 | 20g | 690 | 23.8 | ||||
CH-T30G | 400×280×1010 | 5 | 30g | 1100 | 32 | 25 | ||
CH-T30G-N | 5 | 30g | 1100 | 33 | ||||
CH-T40G-N | 400×280×1300 | 6 | 40g | 1320 | 41 | 36 | ||
CH-T50G |
400×520×1040 |
8 | 50g | 1760 | 53 | 50 | ||
CH-T60G | 8.5 | 60g | 1870 | 54 | 72 |

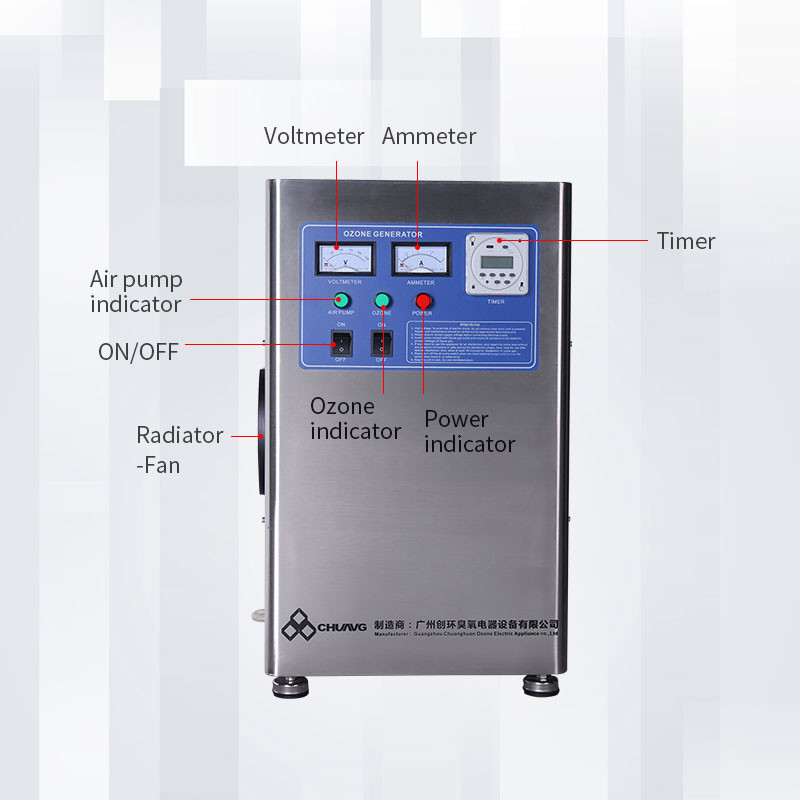

Control panel:
Voltmeter, Ampmeter, Switch, Timer, Working light, Power light etc.
Timer: Set the working time by microcomputer controller, you can set several times of starting up and turning off; the machine automatically work according to the time you have set.
CHUANGHUAN Ozocenter quartz tube Ozone purifier ozonator for water treatment
Applications:
1. Medical treatment industry: disinfect sickroom, operating room, medical treatment equipment,aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacterias, disinfect production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacterias, disinfect production water supply.
5. Commercial use in House, hotel, Office, KTV, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Bacteria, Virus to fresh air.
6. Water purifier: Disinfect production Water supply. Bottle Water,Domestic Water,Well Water,Pool Water Disinfection & Sterilization
Company Introdcution:
Guangzhou OSUNSHINE Environmental Technology Co., Ltd., based on the parent company of Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone generator, Oxygen machine, Sodidum Hypochlorite generator, Ozone tube, Titanium anode plate, accessories production, development and application of products etc.
