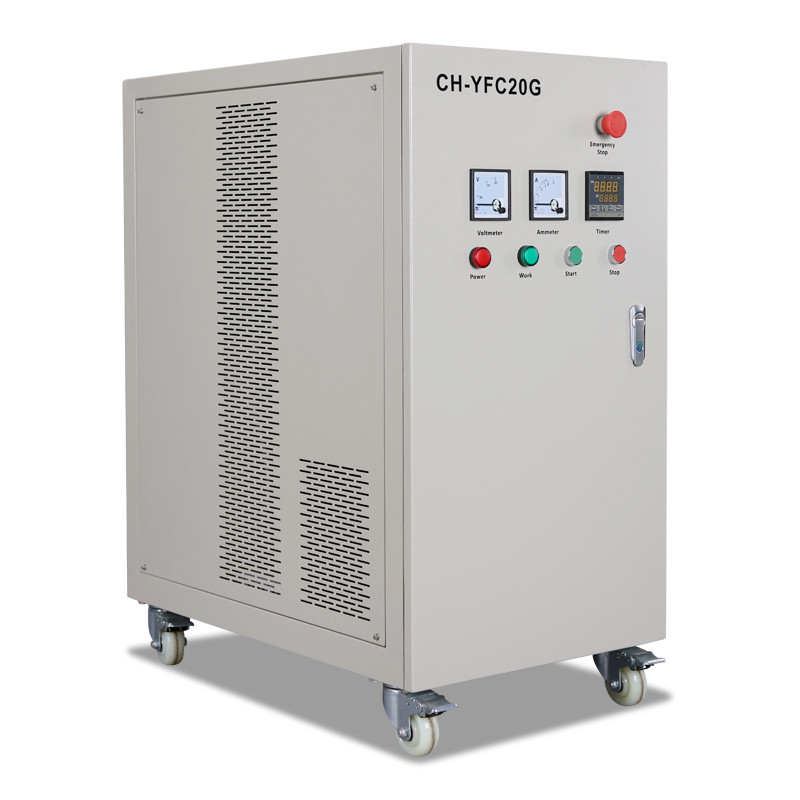

20g Water Ozone Generator Drinking Water Treatment Disinfection Ozone Machine

20g Water Ozone Generator Drinking Water Treatment Disinfection Ozone Machine

  • High Light

    20g Water Ozone Generator

    ,

    Drinking Water Ozone Generator

  • Item
    Disinfection Ozone Machine Water Ozone Generator Drinking Water Treatment
  • Voltage
    110V/220V
  • Ozone Output
    5g10g15g20g 30g
  • Ozone Cocentration
    60-90MG/L
  • Material
    Ceramic Ozone Tube
  • Usage
    Kinds Of Water Treatment
  • Place of Origin
    China
  • Brand Name
    Ozocenter
  • Certification
    ISO
  • Model Number
    CH-YFC20G
  • Minimum Order Quantity
    1
  • Price
    USD1713-USD3515
  • Packaging Details
    Plywood wooden box
  • Delivery Time
    5-8workding days
  • Payment Terms
    T/T
  • Supply Ability
    100 set per month

20g Water Ozone Generator Drinking Water Treatment Disinfection Ozone Machine

Disinfection ozone machine water ozone generator drinking water treatment

Features:

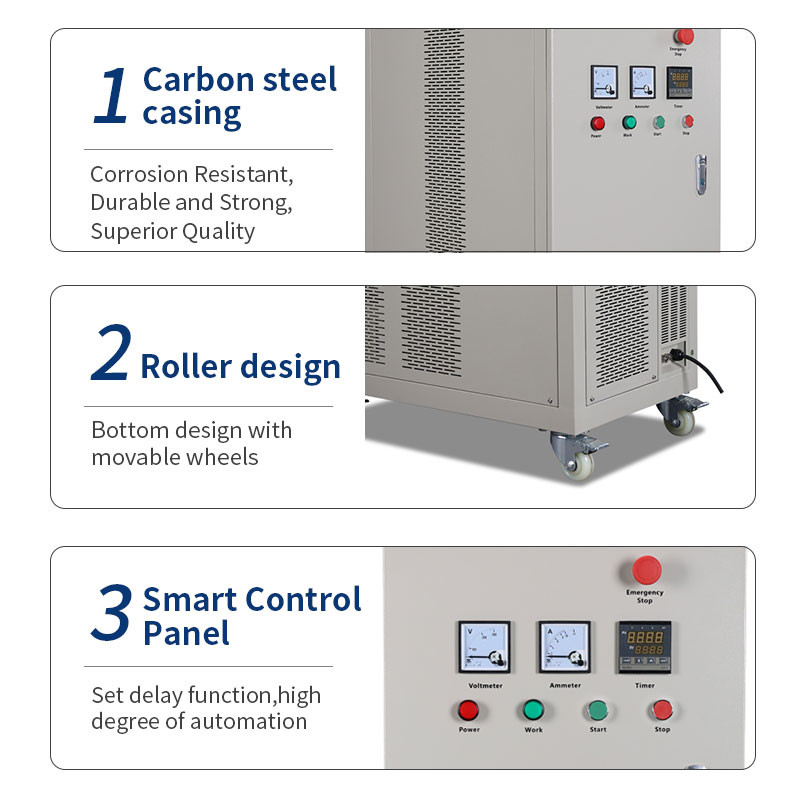

1. Carbon steel sprayed with plastic housing;
2. Built-in PSA high purity twelve tower oxygen sieve;
3. Built-in patent of product –Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;
4. Built-in Oil-free air compressor;
5. Built-in Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;

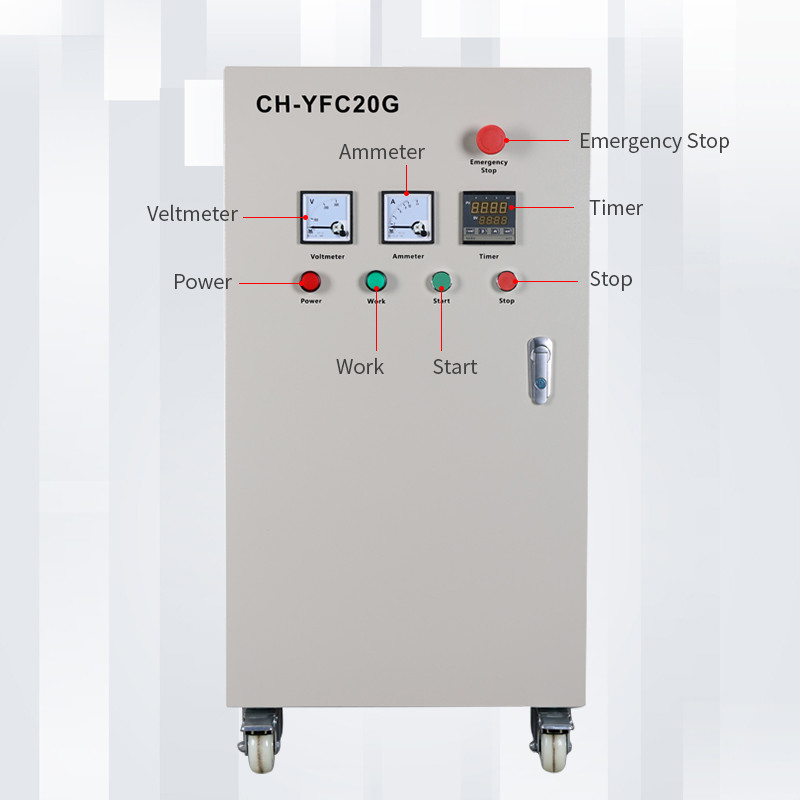

6. Manual control, easy operation and maintenance.






Item Unit CH-YFC5G CH-YFC10G CH-YFC15G CH-YFC20G CH-YFC30G
Oxygen flow rate LPM 3 3.5 5 8 10
Ozone concentration Mg/L 48.5~52.3 48.5~52.3 49.5~51.2 38.9~41.7 53.2~56.1
Ozone output G/Hr 5 10~11 14.8~15.4 18.6~20 32~34
Power KW ≤0.48 ≤0.81 ≤0.924 ≤1.00 ≤1.23
Current A 2.2 3.6 4.2 4.5~4.7 5.6±5%
Voltage V 220V/50HZ
NW KG 64 86 89 92 97
Size cm 45x50x84 50×66×95 45*93*118
