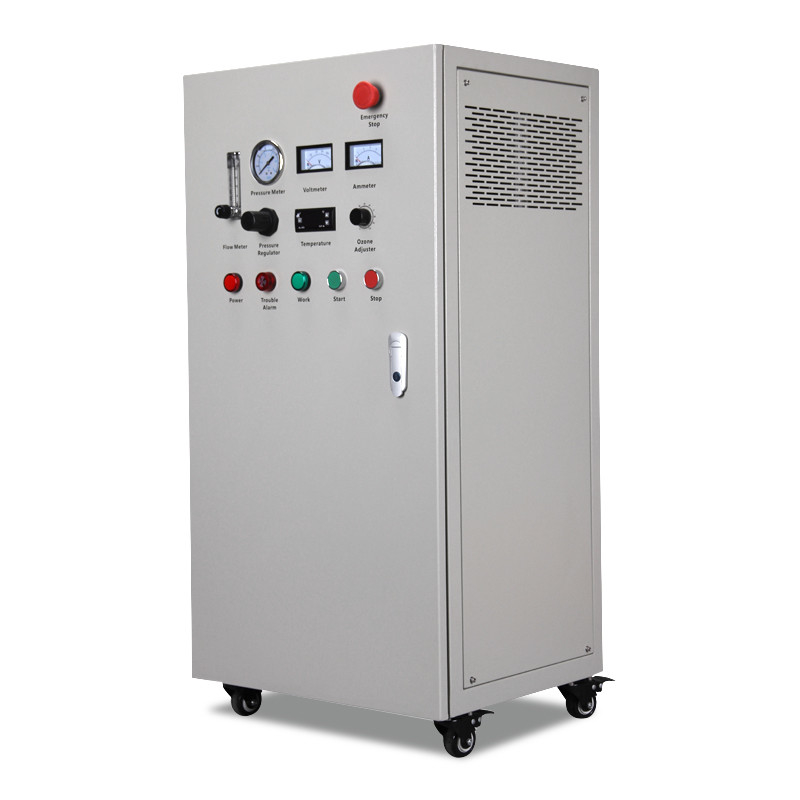

High ozone concentration 60G oxygen feed ozone water machinery for swimming pool

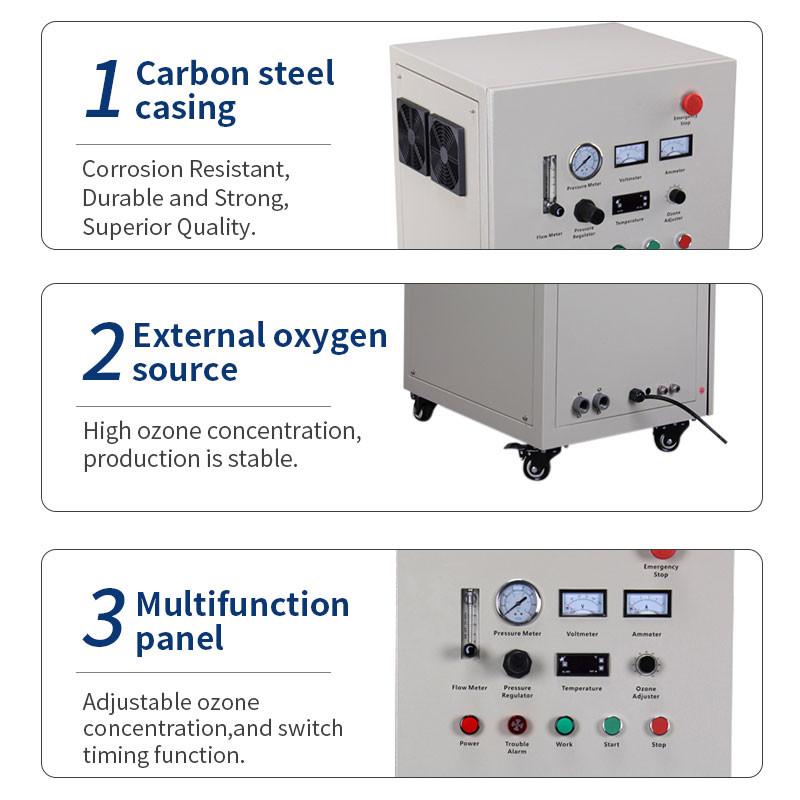

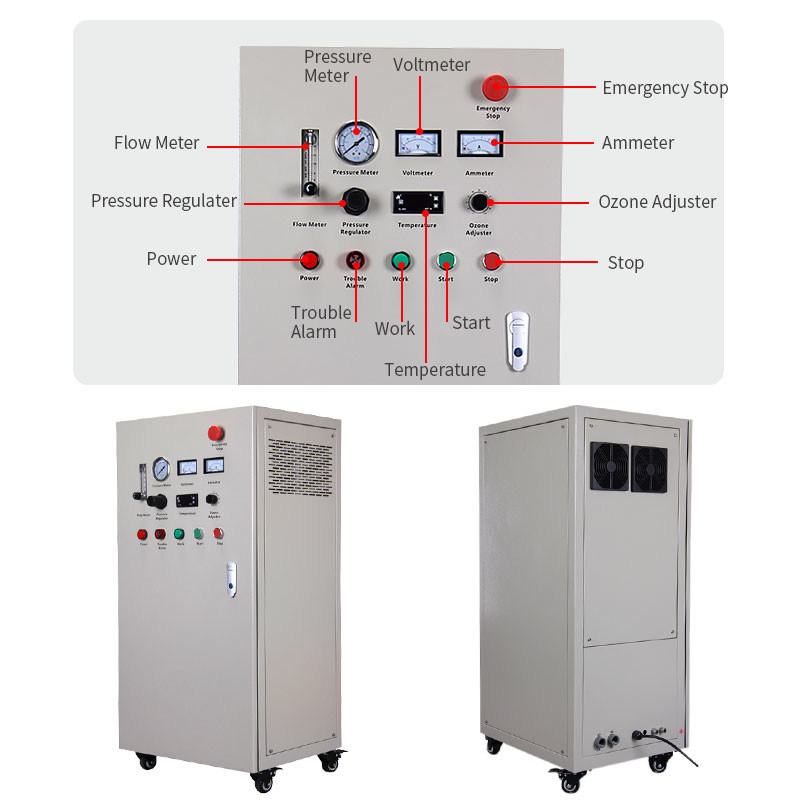

Product Features:
1. SS housing /carbon steel sprayed with plastic housing
2. It must connect with outside oxygen generator or oxygen tank
3. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration:
100Mg/L with stable ozone capacity, long life time
4. Small in size, adjustable ozone range: 20%--100%
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
CH-WZQ Specifications
Item | Unit | CH-WZQ | |||||
10G | 20G | 30G | 40G | 50G | 60G | ||
Oxygen flow rate | LPM | 1~3 | 2~7 | 3~10 | 5~10 | 8~18 | 8~20 |
Ozone concentration | Mg/L | 69~88 | 52~104 | 56~93 | 85~116 | 60~90 | 60-70 |
Ozone output | G/Hr | 5~12 | 12~22 | 16~33 | 34~51 | 43~64 | 72-84 |
Power | W | 220 | 250 | 400 | 510 | 600W | 840W |
Fuse | A | 3 | 3 | 3 | 5 | 6 | 6 |
Cooling water flow rate | LPM | 30 | 48 | 48 | |||
Size | mm | 460×390×840 |
Applications:
* Aquactulture,Aquarium,Fish farming Water treatment
* Drinking water treatment, Spring water treatment ozone generator, Vegetable and fruits wash machine,
Chemical oxidation, Decolor and bleach ozone machine, Mariculture equipment, Mariculture ozone generator,
* Aquaculture water sterilization ozone generator, Aquaculture equipment, Remove alga equipment, Aquaculture
ozone generator, Aquaculture recycle water treatment equipment, Raw water aquaculture equipment, Connect
with outside gas feeding ozone generator, Nursery aquaculture equipment
Guangzhou OSUNSHINE Environmental Technology Co., Ltd., based on the parent company of
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses
on Ozone generator, Oxygen machine, Sodidum Hypochlorite generator, Ozone tube, Titanium anode plate,
accessories production, development and application of products etc.
With the development for several years, the company has been in 16 aspects of the ozone generator.
Most products have had CE certification.
We are the key suppliers for components of ozone generators in domestic and foreign manufacturers.
Our products include the 100mg-10kg / h of ozone and ozone accessories.
