|Place of Origin:||Guangdong China|
|Minimum Order Quantity:||1 unit|
|Price:||USD $150 per unit - $180 per unit|
|Packaging Details:||Safe double carton package with foam inside for protection|
|Delivery Time:||2-3 working days after received your payment|
|Payment Terms:||L/C D/A D/P T/T Western Union Credit Card/ Paypal|
|Supply Ability:||1000 units per month|
|Gas Flow Rate:||15LPM||Output Gas Tube:||φ6|
|Fuse:||3A||Size:||265 * 150 * 270mm|
|Voltage:||110v Or 220v||Ozone Output:||3g/h - 5g/h|
|Item:||Ozone Generator||Capacity (CFM):||98|
|Cooling Way:||Air Cooling||Generator Type:||Ceramic Ozone Generator Tube|
|Ozone Generating Way:||Corona Discharge||MOQ:||1 Set|
portable ozone generator,
home ozone generator

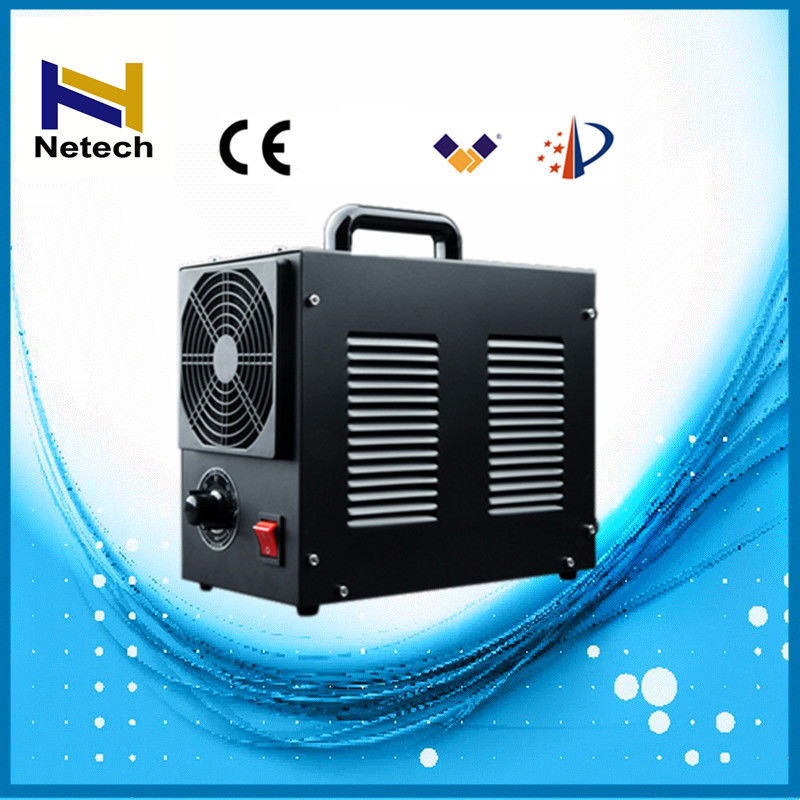

3G 5G Home Use Version Portable Air Cooling Ozone Machine Air Purifier
Warranty 1 year
cooling way air cooling
ozone output control 2% to100%
ozone output 3g 5g
ozone tube ceramic tube
gas source clean and dry air
ozone generating way ozone generating way corona discharge
power supply 110v/220v.50Hz/60Hz
time control 5 to 30 mins or continuously
usage water treatment,air purifier,swimming pool,farm and so on
1. Corona Discharge technology
2. Built in Domestic -High purity Ceramic ozone tube with electric board
3. Ozone adjustable range: 20%-100%
4. Two function for timer: 0-30 mins or working continuously
5. Input voltage:110V/60HZ,220V/50HZ
1. clean: destroy variety of bacteria & viruses efficiently without secondary pollution.
2. Detoxification: effectively remove the residual pesticides from vegetables and fruits.
3. Deodorization: eliminate mould, smoke etc.
4. Oxygen increasing: improve the oxygen level for air and water.
5. Health: air purification, expedite human metabolism.
|Item||Gas flow rate||Power||Output gas tube||Fuse||Size||NW|
|NT-KTB3G||10||80||φ6||3||265 * 150 * 270||4.6|
1.Before use this machine,put it in a stable flat place which can hold its
2.Use the power equipped with the machine;
3.The machine use for air purification,fisrtly attach the silicone tube into
>>the ozone outlet and then turn on the power;
4.Set the timer and then come out ozone, and put the tube into the room.
5.When use for room air purification, it requires nobody is present,
>>after 30 minutes people can walk into the room.
6.If use for water treatment, the air stone should be attached into the
>>silicone tube and put into the water.
7 .Attention, the machine should be placed higher than the water,in case
>>that the water refluex occur.
1. Air purify for room, such as house, hotel, Karaoke, club, public house, Internet bar, game center, bus station, supermarket, office buildings.
2. clean and clean for food, such as vegetable and fruit.
3. Water Purifying and Cleaning.
4. clean and clean for daily supplies, such as clothes, pillow towel, tool etc.
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Question and answer
1. Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
So far there is no one death reported caused by ozone poisoning.
2. Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
