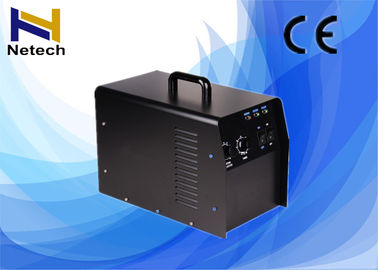

CE Home Ozone Water Treatment Odor Free Ozone Generator 3g/H - 7g/H 110V

CE Home Ozone Water Treatment Odor Free Ozone Generator 3g/H - 7g/H 110V

  • High Light

    odor free ozone generator

    ,

    ozone equipment

  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    CH-BP
  • Minimum Order Quantity
    1 set
  • Price
    $ 290 - $ 340
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    2 to 3 working days after payment confirmed
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    2000 sets per month

CE Home Ozone Water Treatment Odor Free Ozone Generator 3g/H - 7g/H 110V

CE Home Ozone Water Treatment / Ionizers And Ozone 3g/h - 7g/h 110V







Quick details



Brand Name: Netech

Model Number: CH-BP

Color: black

Power Source: Electrical

Capacity (CFM): 90%

Type: Automatic electric home appliance ozone air purifier water cleanr

Applications: car, auto, hotel, motel, boat, poultry house, home, ktv, toilet





Description



MOQ: 1 unit

Warranty: 12 months

Adustable ozone :20%-100%

Ozone generator weight:3g/5g/6g/7g

Cooling way: air cooling

Power supply: 220V/110v 50/60Hz

Time control: 5-30 mins or continuously



Operation:



1. Before use this machine,put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification,firstly attach the silicone tube into the ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present , after 30 minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone tube and put into the water.

7. Attention,the machine should be placed higher than the water, incase that the water reflux occur





Functions:



clean: Can quickly kill all bacteria, viruses, but without secondary pollution.

Detoxication: effective remove of pesticide residues from food.

Remove odor: musty, smoke, smoke flavor, water stains etc.
Improve oxygen: improve oxygen for water or air.
Healthy: air purify, expedite human metabolism.



Air source with inside air pump, also can connect outside oxygen source.

It can meet with different requirements of ozone output & concentration for different application





specification:



Item Gas flow rate Ozone output Power Output gas tube Fuse Size NW
Model LPM G/Hr W mm A mm Kg
CH-BP3G 10 3 70 φ6 3 355×215×310 8.5
CH-BP5G 5 80 8.6

CH-BP6G

15 6 100 8.7

CH-BP7G

17 7 110 8.8



Noted:

1. Above ozone capacity were tested under oxygen source

2. Net weight will be 10% different for different plug.



V

      Various Applications:



1. Air purification, removing odors, smoke, mold, etc.

2. Water clean for home, commercial, industrial used.

3. ozone for drinking water treatment and bottling clean.

4. ozone for aquaculture water purification.

5. ozone for removing iron and manganese.

6. ozone for reduce BOD, COD, wastewater, sewage, effluent treatment.

7. ozone for food storage, keep fruit, vegetable, products longer shelf life.

8. ozone for laundry system.

9. ozone for industrial polution control, removing odors, harmful gas.

10. ozone for food processing, factory, workshop clean.





Question and answer



♦ Is ozone harmful to human body ?

Once the ozone concentration fails to meet the hygiene and safety standard,

we can notice with our sense of smell and dodge away or take actions to avoid

further leakage.

So far there is no one died reported caused by ozone poisoning.



♦ Does the ozone generator work efficiently ?

Undeniably, ozone can clean and remove odor and formaldehyde.

It is reported that ozone is a widely used bactericide. It can kill escherichia coli,

bacteria efficiently and resolve the harmful material in a short time.





QUALITY CONTROL



In order to ensure the best quality, every ozone generator has been strictly tested before delivery.

We promise the good performance and all parts completely

according to you





ABOUT US



Gold supplier--Guangzhou Netech Environmental Technology Co., Ltd ,15 years of experience in Water Treatment and Environment R&D and Engineering,

we are able to solve all your solutions in Environmental Protection and Water Treatment.





*High quality guarantee

*Good after-sale service

*QUALITY CONTROL

*Every procedure has personnel inspection. All the products must be tested and qualified before packaging.
