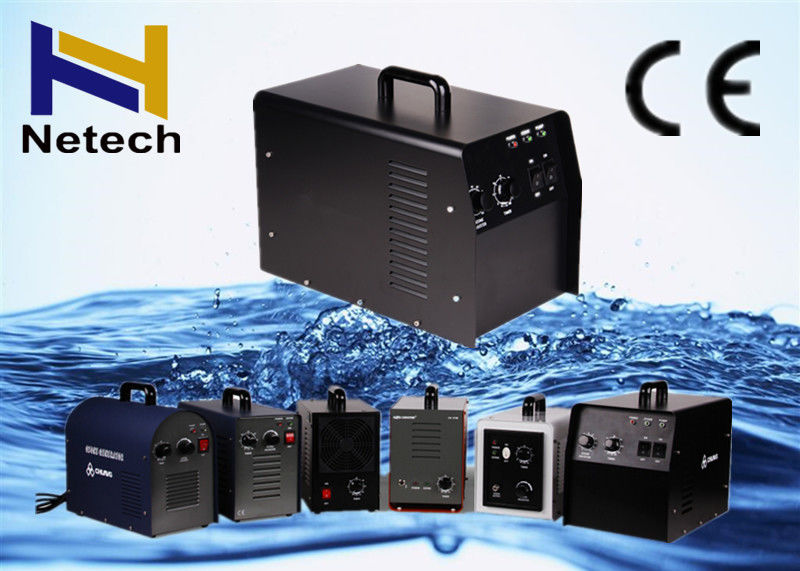

CE Approval 3G 5G 7G Ozone Generator To Kill Mold And Water Purification 110V
1. Quick details
Model Number: NT-BP
Certification: CE
Capacity (CFM): 98%
Applications: car, auto, hotel, kitchen, poultry house, home, club, toilet
Warranty: 12 months
Adjustable ozone :20%-100%
Ozone generator weight:3g/5g/6g/7g
Cooling way: air cooling
Power supply: 220V/110v 50/60Hz
Time control: 5-30 mins or continuously
2. How to use ?
1. Before use this machine,put it in a stable flat place which can hold its weight.
2. Use the power equipped with the machine;
3. The machine use for air purification,firstly attach the silicone tube into the ozone outlet and then turn on the power;
4. Set the timer and then come out ozone, and put the tube into the room.
5. When use for room air purification, it requires nobody is present , after 30 minutes people can walk into the room.
6. If use for water treatment, the air stone should be attached into the silicone tube and put into the water.
7. Attention,the machine should be placed higher than the water, incase that the water reflux occur
3. Specification:
Item | Gas flow rate | Ozone output | Power | Output gas tube | Fuse | Size | NW |
Model | LPM | G/Hr | W | mm | A | mm | Kg |
CH-BP3G | 10 | 3 | 70 | φ6 | 3 | 355×215×310 | 8.5 |
CH-BP5G | 5 | 80 | 8.6 | ||||
CH-BP6G |
15 | 6 | 100 | 8.7 | |||
CH-BP7G |
17 | 7 | 110 | 8.8 |
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
V
V 4. Various Applications of ozone:
1. Air purification, removing odors, smoke, mold, etc.
2. Water clean for home, commercial, industrial used.
3. ozone for drinking water treatment and bottling clean.
4. ozone for aquaculture water purification.
5. ozone for removing iron and manganese.
6. ozone for food storage, keep fruit, vegetable, products longer shelf life.
7. ozone for laundry system.
8. ozone for industrial polution control, removing odors, harmful gas.
9. ozone for food processing, factory, workshop clean.
10. ozone for milling.
11. ozone for fire or flood restoration.
12. ozone for agriculture
13. ozone for surface sanitation.
5. Features:
· Domestic , CE certification
· Ozone adjustable range: 20%-100%
· Two function for timer: 0-30 mins or working continuously
· Assembled with air pump switch, it can connected with outside oxygen feed
