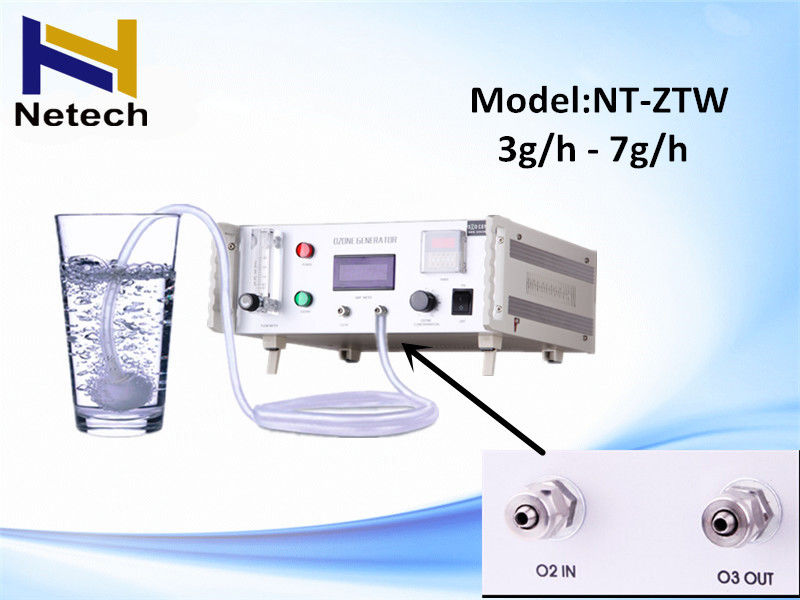

3G/H - 7G/H Laboratories Water Ozone Generator In Wastewater cleanion
Quick details:
Installation | Portable |
Capacity (CFM) | 98% |
MOQ | 1 set |
Net Weight | 5.15Kg |
Ozone Generator Timer | 0-99 hours |
Working Voltage | 110/220V 50hz/60hz |
warranty | 12months from purchasing date |
Ozone Generator Applications | dental clinic , lab , hospital , home , industrial |
other usage | operating rooms, tools clean , waste water treatment |
Operations:
1. Before use this machine,put it in a stable flat place which can hold its weight.
2. Use the power equipped with the machine and connect with the outside oxygen source;
3. The machine use for air purification,firstly attach the tube into the ozone outlet and then turn on the power;
4. Set the timer and then come out ozone, and put the tube into the room.
5. When use for room air purification, it requires nobody is present , after 30 minutes people can walk into the room.
6. If use for water treatment, the air stone should be attached into the silicone tube and put into the water.
7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.
Applications:
* Laboratory: Chemical oxidation for raw material of flavors and fragrances,small water treatment experiment
* Pharmaceutical industry: Water,air conditioner, workshop, dressing room, clean room etc
* : Ward,operating room, devices,clean room etc
Features:
Corona Discharge technology
Built in Domestic -Ceramic ozone tube with electric board
Feed outside oxygen source only with high ozone concentration
Ozone adjustable range: 20%-100%
Digital Timer : one or two recycle working time
Output : 3G/Hr, 5G/Hr, 6G/Hr, 7G/Hr.
Suitable used for the line which required high ozone concentration
Specifications:
Item | Oxygen flow rate | Ozone output | Power | Output gas tube | Fuse | Size | NW |
Model | LPM | G/Hr | W | mm | A | mm | Kg |
NT-ZTW 3G | 1-3 | 3 | 90 | φ6 | 3 | 360*370*150 | 8.2 |
NT-ZTW 5G | 1-3 | 5 | 100 | 8.3 | |||
NT-ZTW 6G | 2-5 | 6 | 120 | 8.4 | |||
NT-ZTW 7G | 2-5 | 7 | 130 | 8.5 |
Note:
Above ozone capacity were tested under oxygen source
Net weight will be 10% different for different plug.
