Air Water Cooling Ceramic Ozone Generator Spare Parts 7g/Hr To 50g/Hr

Air Water Cooling Ceramic Ozone Generator Spare Parts 7g/Hr To 50g/Hr

  • Air Water Cooling Ceramic Ozone Generator Spare Parts 7g/Hr To 50g/Hr
  • Air Water Cooling Ceramic Ozone Generator Spare Parts 7g/Hr To 50g/Hr
  • Air Water Cooling Ceramic Ozone Generator Spare Parts 7g/Hr To 50g/Hr
Air Water Cooling Ceramic Ozone Generator Spare Parts 7g/Hr To 50g/Hr
Product Details:
Place of Origin: China
Brand Name: Netech
Model Number: NT-PT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Safe double carton package with foam inside for protection
Delivery Time: 3 to 5 days
Payment Terms: paypal,western union,T/T,credit card
Supply Ability: 1000 per weeks
Contact Now
Detailed Product Description
Material: Ceramic Ourput: 7g 15g 30g 50g
Application: Assemble Ozone Generator For Water Treatment Voltage: 220V / 110V
Adjustable Range: 20%to 100% Ozone Concentration: 30~86 Mg/L
Cooling Way: Internal Water Cooled/ External Air Cooled Electric Board Type: Adjustable Or Module
Ozone Generator Parts Working Principle: Corona Discharge Warranty: 1 Year
MOQ: 1 Set
High Light:

ceramic ozone tube

,

ozone generator tube

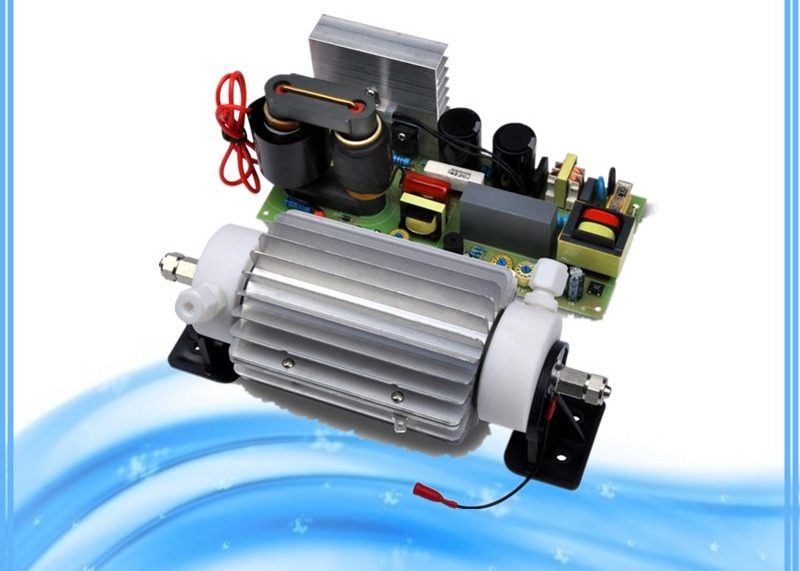

Air And Water Cooling 7g/Hr To 50g/Hr Ceramic Ozone Generator Spare Parts


Quick Detail
air and water cooling ceramic tube
1, Easy to maintain and install
2. air cooling ceramic tube
3, Low working voltag
4.Higher ozone concentration for water

Description
MOQ                                              1 sets
ozone produced medium                ceramic
output                                             7g 15g 30g 50g
cooling way                                    air and  water cooling
adjustable range                             20%-100%
ozone produced method                 corona discharge
voltage                                            220V/ 50Hz or 110V/60Hz
warranty                                          repair or change new parts during 12 months


Features:

1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
2. Domestic product -- got domestic in 2008.
A The internal electrode cooled by water, external electrode cooled by air (fan).
B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.
C High technology—the thickness of ceramic tube is only 1.70 mm.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It is 1/4 smaller than similar products with same capacity.
5. Easy to maintain and install

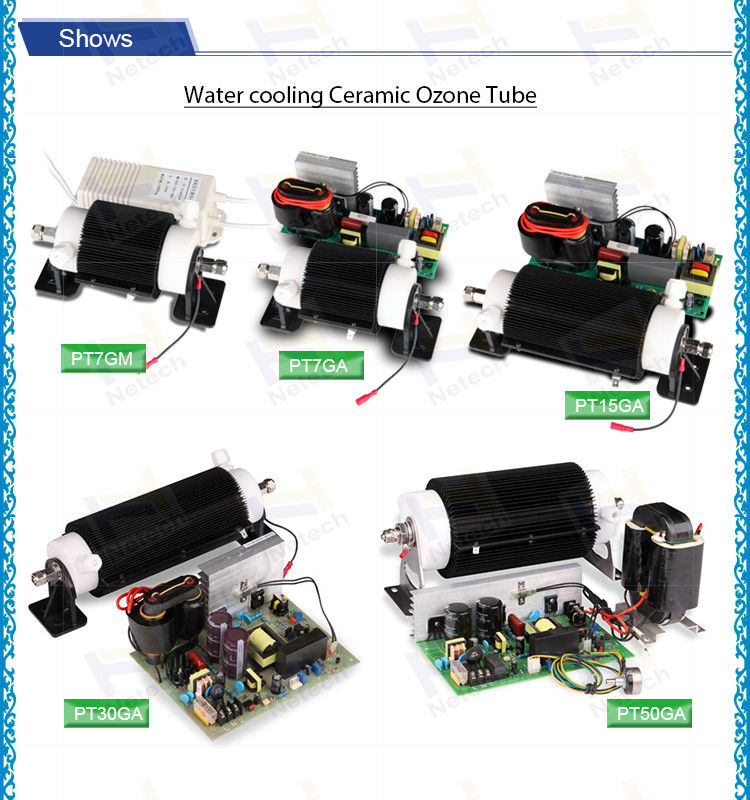

Specification


ItemUnitCH-PT
7GM7GA15GA30GA50GA
Ambient temperature°C2821.92226

Oxygen feed flow rateLPM1~33~57~915~18
Ozone concentrationMg/L70-4066.4~5362~5352~49
Ozone outputG/Hr4.2~7.211.9~15.926~28.646.8~52.9
Power (220V)W≤100≤100≤190≤300≤500
Cooling way Air cooling for external electrode,water cooling for internal electrode
Cooling water flow rateLPM>2
Diameter of cooling water pipemmED10
Temperature of cooling water°CAmbient temperature ±8°C
Diameter of cooling fanmm1pcs Dia.150 fan2pcs Dia.150 fan
Diameter of Gas inlet/outletmmED6ED8ED8ED8
Ozone output adjust range%/20-10020-100
Line power supplyV/Hz110/60 220/50
Ozone tube dimensionsmm200×100×105260×100×105340×160×125325×135×150
Power supply dimensionsmm177×66×53201×86×83212×90×95189×146×95210×146×62
weight of power supplyKG1.271.02.452.35
weight of ozone tubeKG0.911.351.94.3



Quality control

Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


After sales service

We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
