Adjustable Ozone Generator Parts 12V 24V 110V 220V Ceramic Tube For Air Water Purifier

Adjustable Ozone Generator Parts 12V 24V 110V 220V Ceramic Tube For Air Water Purifier

Adjustable Ozone Generator Parts 12V 24V 110V 220V Ceramic Tube For Air Water Purifier

Product Details:

Place of Origin: China(Guangzhou)
Brand Name: Netech
Model Number: NT-PTF-7GA

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 20-60/set
Packaging Details: Cartons
Payment Terms: D/P, L/C, D/A, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 300 sets/month
Contact Now
Detailed Product Description
Application: Air Water Treatment Voltage: 12V 24V 110V 220V
Output: 4.2-7 G/hr Cooling Way: Air Cooling
Adjustable: Yes Material: Ceramic

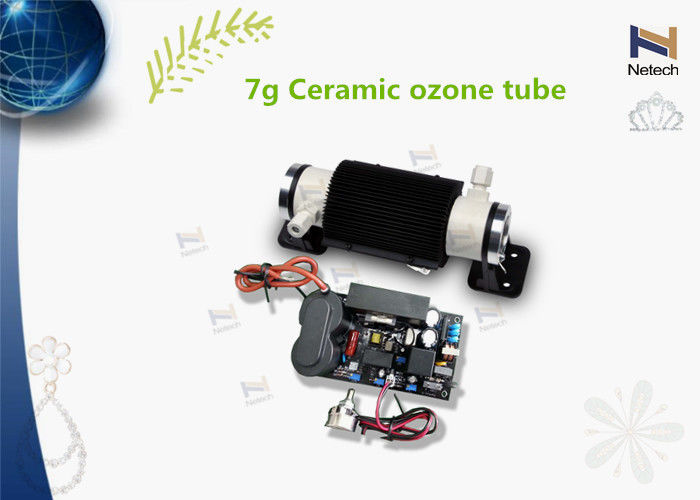

7g Ozone Generator Parts 12V 24V 110V 220V Ceramic Tube For Air Water Purifier



Some studies have shown that Ozone is effective in eradicating ethylene gas produced by some fruits during ripening, thus delaying the ripening process and extending the storage life of the produce held in the same storage area. The ozone tube is important part in ozone generator.



Netech carries a range of Ozone generators designed for this purpose, offering cost-efficient solutions to address the storage requirements and needs of small and large retailer.



Ozone Benefits:



Minimize the use of chemicals (except for pH balancing)

Destroys all types of micro-organisms instantly

Minimizes condenser fouling

Removes existing calcium carbonate scale by destroying the biomass glue bonding agent

Low maintenance costs

The most environmentally friendly oxidant

No persistent chemicals or cleanants in bleed - ozone breaks down to oxygen

Reduces the corrosion rate of metals, including copper heat exchangers

Saves on energy costs by increasing the heat transfer efficiency of the chiller



Advantage:



1.Extremely low rate of ozone decay & high ozone concentration.

2.Domestic product-got domestic in 2008.

3.Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.

4.Low working voltage

5.Small in size.

6.Easy to maintain and install



Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.





Specification:



Item Unit CH-PTF
3GA-1 (12V,24V) 3GA-1 (220V) 3GA-1 (110V) 5GA-1 (12V,24V) 5GA-1 (220V) 5GA-1 (110V)
Ambient temperature 21 21
Ambient humidity % 40 40
Power W(±10%) 50 55
Working frequency KHz (±10%) 15.9 16
Working voltage KV(±10%) 2.8 3
Oxygen feed flow rate LPM 0.5-1 0.5-2.5
Ozone concentration Mg/L 70-49 72-34
Ozone output G/Hr 2.1-2.9 2.2-5.1
Ozone output adjustable range % 20~100 20~100
Line power supply V/Hz 12V 24V 110/60 220/50
Cooling way / Air cooling
Cooling fan / 150
Diameter of cooling fan mm 120 120
Diameter of gas inlet/outlet mm EDФ6
Power supply dimensions mm 158*75*68 158*75*68
ozone tube dimensions mm 165*95*93 185*95*93
Ozone tube weight Kg 0.55 0.66
Power supply weight Kg 0.6 0.6


   CH-PTF6GA-1 ~7GA-1:


Item Unit CH-PTF
6GA-1 (12V,24V) 6GA-1 (220V) 6GA-1 (110V) 7GA-1 (12V,24V) 7GA-1 (220V) 7GA-1 (110V)
Ambient temperature 26 26
Ambient humidity % 49 49
Power W(±10%) 80 90
Working frequency KHz (±10%) 22.1 17.8
Working voltage KV(±10%) 2.7 2.6
Oxygen feed flow rate LPM 1~3 1~3
Ozone concentration Mg/L 63-34 71-39
Ozone output G/Hr 3.7-6.1 4.2-7
Ozone output adjustable range % 20~100 20~100
Line power supply V/Hz M:AC220V A:DC12V/DC24V/ AC220V/AC110V
Cooling way / Air cooling
Cooling fan / 150
Diameter of cooling fan mm 150
Diameter of gas inlet/outlet mm EDФ6
Power supply dimensions mm 158*75*68 158*75*68
ozone tube dimensions mm 200*95*93 212*95*93
Ozone tube weight Kg 0.75 0.82
Power supply weight Kg 0.6 0.6

Adjustable Ozone Generator Parts 12V 24V 110V 220V Ceramic Tube For Air Water Purifier
