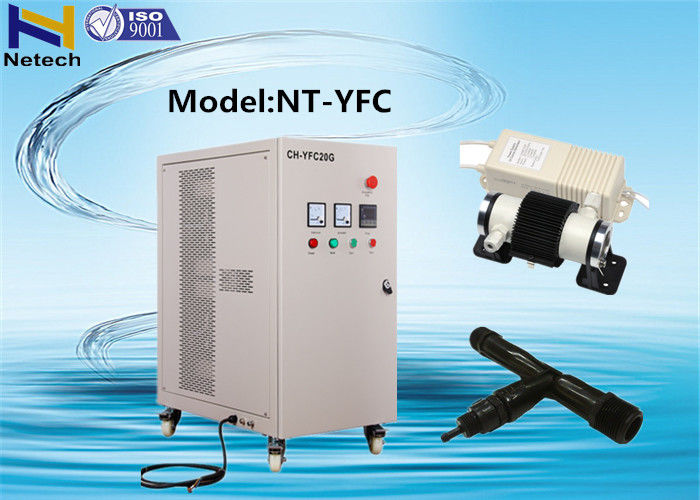

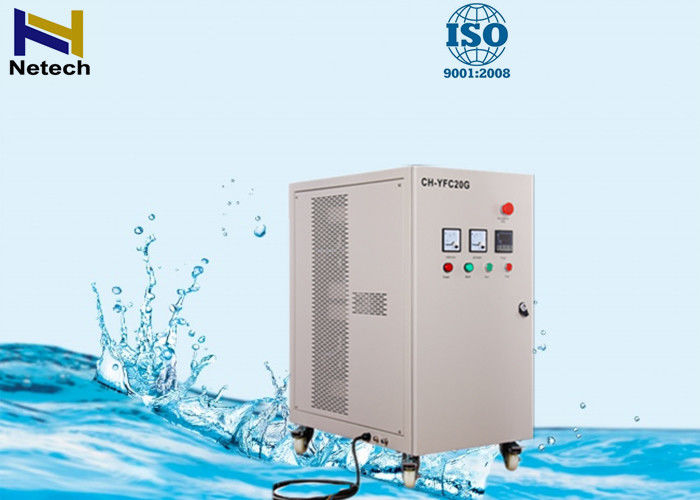

110V PSA Air Cooling Ozone Generator Wastewater Treatment Purification
Wastewater is highly contaminated and dirty. One way to treat it before it can be safely released back to the environment is the use of Ozone. Ozone is destroying harmful pathogens in wastewater, as well as eliminate colors and odors without leaving byproducts or residue that can be detrimental to the environment.
Quick details:
Model Number: NT - YFC
Certification: domestic
Ozone output way: air cooling
Warranty: one year warranty
Adjustable rate: 20% -100% adjustable ozone
Benefits:
More powerful and effective than chlorine in destroying viruses and bacteria
Utilizes short contact time
Zero residuals that need to be removed after ozonation
Prevents regrowth of microorganisms except for those protected by the particulates in the wastewater stream
How to use ?
1. Before use this machine, put it in a stable flat place which can hold its weight.
2. Use the power equipped with the machine;
3. The machine use for air purification, firstly attach the silicone tube into the ozone outlet and then turn on the power;
4. Set the timer and then come out ozone, and put the tube into the room.
5. When use for room air purification, it requires nobody is present , after 30 minutes people can walk into the room.
6. If use for water treatment, the air stone should be attached into the silicone tube and put into the water.
7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.
Features:
1. Carbon steel sprayed with plastic housing;
2. Built-in PSA high purity twelve tower oxygen sieve;
3. Built-in of product - Air cooling Ceramic ozone tube with high frequency electric board, high ozone concentration and stable ozone capacity, long life time;
4. Built-in Oil-free air compressor;
5. Built-in Air dryer and filters. To supply cool, dry, clean air source for air compressor and PSA oxygen concentrator;
6. Manual control, easy operation and maintenance.
Specifications
| Item | Unit | NT-YFC5G | NT-YFC10G | NT-YFC15G | NT-YFC20G | 30NT-YFC30G |
| Oxygen flow rate | LPM | 3 | 3.5 | 5 | 8 | 10 |
| Ozone concentration | Mg/L | 48.5~52.3 | 48.5~52.3 | 49.5~51.2 | 38.9~41.7 | 53.2~56.1 |
| Ozone output | G/Hr | 5 | 10~11 | 14.8~15.4 | 18.6~20 | 32~34 |
| Power | KW | ≤0.48 | ≤0.81 | ≤0.924 | ≤1.00 | ≤1.23 |
| Current | A | 2.2 | 3.6 | 4.2 | 4.5~4.7 | 5.6±5% |
| Voltage | V | 220V/50HZ | ||||
| NW | KG | 64 | 86 | 89 | 92 | 97 |
| Size | cm | 45x50x84 | 50×66×95 | 45*93*118 | ||
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
QUALITY CONTROL
In order to ensure the best quality , every ozone generator has been strictly tested before delivery.
We promise the good performance and all parts completely
according to your needs
