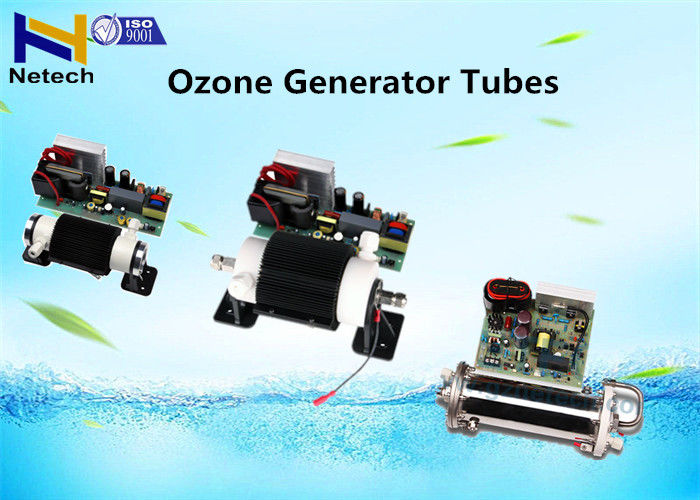

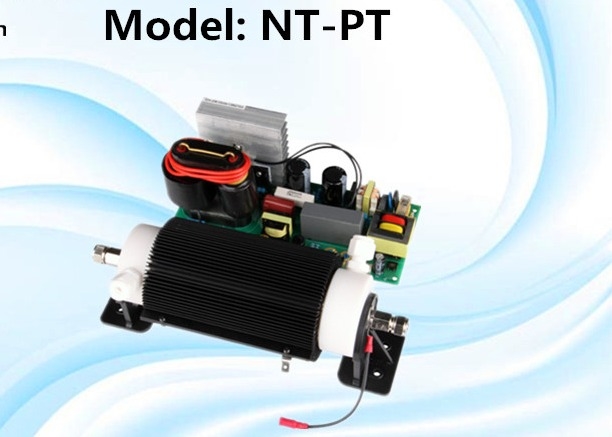

Ceramic Ozone Generator Parts With Power Panel 30g 50g Corona Discharge 110V
Quick Detail
ozone produced medium | ceramic |
MOQ | 1 set |
Ozone output | 7g 15g 30g 50g |
adjustable range | 20%-100% |
voltage | 220V/ 50Hz or 110V/60Hz |
Features:
1. Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
2. Domestic product
A The internal electrode cooled by water, external electrode cooled by air (fan).
B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.
C High technology—the thickness of ceramic tube is only 1.70 mm.
3. The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. It is 1/4 smaller than similar products with same capacity.
Specification:

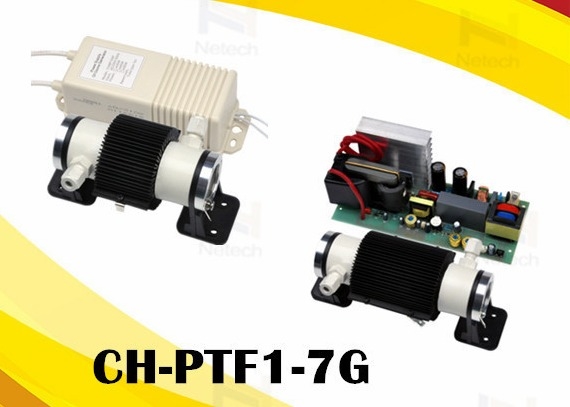

Item | Unit | CH-PT | ||||
7GM | 7GA | 15GA | 30GA | 50GA | ||
Ambient temperature | °C | 28 | 21.9 | 22 | 26 | |
Oxygen feed flow rate | LPM | 1~3 | 3~5 | 7~9 | 15~18 | |
Ozone concentration | Mg/L | 70-40 | 66.4~53 | 62~53 | 52~49 | |
Ozone output | G/Hr | 4.2~7.2 | 11.9~15.9 | 26~28.6 | 46.8~52.9 | |
Power (220V) | W | ≤100 | ≤100 | ≤190 | ≤300 | ≤500 |
Cooling way | Air cooling for external electrode,water cooling for internal electrode | |||||
Cooling water flow rate | LPM | >2 | ||||
Diameter of cooling water pipe | mm | ED10 | ||||
Temperature of cooling water | °C | Ambient temperature ±8°C | ||||
Diameter of cooling fan | mm | 1pcs Dia.150 fan | 2pcs Dia.150 fan | |||
Diameter of Gas inlet/outlet | mm | ED6 | ED8 | ED8 | ED8 | |
Ozone output adjust range | % | / | 20-100 | 20-100 | ||
Line power supply | V/Hz | 110/60 220/50 | ||||
Ozone tube dimensions | mm | 200×100×105 | 260×100×105 | 340×160×125 | 325×135×150 | |
Power supply dimensions | mm | 177×66×53 | 201×86×83 | 212×90×95 | 189×146×95 | 210×146×62 |
weight of power supply | KG | 1.27 | 1.0 | 2.45 | 2.35 | |
weight of ozone tube | KG | 0.91 | 1.35 | 1.9 | 4.3 |
Ozone bas several significant advantages over its chemical alternatives:
Ozone can be generated on-site.
Ozone is one of the most active, readily available oxidizing agents.
Ozone rapidly decomposes to oxygen leaving no traces.
Reactions do not produce toxic halogenated compounds.
Ozone acts more rapidly, and more completely than other common cleaning agents do.
Ozone reacts swiftly and effectively on all strains of viruses.
What we do?
We are OEM and ODM manufactory,which has passed ISO certification.
We own our core technology, large sales teams, strong R&D team and standardized production workshop.
Have strong competitive advantages on quality and price.
Our R & D team always leads ozone technical reform and innovation.
Our markets extend to all over the world.
