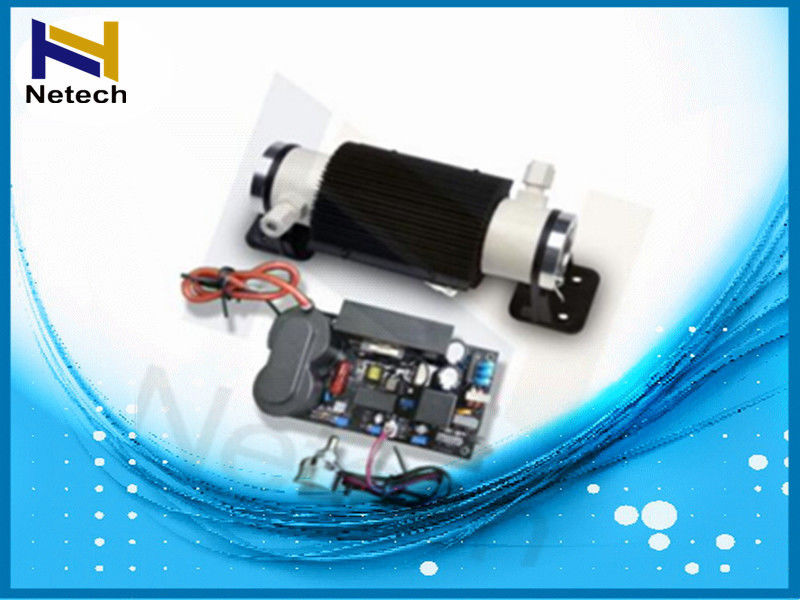

3g to 7g air cooling ozone generator parts ozone ceramic tube with power board
Detailed Product Description
| Ambient temperature | 21 | Oxygen feed flow rate | 0.5-1 |
| Cooling Mode: | Air Cooling | Ozone output | 4.2-7.2 |
| Ambient humidity | 40 | IPower supply weight | 0.76 |
| Power | ≤80 | ozone tube dimensions | 165×90*90 |
Quick Detail
1, Easy to maintain and install
2. air cooling ceramic .
3, Low working voltage
4. high concentration
5.Adjustable range 20% to 100%
Description
| MOQ 1 sets |
| ozone produced medium ceramic |
| output 1g 3g 5g 6g 7g |
| cooling way air cooling |
| adjustable range 20%-100% |
| ozone produced method corona discharge |
| voltage 220V/ 50Hz or 110V/60Hz |
| warranty repair or change new parts during 12 months |
Features
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
It saves space effectively. The size is 1/4 smaller than similar products.
CH-PTF3G-1 ~5G-1
| Item | Unit | CH-PTF | |||||
| 3G-1 (12V,24V) | 3G-1 (220V) | 3G-1 (110V) | 5G-1 (12V,24V) | 5G-1 (220V) | 5G-1 (110V) | ||
| Ambient temperature | ℃ | 21 | 21 | ||||
| Ambient humidity | % | 40 | 40 | ||||
| Power | W | ≤80 | ≤80 | ||||
| Oxygen feed flow rate | LPM | 0.5-1 | 0.5-2 | ||||
| Ozone concentration | Mg/L | 81.6-49.2 | 72~48 | ||||
| Ozone output | G/Hr | 2.4-2.95 | 2.16~4.76 | ||||
| Ozone output adjustable range | % | 20~100 | 20~100 | ||||
| Line power supply | V/Hz | 12V 24V 110/60 220/50 | |||||
| Cooling way | / | Air cooling | |||||
| Diameter of cooling fan | mm | 120 | 120 | ||||
| Diameter of gas inlet/outlet | mm | EDФ6 | |||||
| Power supply dimensions | mm | 158*75*68 | 158*75*68 | ||||
| ozone tube dimensions | mm | 165×90*90 | 185*90*90 | ||||
| Ozone tube weight | Kg | 0.5 | 0.53 | ||||
| Power supply weight | Kg | 0.52 | 0.52 | ||||
CH-PTF6G-1 ~7G-1
| Item | Unit | CH-PTF | ||||||
| 6G-1 (12V,24V) | 6G-1 (220V) | 6G-1 (110V) | 7G-1 (12V,24V) | 7G-1 (220V) | 7G-1 (110V) | |||
| Ambient temperature | ℃ | 26 | 26 | |||||
| Ambient humidity | % | 49 | 49 | |||||
| Power | W | ≤85 | ≤95 | |||||
| Oxygen feed flow rate | LPM | 1~3 | 1~3 | |||||
| Ozone concentration | Mg/L | 64.6~36.7 | 70~41.2 | |||||
| Ozone output | G/Hr | 3.9~6.6 | 4.20~7.4 | |||||
| Ozone output adjustable range | % | 20~100 | 20~100 | |||||
| Line power supply | V/Hz | 12V 24V 110/60 220/50 | ||||||
| Cooling way | / | Air cooling | ||||||
| Diameter of cooling fan | mm | 150 | ||||||
| Diameter of gas inlet/outlet | mm | EDФ6 | ||||||
| Power supply dimensions | mm | 158*75*68 | 158*75*68 | |||||
| ozone tube dimensions | mm | 200*90*90 | 212*90*90 | |||||
| Ozone tube weight | Kg | 0.56 | 0.65 | |||||
| Power supply weight | Kg | 0.52 | 0.52 | |||||
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
| MOQ | 1 Set/Sets |
| FOB Price: | USD 200-900 / Set |
| Port | guangzhou |
| Payment | L/C D/A D/P T/T Western Union MoneyGram |
| others | credit card/ paypal |
| Supply ability | 5000 Set/Sets / Month |
| Packing | Safe double carton package with foam inside for protection |
| Delivery date | 1-7 working days after received your payment |
Our products are sold all over the world, you can rest assured.
