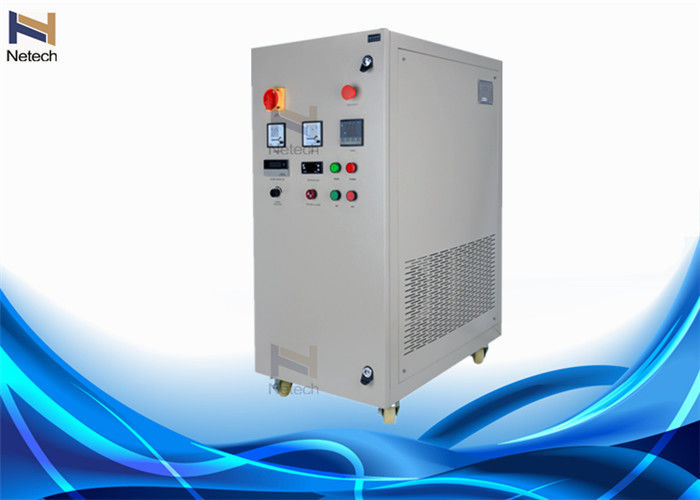

Ozone Water Purifier / Ozone Generator For Drinking Water Treatment 40 - 200g
Place of Origin | Guangdong China |
---|---|
Brand Name | Netech |
Model Number | CH-Y |
Minimum Order Quantity | 1 set |
Price | for further discussion |
Packaging Details | Safe double carton package with foam inside for protection |
Delivery Time | 5-10 days after payment confirmed |
Payment Terms | L/C, T/T, Western Union, D/P, D/A |
Supply Ability | 1000 sets per month |
Ozone Output | 40g/h 50g/h 100g/h,150g/h,200g/h | Core Parts | Ozone Tube |
---|---|---|---|
Application | Air Purification Or Water Treatment | MOQ | 1 Set |
Warrany | 12 Months | Cooling Way | Water Cooling |
Working Principle | Corona Discharge | Gas Feed | Buit-in Oxygen Concentrator |
High Light | ozonator for drinking water,water ozone machine |
Ozone Water Purifier Food processing Drinking Processing Water Treatment 40-200g
Quick details:
Gas source | Oxygen feed | ||
Ozone output way | corona discharge | ||
Core parts | Enamel ozone tube | ||
Cooling method | Water cooling | ||
Power supply | 220V , 50HZ | ||
Adjustable rate | 20%-100% | ||
Ozone output |
40g 50g 60g 80g 100g 150g 200g |
Features:
1. Built-in oxygen system, carbon steel sprayed complete ozone generator
2. Built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration:
3. Adjustable ozone: 20%--100%, it can working automatic
4. Compact assembly,Movable with Wheels
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Specifications:
Item | Unit | NT-Y40G | NT-Y50G | NT-Y60G | NT-Y100G |
Oxygen flow rate | LPM | 5~15 | 8~18 | 20 | 16-32 |
Ozone concentration | Mg/L | 90~56 | 90~60 | 55-59 | 90~58 |
Ozone output | G/Hr | 27~50 | 43~64 | 66-70.8 | 86~111 |
Power | Kw | ≤1.62 | ≤1.85 | ≤2.80 | 3.5 |
Fuse | A | 15 | 20 | 20 | 20 |
Cooling water flow | LPM | 48 | |||
Size | cm | 65*103*124 | 60*85*131 | 67*110*136 |
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
Ozone cleanr Functions:
1. clean: destroy variety of bacteria & viruses efficiently without secondary pollution.
2. Detoxification: effectively remove the residual pesticides from vegetables and fruits.
3. Deodorization: eliminate mould, smoke etc.
4. Oxygen increasing: improve the oxygen level for air and water.
5. Health: air purification, expedite human metabolism.
6. Air purify for room, such as house, hotel, Karaoke, club, public house, Internet bar, game center, bus station, supermarket, office buildings.
7. clean and clean for food, such as vegetable and fruit.
8. Water Purifying.
9.It is environment-friendly advanced digital product without secondary pollutant
What is the Principle about ozone cleanr ?
1.The product generate ozone gas with strong oxidation,catalytic action. Virus and bacteria in the ozone gas due to the multiple roles of free radicals,the protein dissociation degeneration, nucleic acid and enzyme activity decreased.Thus, has the cleanion and clean, odor removal effect.
2.Ozone is broad-spectrum clean, on various bacteria and virus has strong killing effect.
3.Ozone together with carbon dioxide,formaldehyde, xylene and other toxic gas can occur degradation, oxidation and other complex physical and chemical reaction, and the by product is non-toxic harmless, can avoid the two pollution.
