110/220V 60/50Hz Corona Discharge Enamel Ozone Tube External Water Cooling 18g/h
Quick Detail

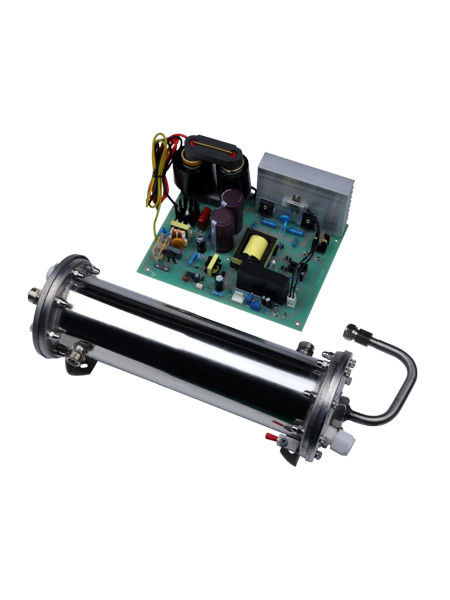

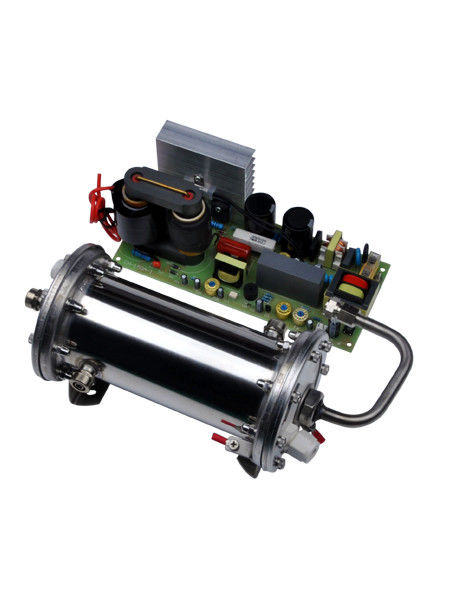

ozone generator parts
1. concentration up to 90%
2. 20%-100% adjustable range
3. water cooling
4. high efficiency
Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.
Cooling way
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
Adjustable ozone output: 20-100%:
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
Specification:
|
Item |
Unit |
CH-PC18G |
CH-PC30G |
CH-PC40G |
CH-PC60G |
CH-PC80G |
|
Ambient temperature |
℃ |
23 |
23 |
23.9 |
23.9 |
24 |
|
Ambient humidity |
% |
38 |
38 |
37 |
||
|
Oxygen flow rate |
LPM |
1~4 |
2~8 |
3~10 |
5~17 |
8~20 |
|
Ozone concentration |
Mg/L |
112~78 |
123~72 |
123~70 |
120-72 |
118-74 |
|
Ozone output |
G/Hr |
6.7-18.7 |
14.8~34.6 |
22.1-42 |
36-73 |
56-88 |
|
Power |
Kw |
≤0.22 |
≤0.3 |
≤0.4 |
≤0.6 |
≤0.8 |
|
Cooling method |
Water cooling for internal & external electrodes |
|||||
|
Cooling water flow rate |
LPM |
≥2 |
||||
|
Cooling water temperature |
℃ |
ambient temperature ± 8℃ |
||||
|
Diameter of gas inlet/outlet |
mm |
1.Air inlet & ozone outlet: EDφ8mm |
||||
|
Diameter of water inlet/outlet |
|
EDφ10mm |
||||
|
Adjustable range |
% |
20-100 |
||||
|
Power supply |
V/Hz |
110/220V 60/50HZ |
||||
|
Fuse |
A |
3 |
5 |
10 |
||
|
Ozone tube dimension |
mm |
285*160*125 |
340*160*125 |
460*160*125 |
600*160*125 |
705*160*125 |
|
Power supply dimension |
mm |
212*90*95 |
189*146*95 |
210*146*62 |
||
|
Ozone tube weight |
Kg |
2.5 |
3 |
3.6 |
4.9 |
5.45 |
|
Power supply weight |
Kg |
1 |
2.4 |
|||
Domestic : ZL 2010 3 0170329.5
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Our products are sold all over the world, you can rest assured.
