Food Ozone Generator Parts / Ozone Ceramic Tube With Power 110V Output 1G 3G 5G 6G 7G

Food Ozone Generator Parts / Ozone Ceramic Tube With Power 110V Output 1G 3G 5G 6G 7G

  • High Light

    ozone accessories


    ceramic ozone tube

  • Output
    1g 3g 5g 6g 7g
  • Adjustable Range
  • Cooling Way
    Air Cooling
  • Voltage (V)
    110v Or 220v
  • Ozone Generating
    Corona Discharge
  • Warranty
    12 Months
  • MOQ
    1 Set
  • Material
    Ceramic Tube
  • Place of Origin
    Guangdong China
  • Brand Name
  • Model Number
    CH - PTF
  • Minimum Order Quantity
    1 set
  • Price
    For further discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    2-3 days after payment confirmed
  • Payment Terms
    L/C D/A D/P T/T Western Union Credit Card/ Paypal
  • Supply Ability
    2000 sets per month

Food Ozone Generator Parts / Ozone Ceramic Tube With Power 110V Output 1G 3G 5G 6G 7G

Ozone Ceramic Tube With Power 220V/110V Output 1G 3G 5G 6G 7G

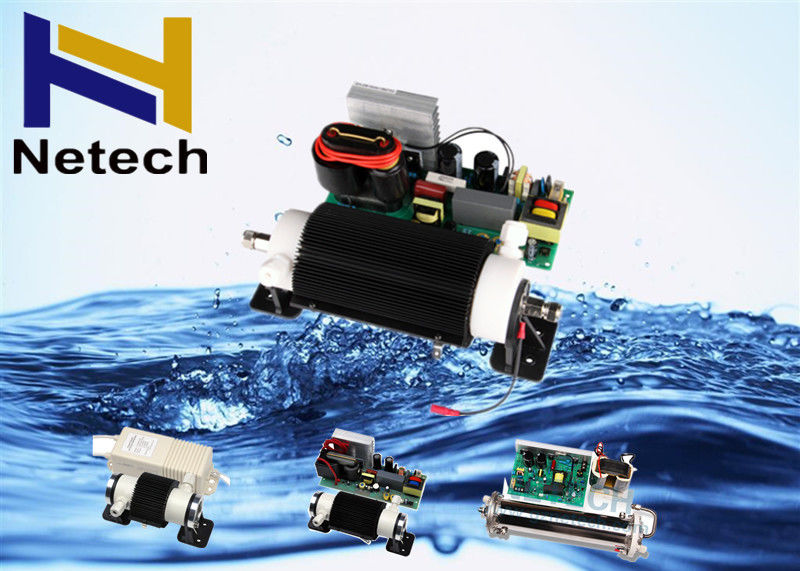

CH-PTF Ozone tube use imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.
1.Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2.Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3.Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. More details,please contact with us!
                                                            CH-PTF3GA-1 ~5GA-1

Item Unit CH-PTF
3GA-1 (12V,24V) 3GA-1 (220V) 3GA-1 (110V) 5GA-1 (12V,24V) 5GA-1 (220V) 5GA-1 (110V)
Ambient temperature 21 21
Ambient humidity % 40 40
Power W(±10%) 50 55
Working frequency KHz (±10%) 15.9 16
Working voltage KV(±10%) 2.8 3
Oxygen feed flow rate LPM 0.5-1 0.5-2.5
Ozone concentration Mg/L 70-49 72-34
Ozone output G/Hr 2.1-2.9 2.2-5.1
Ozone output adjustable range % 20~100 20~100
Line power supply V/Hz 12V 24V 110/60 220/50
Cooling way / Air cooling
Cooling fan / 150
Diameter of cooling fan mm 120 120
Diameter of gas inlet/outlet mm EDФ6
Power supply dimensions mm 158*75*68 158*75*68
ozone tube dimensions mm 165*95*93 185*95*93
Ozone tube weight Kg 0.55 0.66
Power supply weight Kg 0.6 0.6
Main function of ozone:

1. Food purification; To decompose the residual chemical fertilizer, pesticides and other toxic substances in fruits, vegetables and foodstuff; Remove the antibiotics, chemical additives, hormones and other harmful substances in the meat, eggs, kill Halophilic bacteria in the seafood;
2. Drinking water purification: The tap water after ozone treating is a kind of high quality drinking water; Injecting ozone gas in every 1 liter tap water for 2 minutes, can to remove the residual chlorine, taste and heavy metals in water, and up to the level of clean and cleanion. To prevent the formation of trichloromethane (CHCl3), increase the oxygen content in the water to be the ideal of pure drinking water.
3. cleanion and clean for dining utensils; Put the washed dining utensils into the ozonated water for 20 minutes to remove residual detergent. To kill Bacteria and virus to instead of the normal cleanion cabinet; avoiding the utensils of infectious diseases, also be used for cleanion for clothing, towels, rags and socks.
4. Air purification: Hang the ozone exhaust pipe 1.7 meters above, keeping the ozone emission 20--30 minutes to remove indoor smoke and dust, decoration odour. Increase the oxygen content in the air, clean air. Let you enjoy the fresh at home like the air after the rain in forest (applied family, office, conference rooms, entertainment and others public place for smoke or dust or taste removal and cleanion);
5. Fruits and vegetables fresh keeping, mildew proof: inject the ozone gas in the bag of fruits or vegetables for 2 hours, can extand the freshness date 7 days. And also cab be used for mildew proof of vegetable cellar, fruit and vegetable transportation.
At present in the world, pure water, natural water (mountain spring water, mineral water, groundwater is filtered and other steps), has been widely adopted ozone gas for cleanion. In tap water purification, the international standard for 0.4mg/L dissolve
