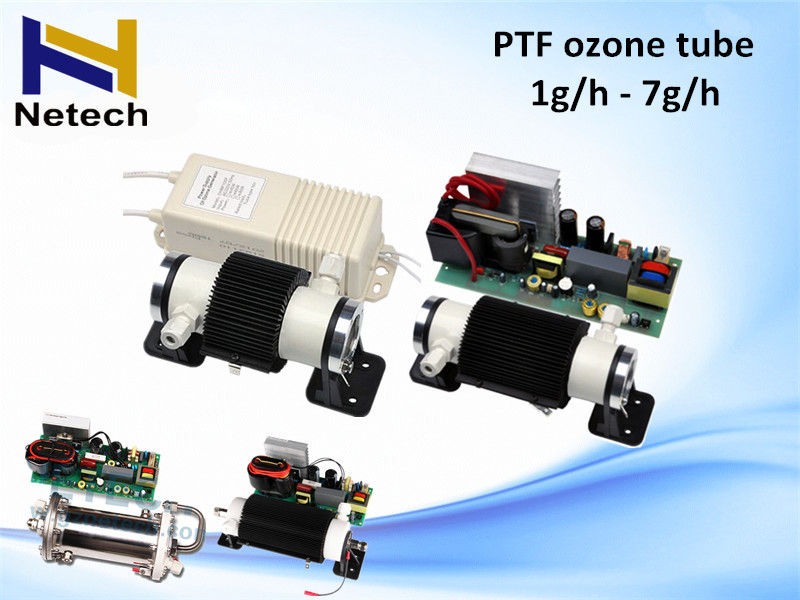

Air Cooled Ozone Generator Parts Ozone Tube / Cell 7g/hr 12V 110V 220V

Place of Origin China(Guangzhou)
Brand Name Netech
Model Number CH-PTF
Minimum Order Quantity 1 set
Price USD 20-60/set
Packaging Details Cartons
Delivery Time 5-8 working days
Payment Terms D/P, L/C, D/A, T/T, Western Union, MoneyGram,Paypal
Supply Ability 300 sets/month
Product Details
Products Name Ozone Generator Tube Cooling Way Air Cooling
Ozone Output 1-7g/hgr Material Ceramic Tube
Voltage 110V60Hz / 220V50Hz Warranty 12 Months
High Light

ozone accessories

,

ozone generator tube

Leave a Message
Product Description

           Air Cooled Ozone Cell Ozone Generator Parts Ozone Tube 7g/hr With12V 110V 220V

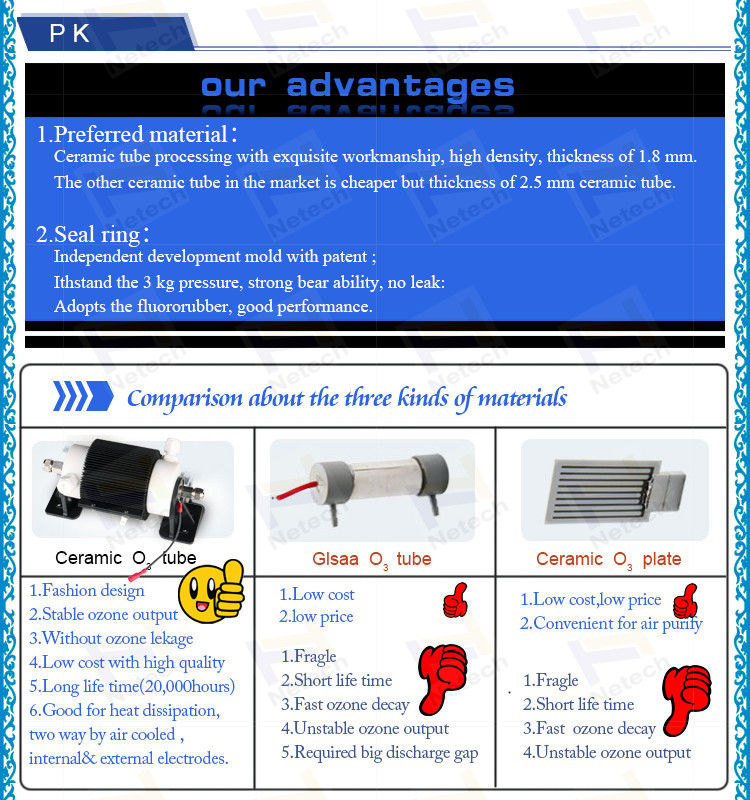

Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.

Competitive price with good quality,Cost-effective.

Features:

    1. Extremely low rate of ozone decay & high ozone concentration.
        Ozone concentration can be around 30~86 Mg/L, which is much higher than           conventional products.

    2. Domestic product-got domestic in 2008.
         Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.

    3. Low working voltage
       The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

    4. Small in size.
       It saves space effectively. The size is 1/4 smaller than similar products.

     5. Easy to maintain and install


Specification:



Item

Unit

CH-PTF

1G                 (12V)

1G              (220V)

1G                (110V)

3GM

3GA

Ambient temperature

21.6

25

23.6

21

Ambient humidity

%

40

50

21.6

40

Power

W

≤14.4

≤15

≤15

≤50

≤80

Oxygen feed flow rate

LPM

0.3~0.5

0.3~1

0.3~1

0.5-1

Ozone concentration

Mg/L

49~40

49~30

49~30

81.6-49.2

Ozone output

G/Hr

0.88~1.2

0.88~1.8

2.4-2.95

Ozone output adjustable range

%

/

/

20~100

Line power supply

V/Hz

110/60    220/50

Cooling way

/

Air cooling

Diameter of cooling fan

mm

50*50

50*50

50*50

120

Diameter of gas inlet/outlet

mm

EDФ6

Power supply dimensions

mm

105*57*50

96*47*32

96*47*32

153×60×53

201×86×83

ozone tube dimensions

mm

125*50*50

165×90*90

Ozone tube weight

Kg

0.2

0.5

Power supply weight

Kg

0.15

0.59

0.76




What we do?


We Provide high-quality ozone generator for : Ozone generator wholesalers

Retailers and online shops


OEM-The custom-made ozone generator are available. Upon customer's idea,

drawings, photos etc.


ODM-The modification of the ozone generator after customer's selection is

accepted.



Excellent after-sales service:


1 year warranty again the manufacture defect, offer
