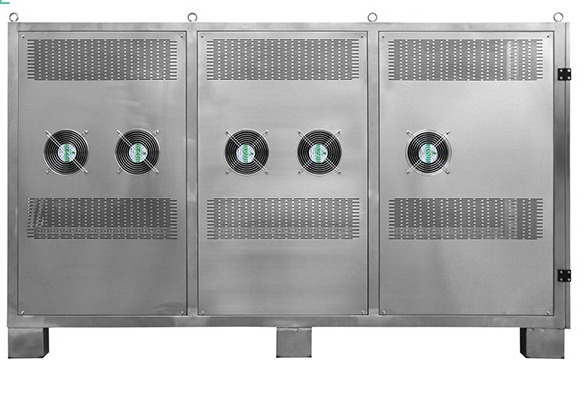

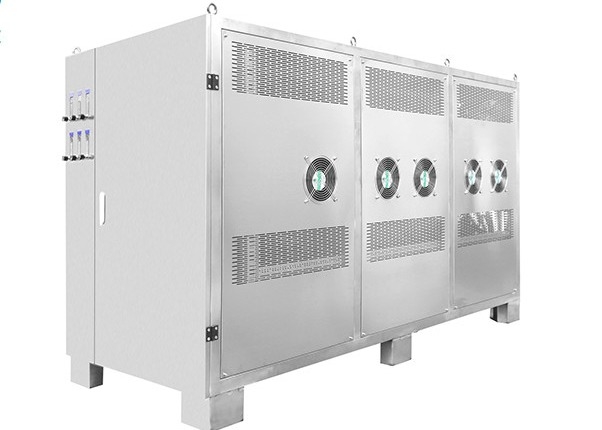

Compact Structure Water Ozone Generator For Air Purification 60-120Mg/L

Compact Structure Water Ozone Generator For Air Purification 60-120Mg/L

    • Compact Structure Water Ozone Generator For Air Purification 60-120Mg/L
    • Compact Structure Water Ozone Generator For Air Purification 60-120Mg/L
  • Compact Structure Water Ozone Generator For Air Purification 60-120Mg/L

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Netech
    Model Number: CH-Y100G

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 5-10 days after payment confirmed
    Payment Terms: L/C, T/T, Western Union, D/P, D/A
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Ozone Output: 100g/h Oxygen Flow: 30L/min
    Ozone Concentration: 60-120Mg/L Warrany: 12 Months
    Power: 4.18KW Cooling Way: Water Cooling
    Voltage: 220 50/60V/ Hz Usage: Water And Air Purification,swimming Pool Water Treatment,etc

    Compact Structure Water Ozone Generator For Air Purification 60-120Mg/L



    Features:



    1, Built-in oxygen system, nano molecular sieves technology, purity can up to 90%;

    2, Water cooling enamel ozone generator, high frequency power supplier, ozone concentration up to100mg/L, stable ozone output capacity, long working life;

    3, Suitable for poor working environment, long service life and trouble-free operation.

    4, Compact structure, small space occupation, the machine can move or free standing according to the actual working condition.

    5, Ozone concentration adjustable range 20-100%; High degree of automation; Easy operation; Unattended operation.

    6, Equipment has water anti-back function, it can prevent the water return from outlet pipe to damage the tube.

    7, Power on and off delay function, to ensure that the device cooling and remove residual ozone

    8, Adopt multiple warning protection devices such as the over-current, over-voltage, lack of water protection and cooling water temperature monitor, to ensure the equipment operates safely



    Component part:



    ozone machine shell Stainless steel 304 shell, anti-ozone corrosion
    Gas supply system Oil-free air compressor
    Gas treatment system refrigerated dryer
    Oxygen generator system Nano-molecular sieve oxygen unit
    Ozone generator unit Double water-cooled ozone generating tube is a patented product developed by our company. The inner electrode use enamel coating and the external electrode use stainless steel. The enamel tube has stronger impact resistance than glass and ceramic materials, and the use of insulating materials to prevent leakage.
    Ozone dedicated power supply High-frequency inverter circuit, IGBT power component, 8-12KHZ operating frequency, High-frequency booster transformer, 3-5KV working voltage, Ferrite magnetic core, High-temperature multi-strand high-frequency Coil wire
    Cooling system Water cooling way
    Gas circuit Inlet and outlet lines are made of Teflon material
    Instruments and accessories Ozone output adjuster, Voltmeter, Ammeter, Microcomputer Controller, Cooling water temperature meter, Ozone cell operating ammeter, Power switch, Main power switch, Work switch, Emergency stop switch, Work instructions, Power instructions, Fault alarm indication



    Parameters:



    Items Oxygen flow Ozone concentration Ozone output power Cooling way voltage size weight
    Models L/min Mg/L g/h Kw / V/ Hz mm kg
    CH-Y100G 30 60-120 100 4.18 Water cooling

    220

    50/60

    670×1140×1370 223
    CH-Y150G 40 150 7.04 900×1400×1380
    CH-Y200G 60 200 7.92 900×1760×1380
    CH-Y300G 90 300 11.77 900×2310×1380


    Details



    Compact Structure Water Ozone Generator For Air Purification 60-120Mg/L
