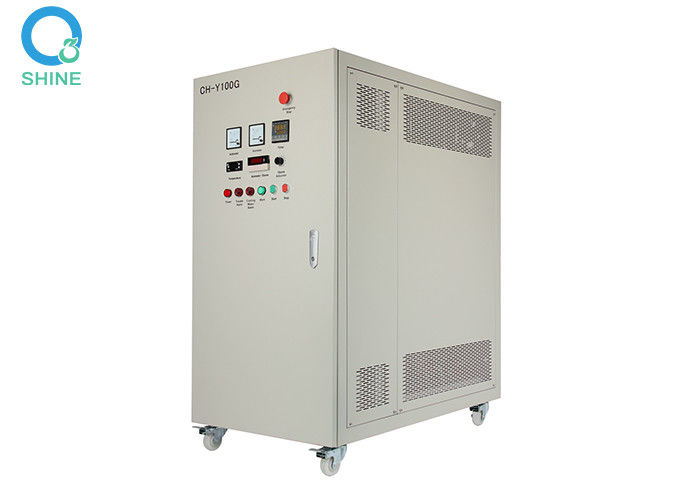

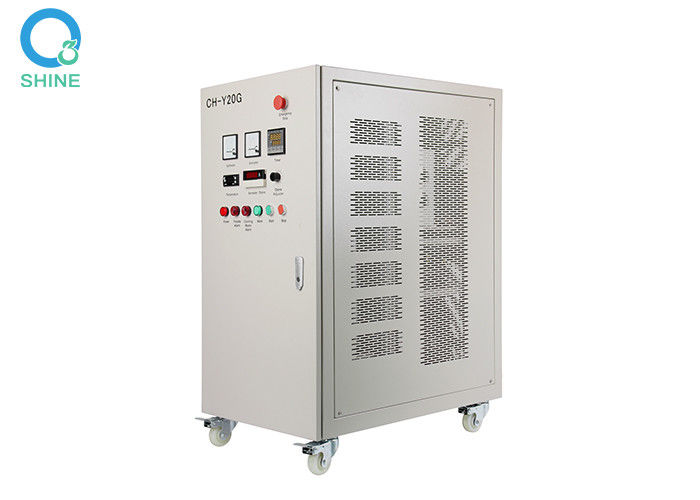

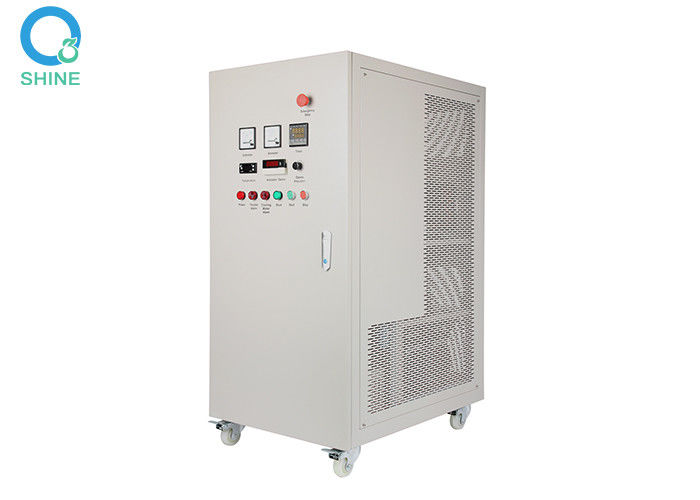

Movable Large Ozone Generator With SS Housing 20%--100% Adjustable Ozone Range

Movable Large Ozone Generator With SS Housing 20%--100% Adjustable Ozone Range

Products - Industrial Ozone Generator
  • High Light

    longevity ozone generators

    ,

    high concentration ozone generator

  • Name
    Large Ozone Generator
  • LPM
    48LPM
  • Material
    Ozone Enamel Tube
  • Adjustable Ozone Range
    20%--100%
  • Application
    Water Treatment
  • Warranty
    1 Year
  • Place of Origin
    Guangdong China
  • Brand Name
    OZOCENTER
  • Certification
    CE/ISO/PATENT
  • Model Number
    CH-Y
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    40 days after payment confirmed
  • Payment Terms
    EXW / FOB / CIF
  • Supply Ability
    100 sets per month

Movable Large Ozone Generator With SS Housing 20%--100% Adjustable Ozone Range

  • Movable Large Ozone Generator With SS Housing 20%--100% Adjustable Ozone Range
  • Movable Large Ozone Generator With SS Housing 20%--100% Adjustable Ozone Range
  • Movable Large Ozone Generator With SS Housing 20%--100% Adjustable Ozone Range
  • Movable Large Ozone Generator With SS Housing 20%--100% Adjustable Ozone Range
Get Price Contact Now

Movable Large Ozone Generator With SS Housing 20%--100% Adjustable Ozone Range:



Large Ozone Generator  Features:



1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator

2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time

3. Adjustable ozone range: 20%--100%, it can working automatic

4. Compact assembly,Movable with Wheels

5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety

Control panel:

Ozone output adjuster, Voltmeter, Ampmeter, Timer, Cooling water temperature indicator, Ozone Ampmeter, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm



Large Ozone Generator Specifications



Item Unit CH-Y40G CH -Y50G CH -Y60G CH -Y100G
Oxygen flow rate LPM 5~15 8~18 20 16-32
Ozone concentration Mg/L 90~56 90~60 55-59 90~58
Ozone output G/Hr 27~50 43~64 66-70.8 86~111
Power Kw ≤1.62 ≤1.85 ≤2.80 3.5
Fuse A 15 20 20 20
Cooling water flow LPM 48
Size cm 65*103*124 60*85*131 67*110*136


Noted:

1. Above ozone capacity were tested under oxygen source 2. Net weight will be 10% different for different plug

Movable Large Ozone Generator With SS Housing 20%--100% Adjustable Ozone Range 0

Movable Large Ozone Generator With SS Housing 20%--100% Adjustable Ozone Range 1
