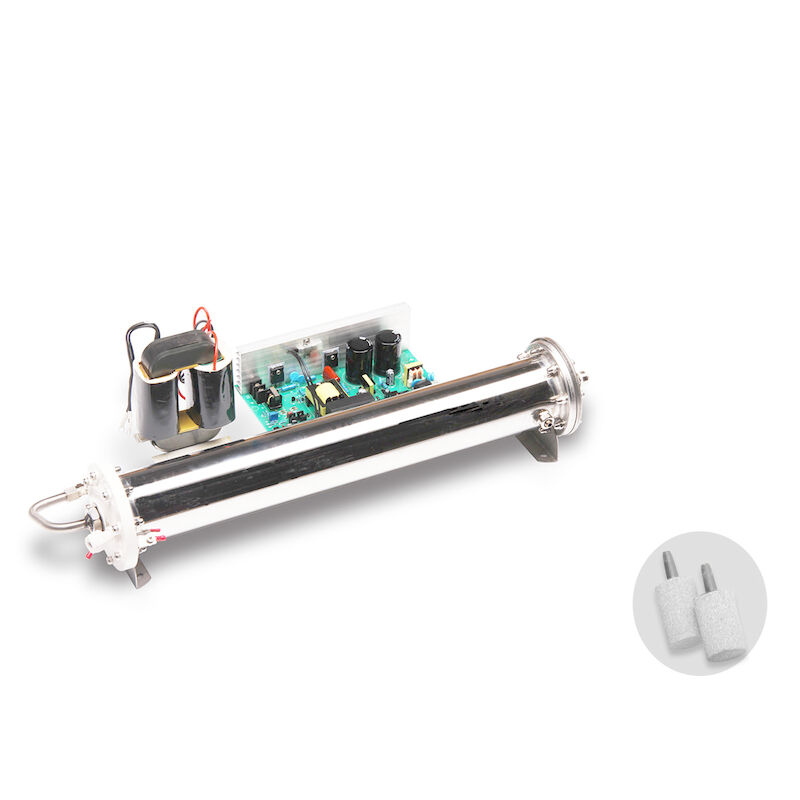

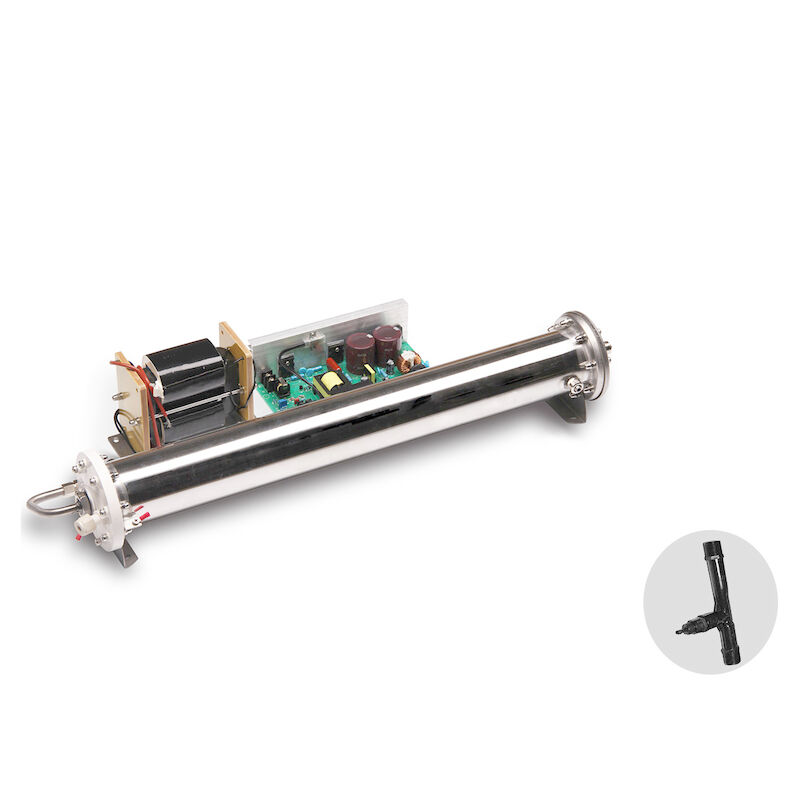

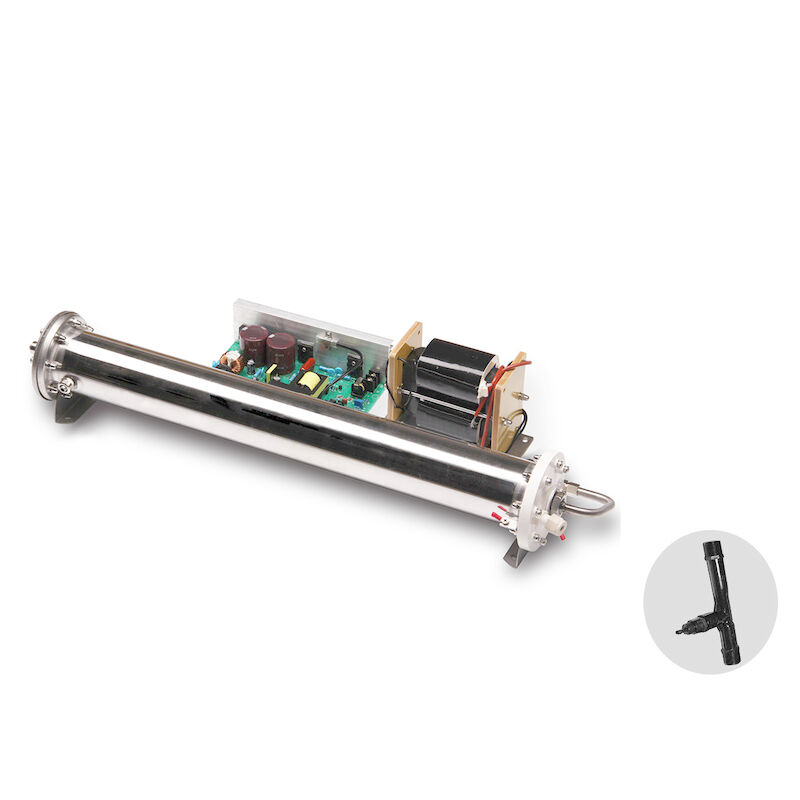

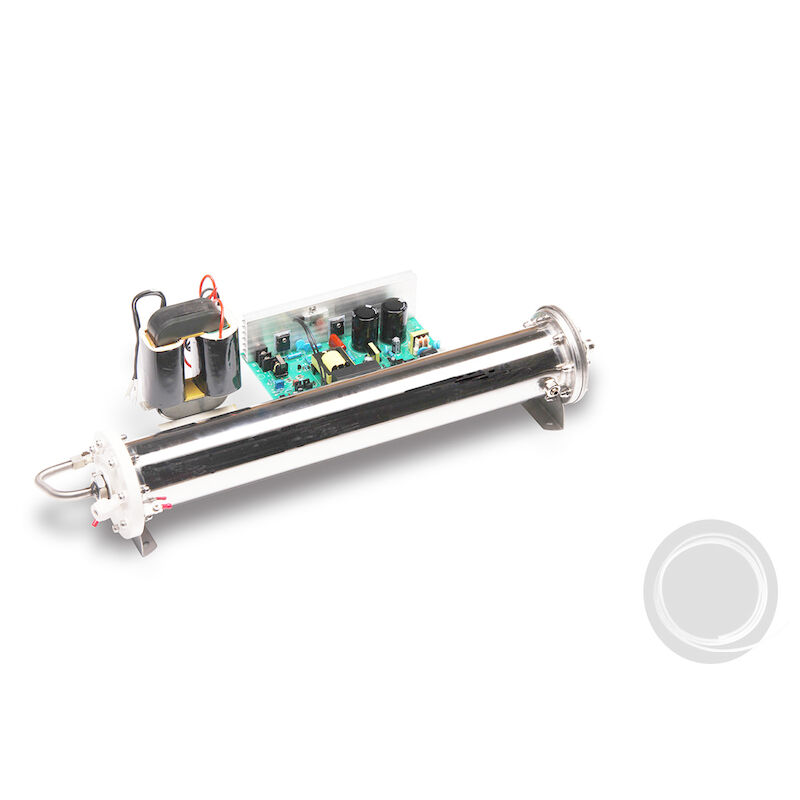

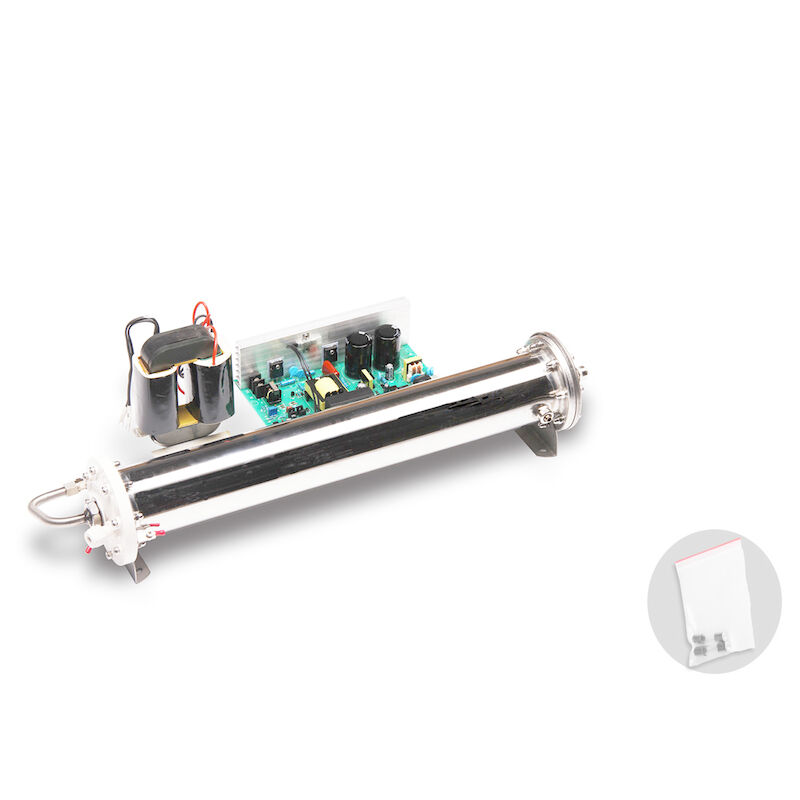

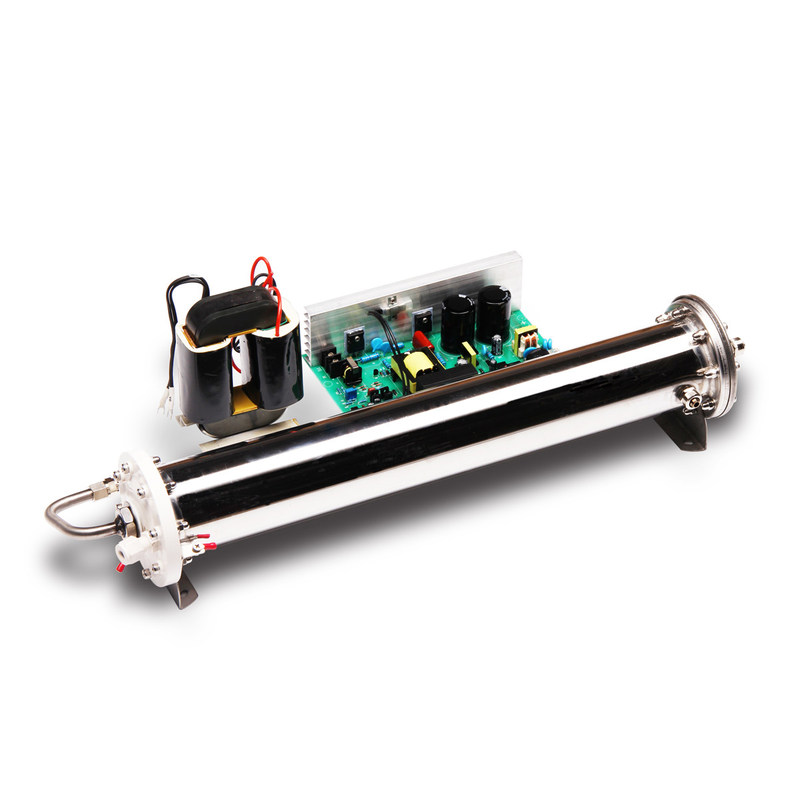

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine

  • Model
    CH-PC
  • Output
    18g30g40g60g80g
  • Concentration
    118-74mg/L
  • Oxygen Flow
    8-20LPM
  • Cooling
    Water Cooling
  • Inner Tube
    Enamel
  • Gas Inlet Outlet
    8mm
  • Weight
    8KG
  • Place of Origin
    China
  • Brand Name
    CHUANG
  • Certification
    ISO
  • Model Number
    CH-PC
  • Minimum Order Quantity
    1set
  • Price
    USD300-USD900
  • Packaging Details
    Paper box
  • Delivery Time
    1-7 working days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000set

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine



Double water cooling enamel ozone generator tube for air purifier water treatment ozone machine





Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 0



1. Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery
anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and
stainless stee l external electrode, it produces high concentration ozone output. It uses insulation materials for connections,
for preventing creepage.
2. Cooling way
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for
ensuring high ozone concentration output.
3. Adjustable ozone output: 20-100%. Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on
demand to achieve accuracy control.
4. High ozone concentration & output



CH-PC 18-80G/Hr

Item Unit CH-PC18G-1 CH-PC30G CH-PC40G CH-PC60G CH-PC80G
Ambient temperature 23 23 23.9 23.9 24
Ambient humidity % 38 38 37
Oxygen flow rate LPM 1~4 2~8 3~10 5~17 8~20
Ozone concentration Mg/L 112~78 123~72 123~70 120-72 118-74
Ozone output G/Hr 6.7-18.7 14.8~34.6 22.1-42 36-73 56-88
Power Kw ≤0.22 ≤0.3 ≤0.4 ≤0.6 ≤0.8
Cooling method Water cooling for internal & external electrodes
Cooling water flow rate LPM ≥2
Cooling water temperature ambient temperature ± 8℃
Diameter of gas inlet/outlet mm 1.Air inlet & ozone outlet: EDφ8mm
Diameter of water inlet/outlet   EDφ10mm
Adjustable range % 20-100
Power supply V/Hz 110/220V 60/50HZ
Fuse A 3 5 10
Ozone tube dimension mm 285*160*125 340*160*125 460*160*125 600*160*125 705*160*125
Power supply dimension mm 212*90*95 189*146*95 210*146*62
Ozone tube weight Kg 2.5 3 3.6 4.9 5.45
Power supply weight Kg 1 2.4



Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 1

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 2

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 3

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 4

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 5

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 6

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 7

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 8

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 9

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 10

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 11

Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on ozone equipment, accessories production, development and application of products.With the development for several years, the company has been in 16 aspects of the ozone generator. Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,North and South America, Southeast Asia, Middle East, Africa and dozens of countries.

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 12

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 13

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 14

Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid
any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 15

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 16

Q1: Are you trading company or manufacturer ?

Re:We are a company integrating factory and trade

Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C

Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.

Double water cooling enamel CH-PC80G ozone generator tube for air purifier water treatment ozone machine 17
