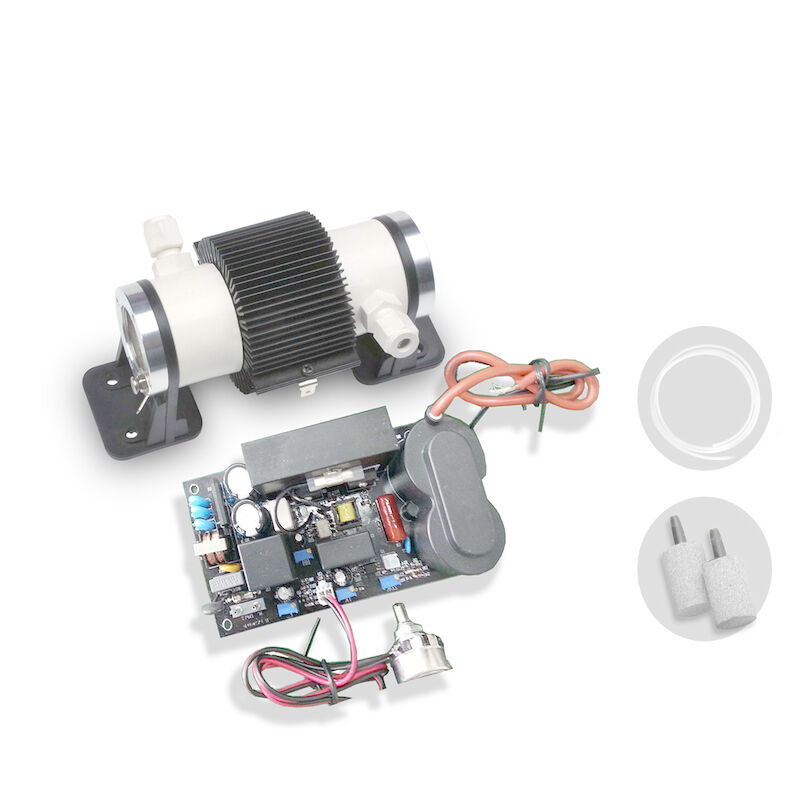

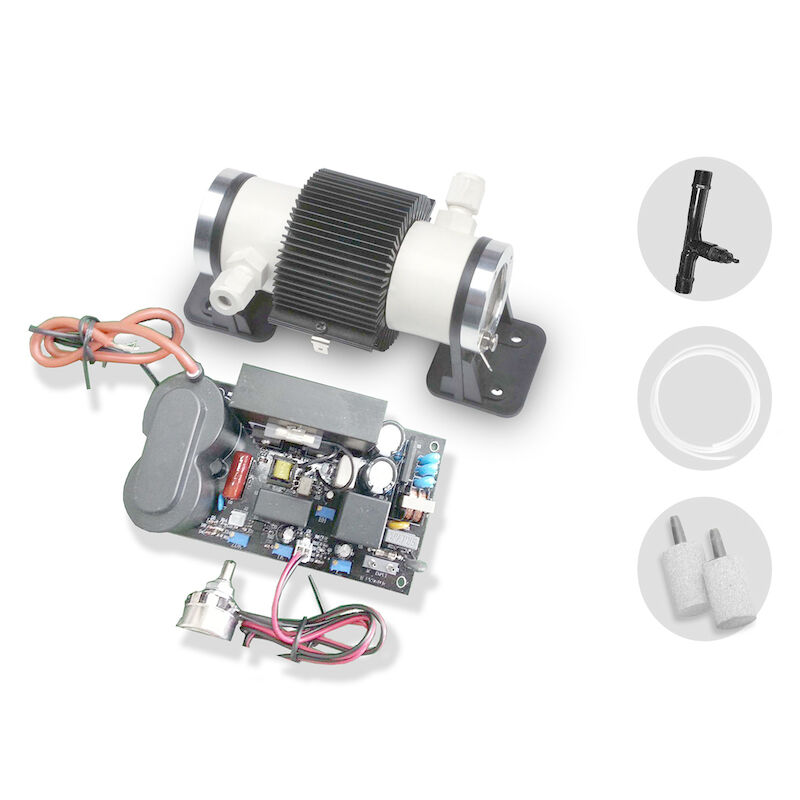

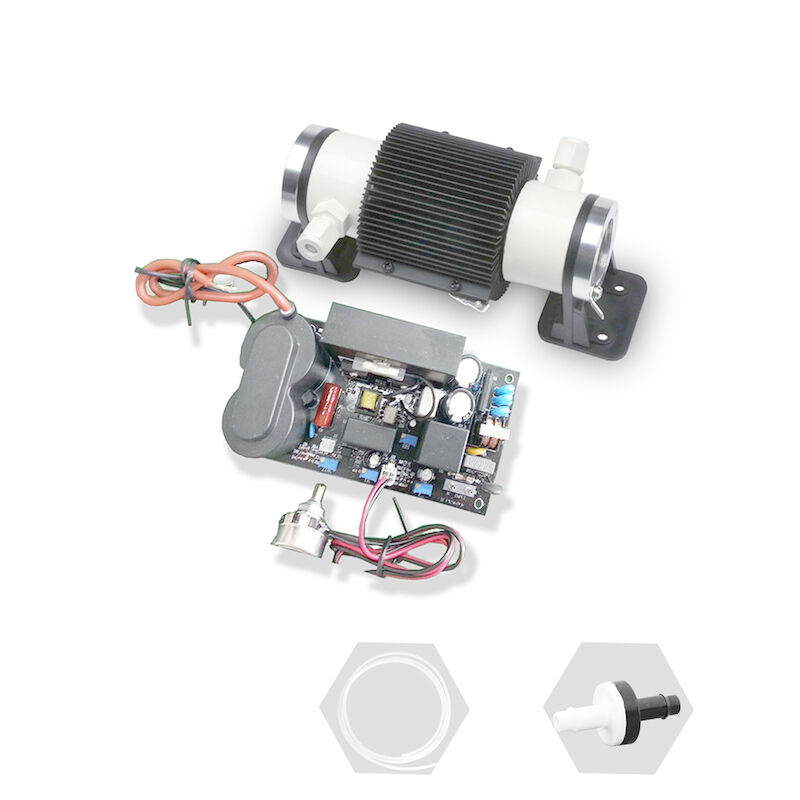

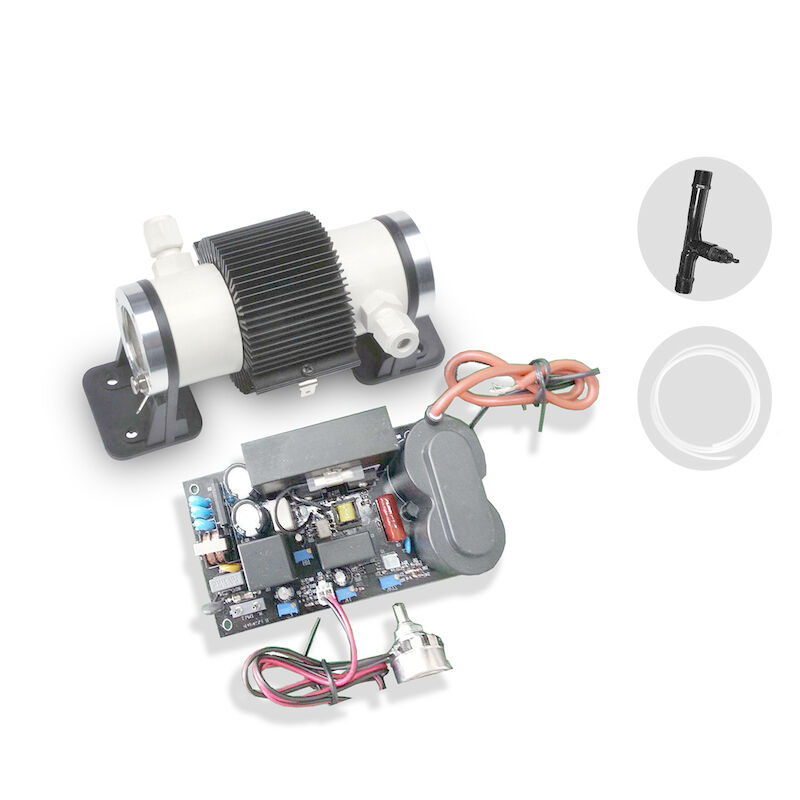

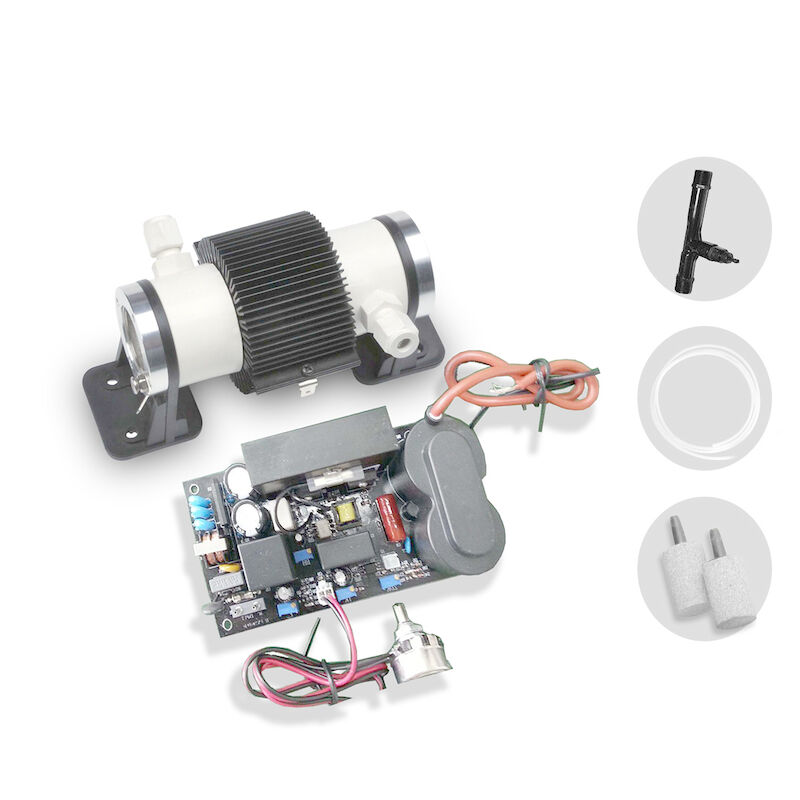

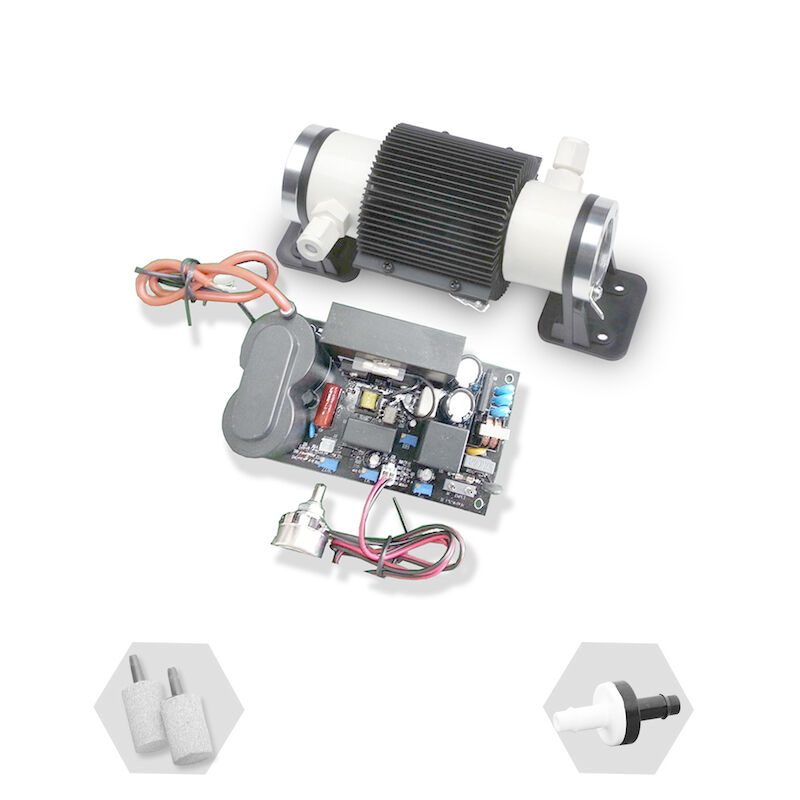

7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts

7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts

Products - Ozone Generator Parts
  • Product Name
    Ceramic Ozone Tube
  • Adjutable Rangel
    20%-100%
  • Cooling Method
    Air Cooling
  • Ozone Produced Method
    High Voltage Discharge
  • Application
    Industrial Ozone Generator Assemble,for Water Treatment
  • Usage
    Ozone Machine Assemble
  • Voltage
    AC110v 60Hz / 220V 50Hz DC12V 24V
  • Power
    80~95W
  • Output
    7G
  • Warranty
    12 Months
  • Place of Origin
    China
  • Brand Name
    ozocenter
  • Certification
    CE,ISO
  • Model Number
    CH-PTF7GA-1
  • Minimum Order Quantity
    1set
  • Price
    120USD/SET
  • Packaging Details
    double layer carton
  • Delivery Time
    2-3 working days
  • Payment Terms
    T/T, D/P, Western Union
  • Supply Ability
    1000sets/a week

7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts

  • 7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts
  • 7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts
  • 7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts
  • 7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts
  • 7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts
  • 7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts
Get Price Contact Now

 7G Air cooling ceramic ozone generator tube for odor remove sterilization

7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 0

7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 1

Imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material

for ensuring several years running.
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2. Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency

and stable ozone output.
3. Low working voltage.
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install

CH-PTF3GA-1 ~5GA-1
Item
Unit
CH-PTF3GA-1 ~5GA-1


3GA-1 (12V,24V)
3GA-1 (220V)
3GA-1 (110V)
5GA-1 (12V,24V)
5GA-1 (220V)
5GA-1 (110V)
Ambient temperature
℃
21
Ambient humidity
%
40
Power
W
≤80
Oxygen feed flow rate
LPM
0.5-1
0.5-2
Ozone concentration
Mg/L
81.6-49.2
72~48
Ozone output
G/Hr
2.4-2.95
2.16~4.76
Ozone output adjustable range
%
20~100
Line power supply
V/Hz
12V 24V 110/60 220/50
Cooling way
/
Air cooling
Diameter of cooling fan
mm
120
Diameter of gas inlet/outlet
mm
EDФ6
Power supply dimensions
mm
158*75*68
ozone tube dimensions
mm
165*90*90
185*90*90
Ozone tube weight
Kg
0.5
0.53
Power supply weight
Kg
0.52
CH-PTF6GA-1 ~7GA-1
Item
Unit
CH-PTF3GA-1 ~5GA-1


6GA-1 (12V,24V)
6GA-1 (220V)
6GA-1 (110V)
7GA-1 (12V,24V)
7GA-1 (220V)
7GA-1 (110V)
Ambient temperature
℃
26
Ambient humidity
%
49
Power
W
≤85
Oxygen feed flow rate
LPM
1~3
1~3
Ozone concentration
Mg/L
64.6~36.7
70~41.2
Ozone output
G/Hr
3.9~6.6
4.20~7.4
Ozone output adjustable range
%
20~100
Line power supply
V/Hz
12V 24V 110/60 220/50
Cooling way
/
Air cooling
Diameter of cooling fan
mm
150
Diameter of gas inlet/outlet
mm
EDФ6
Power supply dimensions
mm
158*75*68
ozone tube dimensions
mm
200*90*90
212*90*90
Ozone tube weight
Kg
0.56
0.65
Power supply weight
Kg
0.52
7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 27G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 37G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 47G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 57G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 67G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 77G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 8

Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on

ozone equipment, accessories production, development and application of products.

With the development for several years, the company has been in 16 aspects of the ozone generator. Most products
have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers.
Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube,
ceramic and enamel, widely used in water and air treatment. Products are exported to Europe, North and South America, Southeast
Asia, Middle East, Africa and dozens of countries.
7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 9
7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 10
7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 11
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in
packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 12
7G Air cooling ceramic ozone generator tube for odor remove sterilization ozone parts 13

Q1: Are you trading company or manufacturer ?

Re:We are a company integrating factory and trade

Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C

Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
