Professional ozonizer water ozone generator

Professional ozonizer water ozone generator

  • Model
    CH-Y
  • Ozone Output
    40g50g 60g 100g150g
  • Ozone Cocentration
    90-60mg/l
  • Internal
    Enamel Ozone Tube
  • Ozone Adjustable
    20%~100%
  • Ozone Tube Cooling
    Water Cooling
  • Build-in
    PSA Oxygen Generator
  • Case
    Carbon Steel
  • Warranty
    1 Year
  • Place of Origin
    China
  • Brand Name
    Ozocenter
  • Certification
    ISO
  • Model Number
    CH-Y
  • Minimum Order Quantity
    1set
  • Price
    USD4000-USD8000
  • Packaging Details
    Wooden box packing
  • Delivery Time
    5-8 working days
  • Supply Ability
    100Set

Professional ozonizer water ozone generator

Professional ozonizer water ozone generator

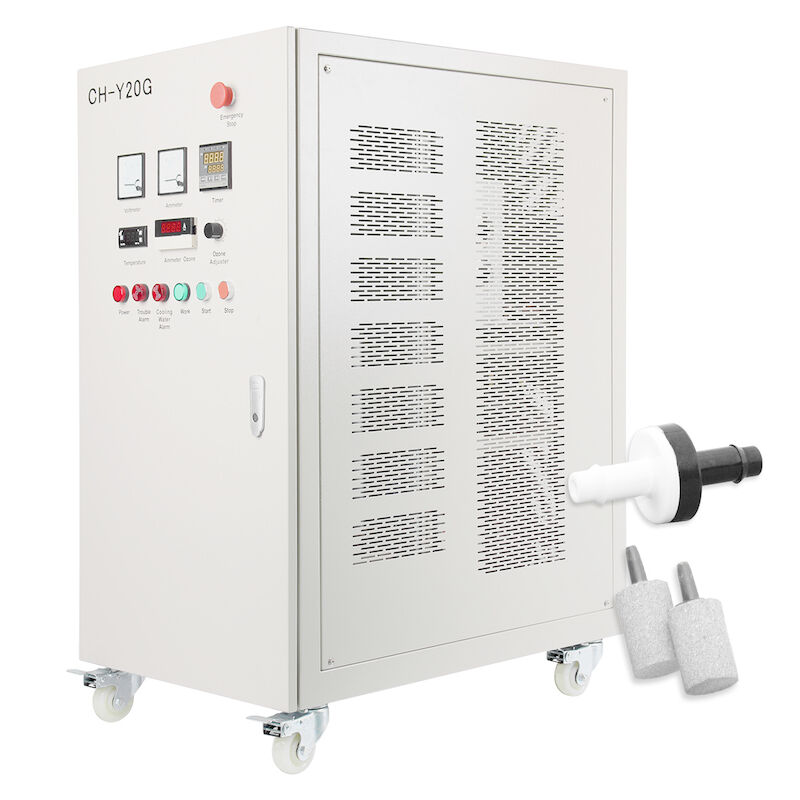

Professional ozonizer water ozone generator 0

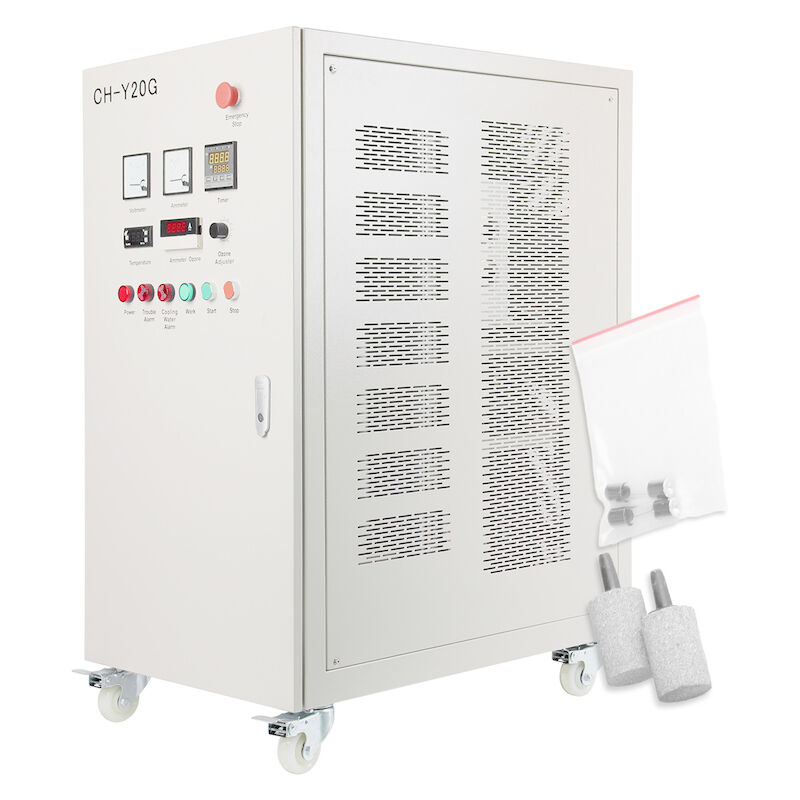

Professional ozonizer water ozone generator 1

Features:

1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator

2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L

with stable ozone capacity, long life time

3. Adjustable ozone range: 20%--100%, it can working automatic

4. Compact assembly,Movable with Wheels

5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety

Control panel: Ozone output adjuster, Voltmeter, Ampmeter, Timer, Cooling water temperature indicator,

Ozone Ampmeter, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm



Item
Unit
CH-Y40G
CH -Y50G
CH -Y60G
CH -Y100G
Oxygen flow rate
LPM
5~15
8~18
20
16-32
Ozone concentration
Mg/L
90~56
90~60
55-59
90~58
Ozone output
G/Hr
27~50
43~64
66-70.8
86~111
Power
Kw
≤1.62
≤1.85
≤2.80
3.5
Fuse
A
15
20
20
20
Cooling water flow
LPM
48
Size
cm
65*103*124
60*85*131
67*110*136

Noted: 1. Above ozone capacity were tested under oxygen source 2. Net weight will be 10% different for different plug

Professional ozonizer water ozone generator 2
Professional ozonizer water ozone generator 3
Professional ozonizer water ozone generator 4
Professional ozonizer water ozone generator 5
Professional ozonizer water ozone generator 6
Professional ozonizer water ozone generator 7
Professional ozonizer water ozone generator 8
Professional ozonizer water ozone generator 9
Professional ozonizer water ozone generator 10
Used for Agricultural irrigation and sterilization, Vegetable cleaning and disinfection
Professional ozonizer water ozone generator 11
Professional ozonizer water ozone generator 12
Professional ozonizer water ozone generator 13
Professional ozonizer water ozone generator 14
Professional ozonizer water ozone generator 15



Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on

Ozone generator, Oxygen machine , Ozone tube, accessories production, development and application of products.

With the development for several years, the company has been in 16 aspects of the ozone generator.
Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and
foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone
generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,
North and South America, Southeast Asia, Middle East, Africa and dozens of countries.

Our Services & Strength
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment,
gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode,
whichare best anti-oxidation material,the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
Professional ozonizer water ozone generator 16
Professional ozonizer water ozone generator 17
Professional ozonizer water ozone generator 18
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing
and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
Professional ozonizer water ozone generator 19
Professional ozonizer water ozone generator 20
Professional ozonizer water ozone generator 21
Professional ozonizer water ozone generator 22
Q1: Are you trading company or manufacturer ?
Re:We are a company integrating factory and trade

Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C

Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
