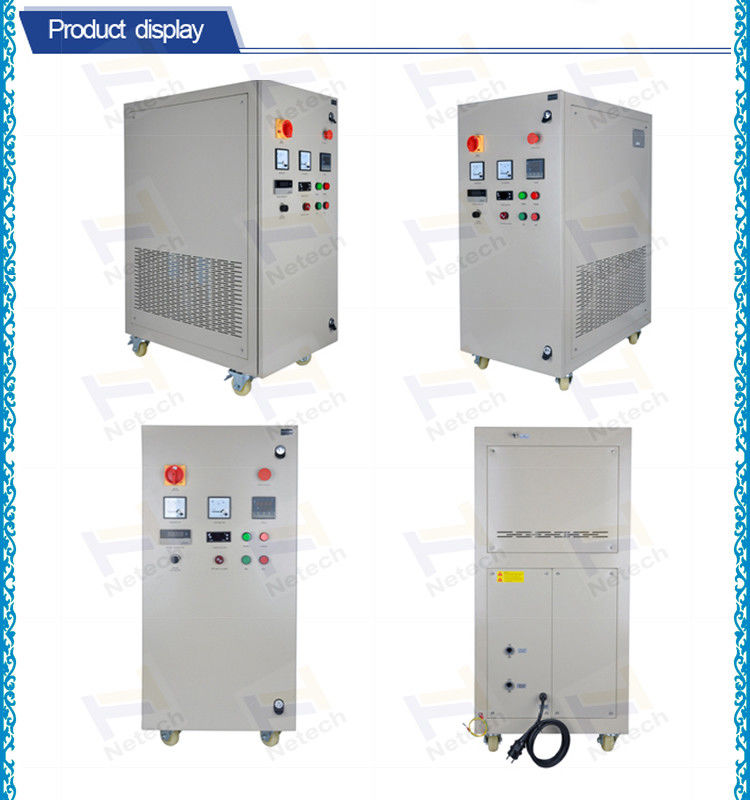

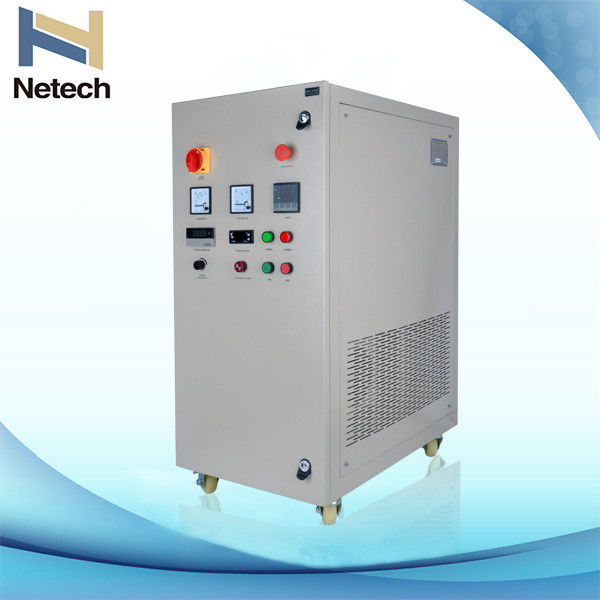

Large Ozone Generator water treatment swimming pools Movable with Wheels

Large Ozone Generator water treatment swimming pools Movable with Wheels

  • High Light

    high output ozone generator

    ,

    longevity ozone generators

  • Place of Origin
    Guangdong China
  • Brand Name
    ozocenter
  • Model Number
    CH-Y
  • Minimum Order Quantity
    1 set
  • Price
    for futher discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    5-10 days after payment confirmed
  • Payment Terms
    EXW / FOB / CIF
  • Supply Ability
    1000 sets per month

Large Ozone Generator water treatment swimming pools Movable with Wheels

Large Ozone Generator water treatment swimming pools Movable with Wheels





Quick details



Brand Name: ozocenter

Model Number: CH-Y

Certification: domestic
Ozone output way: corona discharge

Warranty: one year warranty
Adjustable rate:20%-100% adjustable ozone





Description



Gas source Oxygen
Oxygen flow rate 1-18LPM
Material Enamel tube
Cooling Water cooling
Power supply 220V , 50HZ
Commodity Ozone water system
Ozone output

40g 50g





How to use ?



1. Before use this machine, put it in a stable flat place which can hold its weight.

2. Use the power equipped with the machine;

3. The machine use for air purification, firstly attach the silicone tube into the

ozone outlet and then turn on the power;

4. Set the timer and then come out ozone, and put the tube into the room.

5. When use for room air purification, it requires nobody is present , after 30

minutes people can walk into the room.

6. If use for water treatment, the air stone should be attached into the silicone

tube and put into the water.

7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.





Features:



1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator

2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time

3. Adjustable ozone range: 20%--100%, it can working automatic

4. Compact assembly,Movable with Wheels

5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety

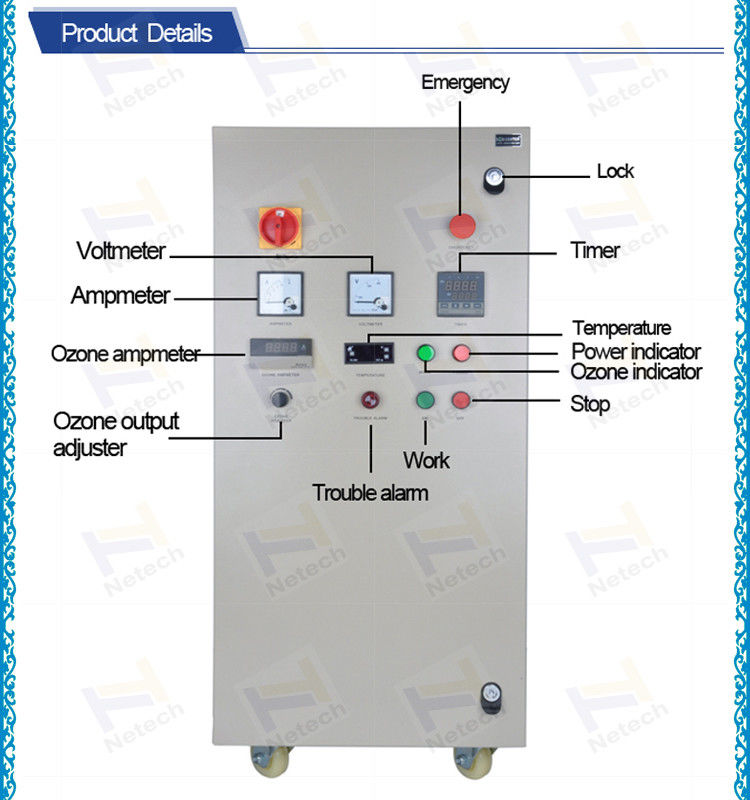

Control panel:

Ozone output adjuster, Voltmeter, Ampere, Timer, Cooling water temperature indicator, Ozone Ampere, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm





Specifications



Item Unit CH-Y40G CH-Y50G CH-Y100G
Oxygen flow rate LPM 5~15 8~18 16-32
Ozone concentration Mg/L 90~56 90~60 90~58
Ozone output G/Hr 27~50 43~64 86~111
Power Kw ≤1.62 ≤1.85 3.5
Fuse A 15 20 20
Cooling water flow LPM 48
Size mm 650×1030×1230 650×1030×1230
Noted:

1. Above ozone capacity were tested under oxygen source

2. Net weight will be 10% different for different plug





Question and answer



♦ Is ozone harmful to human body ?

Once the ozone concentration fails to meet the hygiene and safety standard,

we can notice with our sense of smell and dodge away or take actions to avoid

further leakage.

So far there is no one dead reported caused by ozone poisoning.



♦ Does the ozone generator work efficiently ?

Undeniably, ozone can clean and remove odor and formaldehyde.

It is reported that ozone is a widely used bactericide.It can kill escherichia coli,

bacteria efficiently and resolve the harmful material in a short time.
