Aquaculture 18LPM Water cooling industrial ozone generator 40g With SS housing
High Light | industrial ozone machine,water treatment industrial ozone generator |
---|

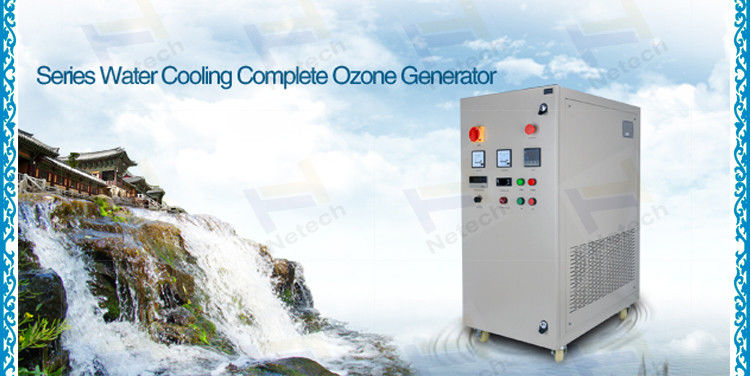

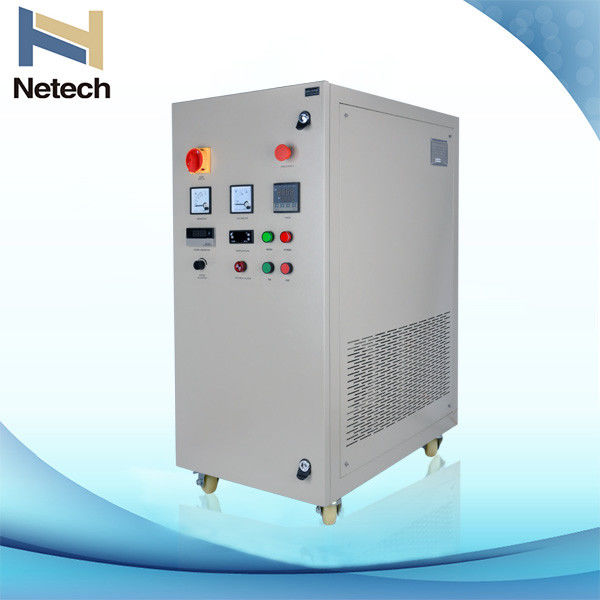

Aquaculture 18LPM Water cooling industrial ozone generator 40g With SS housing
Quick details
Brand Name: Netech
Model Number: NT-Y
Certification: domestic
Ozone output way: corona discharge
Warranty: one year warranty
Adjustable rate:20-100% adjustable ozone
Description
Gas source | Oxygen | ||
Oxygen flow rate | 1-18LPM | ||
Material | Enamel tube | ||
MOQ: | 1 set | ||
Cooling | Water cooling | ||
Power supply | 220V,50/60HZ | ||
Commodity | Ozone water system | ||
Ozone output | 10g/20g/30g/40g/50g | ||
Size | 500*830*1110/650*170*175mm |
how to use ?
1. Before use this machine, put it in a stable flat place which can hold its weight.
2. Use the power equipped with the machine;
3. The machine use for air purification, firstly attach the silicone tube into the
ozone outlet and then turn on the power;
4. Set the timer and then come out ozone, and put the tube into the room.
5. When use for room air purification, it requires nobody is present , after 30
minutes people can walk into the room.
6. If use for water treatment, the air stone should be attached into the silicone
tube and put into the water.
7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.
Features:
1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
3. Adjustable ozone range: 20%--100%, it can working automatic
4. Compact assembly,Movable with Wheels
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Control panel:
Ozone output adjuster, Voltmeter, Ampere meter, Timer, Cooling water temperature indicator, Ozone Ampere meter, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm

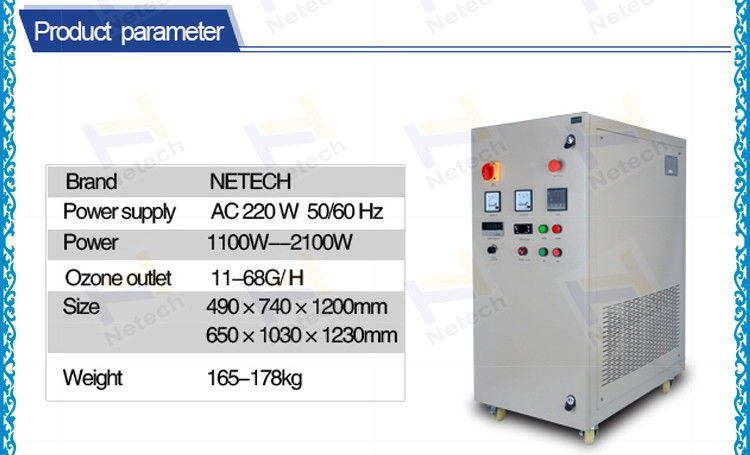

Specifications
Item | Unit | NT-Y40G | NT-Y50G | NT-Y100G |
Oxygen flow rate | LPM | 5~15 | 8~18 | 16-32 |
Ozone concentration | Mg/L | 90~56 | 90~60 | 90~58 |
Ozone output | G/Hr | 27~50 | 43~64 | 86~111 |
Power | Kw | ≤1.62 | ≤1.85 | 3.5 |
Fuse | A | 15 | 20 | 20 |
Cooling water flow | LPM | 48 | ||
Size | mm | 650×1030×1230 | 650×1030×1230 |
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
