Air Cooling 3g 5g 6g 7g Ceramic Ozone Generator Parts for Air Purifier
-
Ozone ConcentrationAround.30~86 Mg/L
-
Domestic PatentDomestic Patent In 2008
-
Size1/4 Smaller Than Similar Products
-
Ozone Output Adjustable Range20~100% Or Non-adjustable
-
Diameter Of Cooling Fan150mm*150mm
-
Ozone Output1g,3g,5g,6g 7g
-
KeywordCeramic Ozone Mgenerator Tube
-
TypeCorona Discharge
-
Place of OriginChina(Guangzhou)
-
Brand NameOzocenter
-
CertificationISO9001
-
Model NumberCH-PTF-1
-
Minimum Order Quantity1 set
-
PriceUSD 26-120
-
Packaging DetailsCartons
-
Payment TermsD/P, D/A, T/T, Western Union, MoneyGram,Paypal
-
Supply Ability300 sets/month

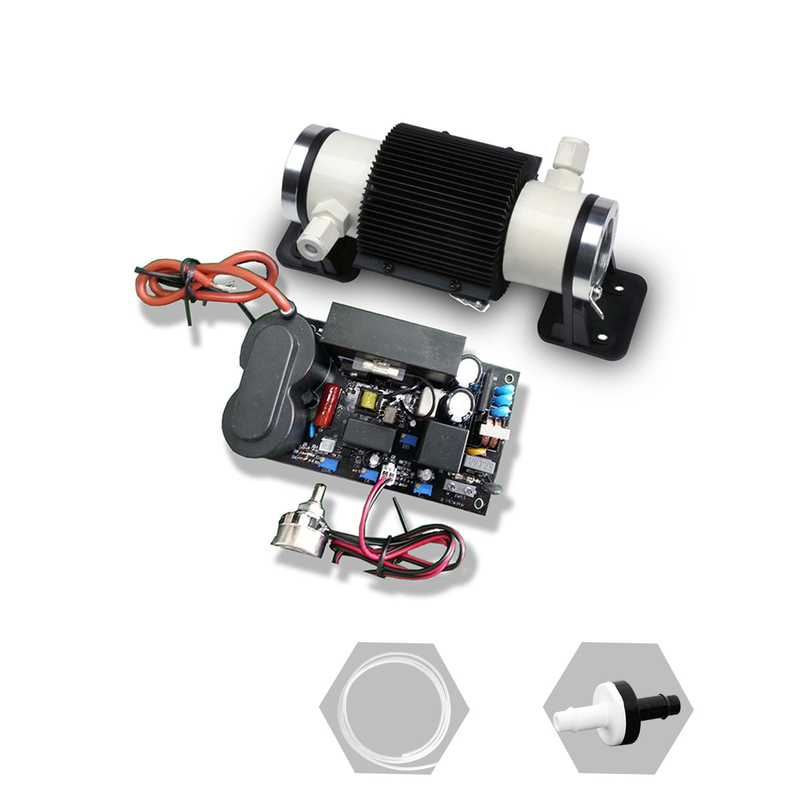

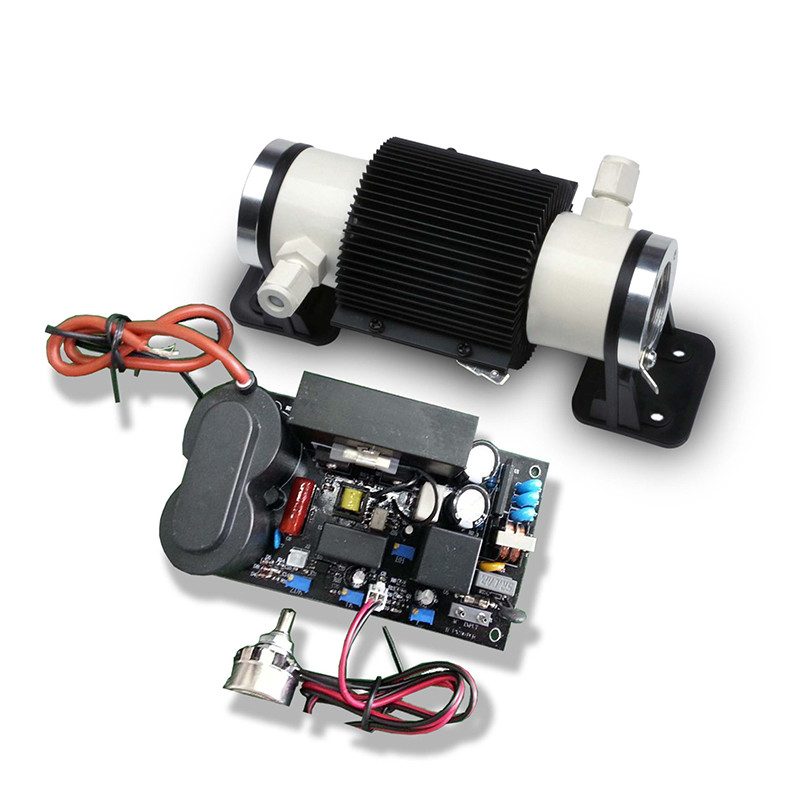

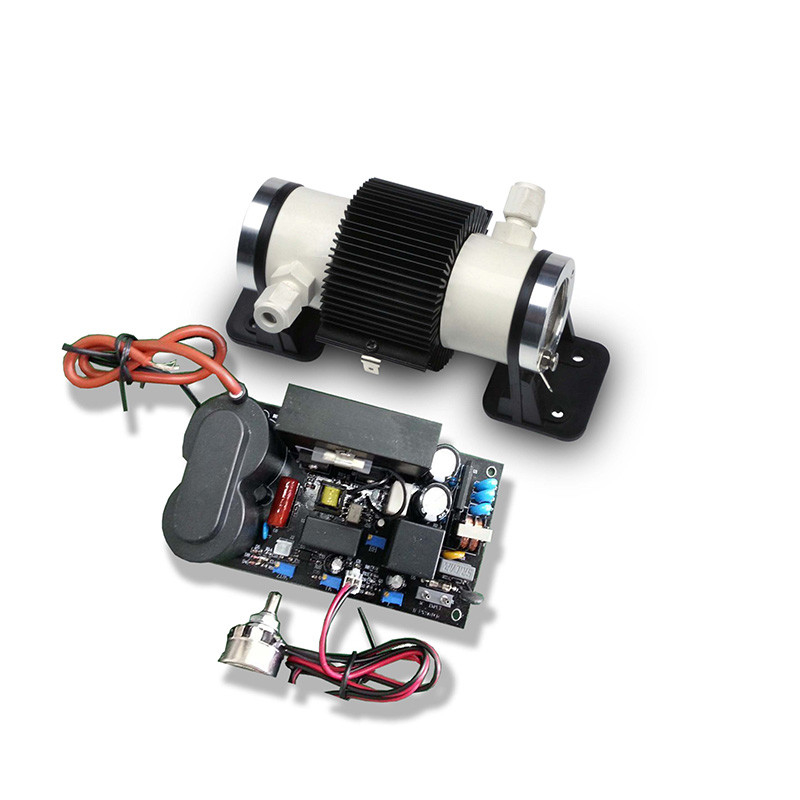

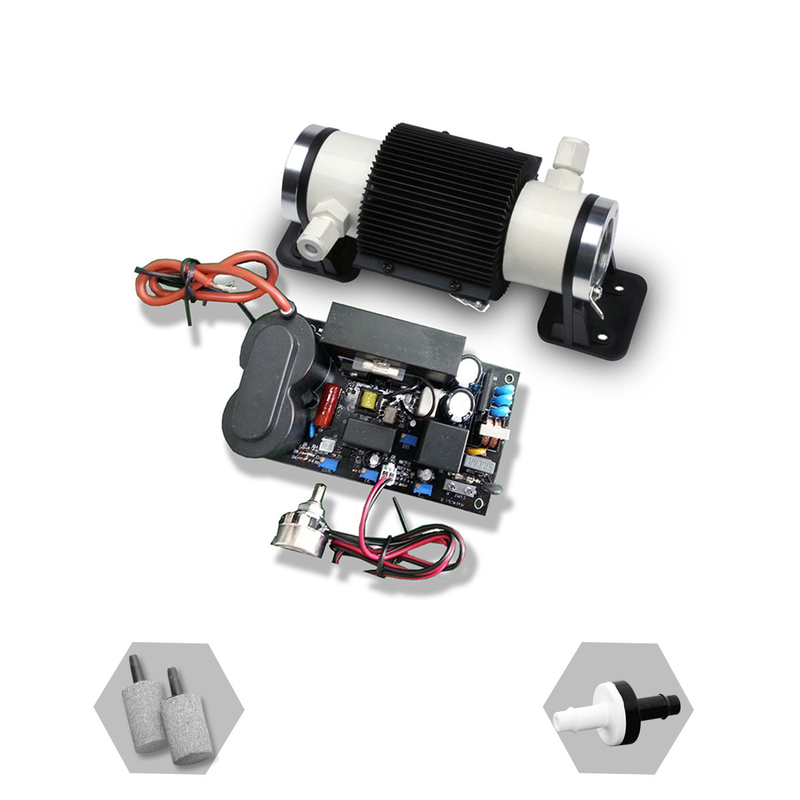

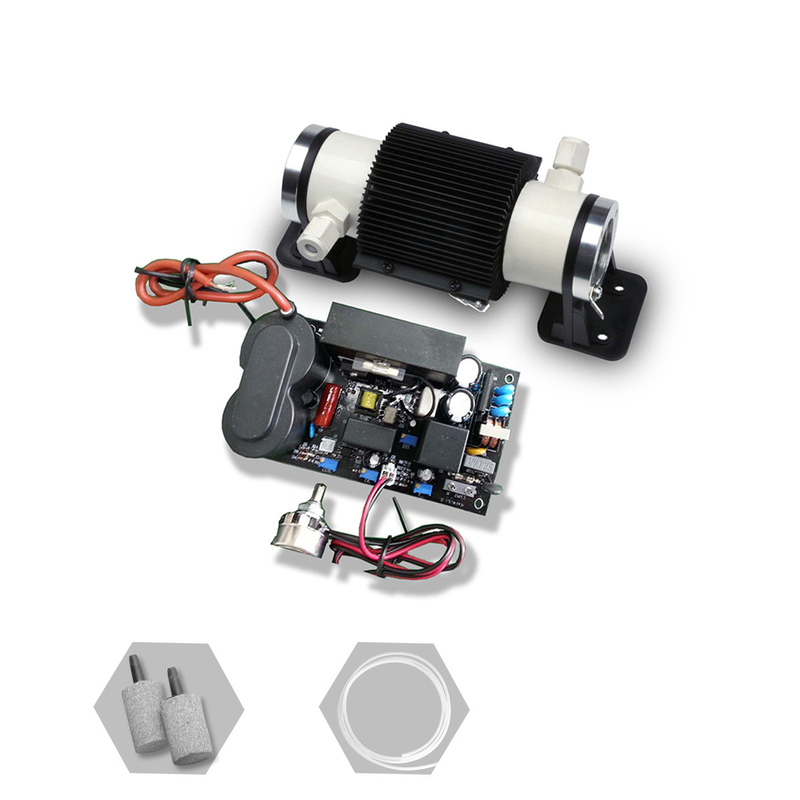

Air Cooling 3g 5g 6g 7g Ceramic Ozone Generator Parts for Air Purifier
Air Cooling 3g 5g 6g 7g Ceramic Ozone Generator Parts for Air Purifier
Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.
Features:
1.Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2.Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output
3.Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4.Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install
Specification:
|
Item |
Unit |
CH-PTF |
||||
|
5GM |
5GA |
6GM |
6GA |
7GA |
||
|
Ambient temperature |
℃ |
21 |
21 |
26 |
26 |
|
|
Ambient humidity |
% |
40 |
49 |
49 |
||
|
Power |
W |
≤65 |
≤80 |
≤80 |
≤85 |
≤95 |
|
Oxygen feed flow rate |
LPM |
0.5-2 |
1~3 |
1~3 |
||
|
Ozone concentration |
Mg/L |
72~48 |
64.6~36.7 |
70~41.2 |
||
|
Ozone output |
G/Hr |
2.16~4.76 |
3.9~6.6 |
4.20~7.4 |
||
|
Ozone output adjustable range |
% |
/ |
20~100 |
/ |
20~100 |
20~100 |
|
Line power supply |
V/Hz |
110/60 220/50 |
||||
|
Cooling way |
/ |
Air cooling |
||||
|
Diameter of cooling fan |
mm |
150 |
||||
|
Diameter of gas inlet/outlet |
mm |
EDФ6 |
||||
|
Power supply dimensions |
mm |
177*66*53 |
201*86*83 |
177*66*53 |
201*86*83 |
201*86*83 |
|
ozone tube dimensions |
mm |
185*90*90 |
200*90*90 |
212*90*90 |
||
|
Ozone tube weight |
Kg |
0.53 |
0.56 |
0.65 |
||
|
Power supply weight |
Kg |
0.59 |
0.76 |
0.59 |
0.76 |
1.1 |
