Ozone Generator Parts Ozone Tubes

Ozone Generator Parts Ozone Tubes

Products - Ozone Generator Parts
  • High Light

    ozone accessories

    ,

    ozone generator tube

    ,

    ozone generator spare parts tubes

  • Ozone Output
    1g 3g 5g 6g 7g
  • Material
    Ceramic
  • Cooling Method
    Air Cooling
  • MOQ
    1 Set
  • Voltage
    220V/ 50Hz Or 110V/60Hz Or 12V
  • Ozone Produced Method
    Corona Discharge
  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    NT-PTF / CH-PTF
  • Minimum Order Quantity
    1 set
  • Price
    For further discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    2-3 working days after received your payment
  • Payment Terms
    paypal,western union,T/T,credit card, L/C
  • Supply Ability
    3000 sets per months

Ozone Generator Parts Ozone Tubes

  • Ozone Generator Parts Ozone Tubes
  • Ozone Generator Parts Ozone Tubes
  • Ozone Generator Parts Ozone Tubes
Get Price Contact Now

Ozone Generator Parts Ozone Tubes






Quick Detail
ozone generator spare parts
1. Easy to maintain and install
2. air cooling ceramic .
3, Low working voltage
4. high concentration

Description
MOQ                                        1 sets
ozone produced medium          ceramic
output                                      1g 3g 5g 6g 7g
cooling way                               air cooling
adjustable range                       20%-100%
ozone produced method           corona discharge
voltage                                      220V/ 50Hz or 110V/60Hz
warranty                                    repair or change new parts during 12 months

Features:


< Extremely low rate of ozone decay & high ozone concentration.
< Ozone concentration can be around 28~65 Mg/L, which is much higher than conventional <products
< Dometic product-got domestic in 2008.
< Air cooled for internal & external electrodes with low temperature rise of continuously working, <high efficiency and stable ozone output.
< It saves space effectively. The size is 1/4 smaller than similar products.



Item Unit CH-PTF
1GM 1GA 3GM 3GA 5GM 5GA 6GA
Oxygen feed flow rate LPM 0.5-2 1-3 1.2-3 1-2.5
Ozone concentration Mg/L 50.3-28 65-28 60-32 50-39
Ozone output G/Hr 1.5-3.36 3.9-5.04 4.32-5.76 3-5.85
Power Kw 0.040 0.050 0.080 0.085
Output frequency KHz 7-15
High voltage output V 3600V Peak to Peak
Power supply dimensions mm 165×65×52 200×75×83 165×65×52 200×75×83 165×65×52 200×75×83 215×87×85
Location of mounting holes of power supply mm 152(5) 190.5×57 152(5) 190.5×57 152(5) 190.5×57 /
Cooling method / Air cooling for internal and external electrode
Fitting size for air & ozone mm ID6, ED8
Ozone output adjustable range % / 20-100 / 20-100 / 20-100
Dew point °C -45
Line power supply V/Hz 110/220V 50/60Hz
Ozone tube dimensions mm 162×60 182×60 200×60 227×60
Mounting hole foot print of ozone tube mm 140×28(5) 160×28(5) 177×28(5)

204.5×28

(5)
Ozone tube weight Kg 0.50 0.53 0.56 0.65
Power supply weight Kg 0.59 0.76 0.59 0.76 0.59 0.76 1.10




< Quality control

< Every procedure has personnel inspection.
< All the products must be tested and qualified before packaging.


< After sales service

< We provide 12month free maintenance.
< The buyer should return the product in the original conditions to us and should bear the shipping costs for return.

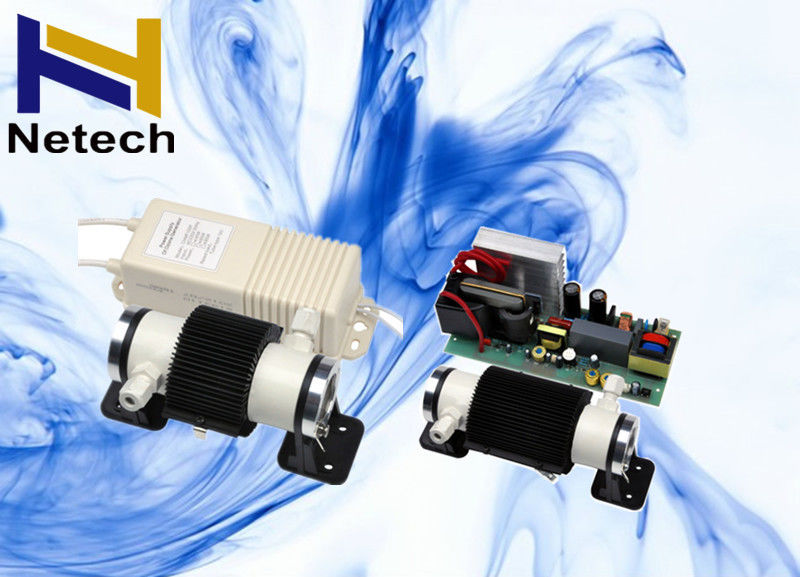

Ozone Generator Parts Ozone Tubes 0
