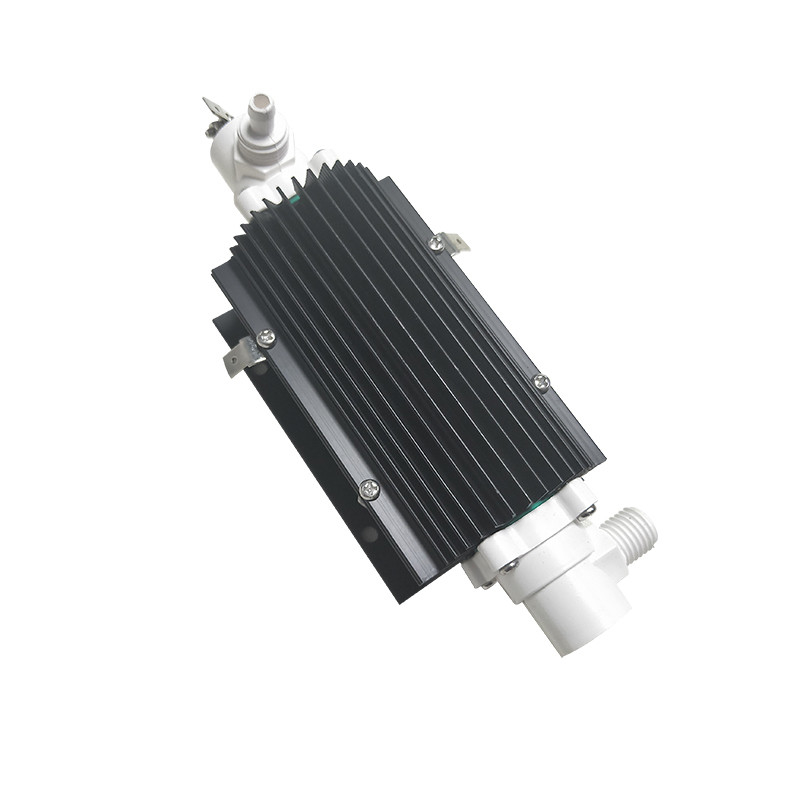

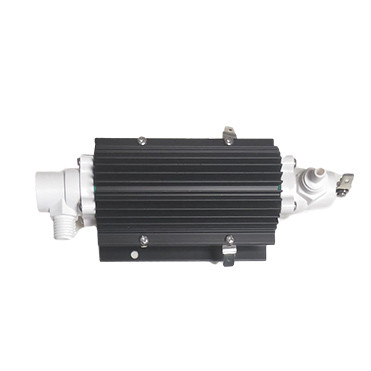

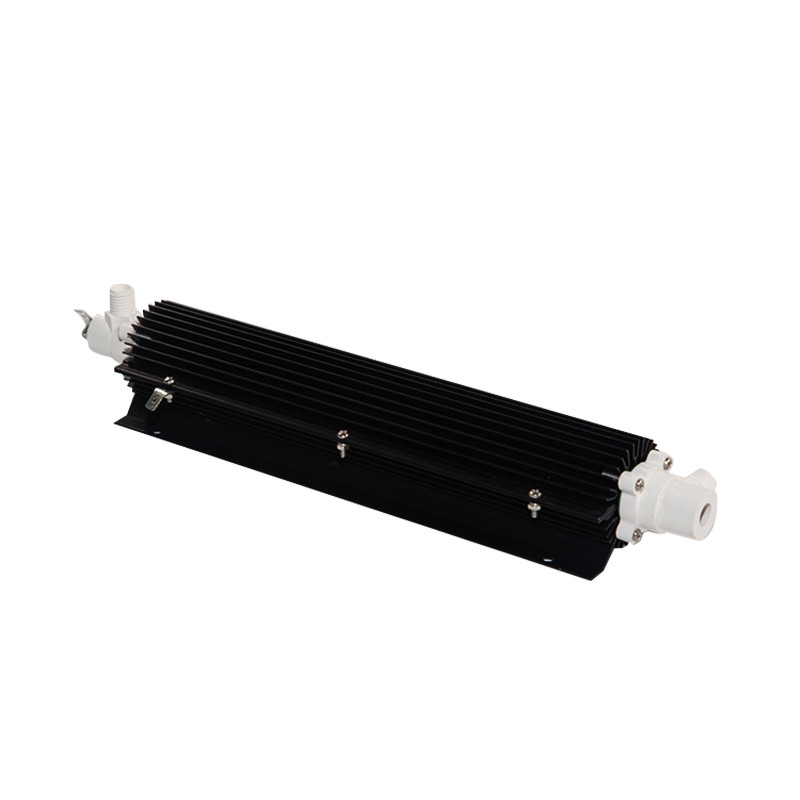

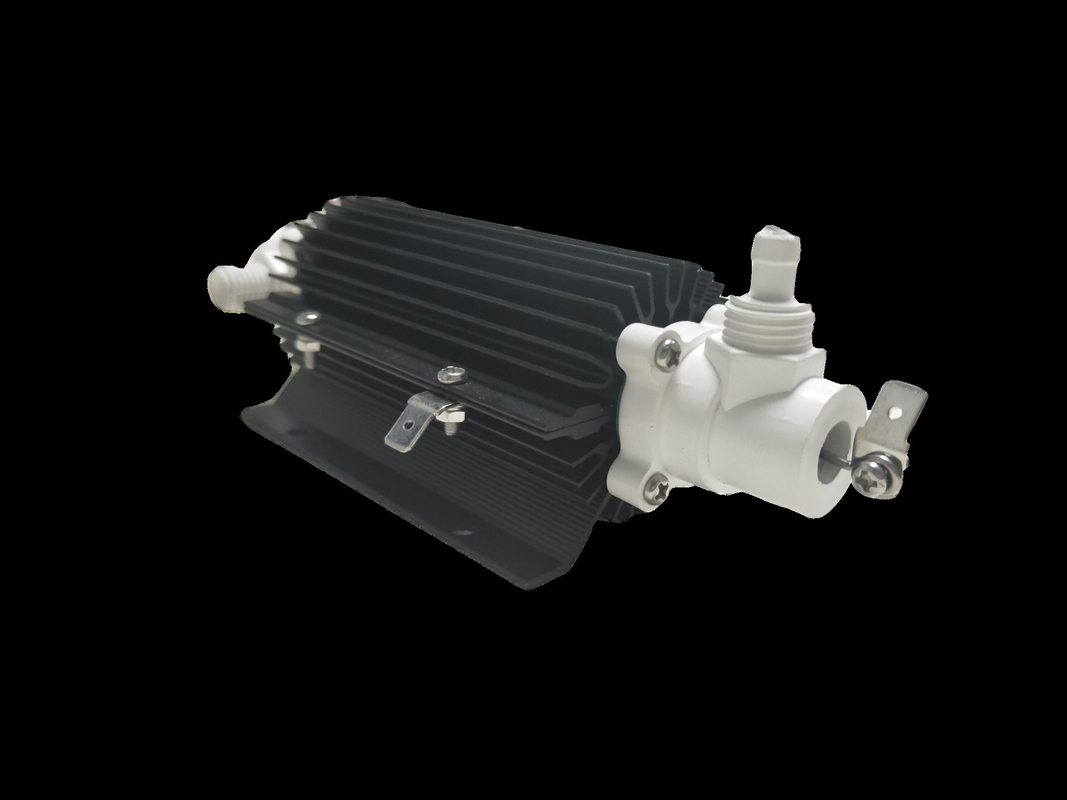

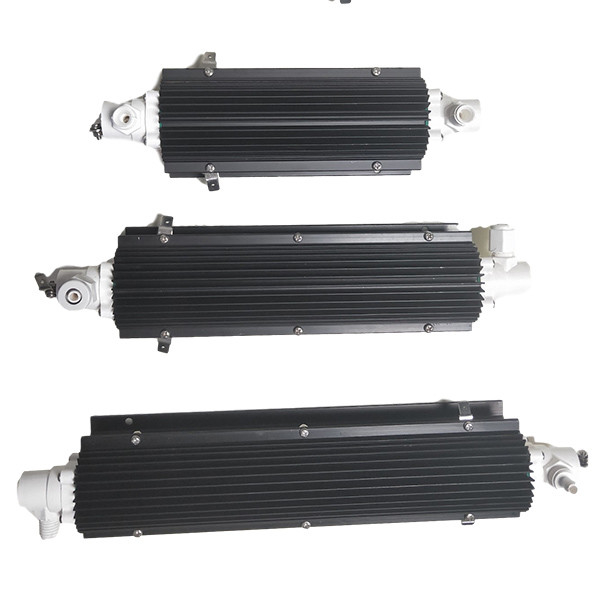

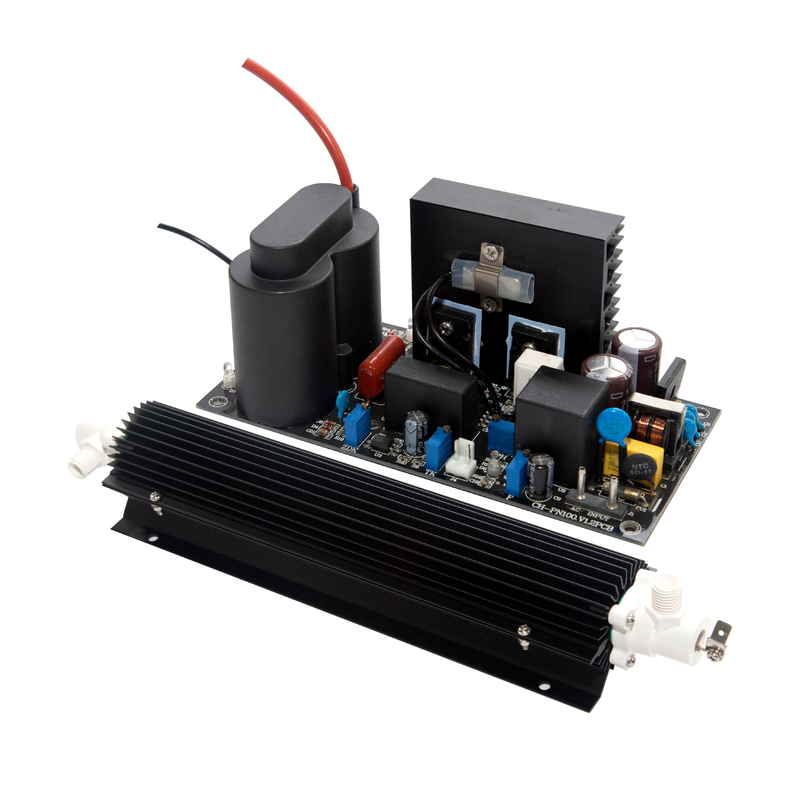

10g ozone accessories ozone generator parts ozone tube with power supply

10g ozone accessories ozone generator parts ozone tube with power supply

  • Material
    Ceramic Tube
  • Moq
    1 Set
  • Warranty
    1 Year
  • Output
    1g 3g 5g 6g 7g
  • Brand
    Netech
  • Adjustable
    20% To 100%
  • Set
    With Power Supply
  • Application
    Air Purify, Water Treatment
  • Keywords
    Ozone Generator Tube
  • Place of Origin
    China
  • Brand Name
    Osunshine
  • Model Number
    CH-PSF
  • Minimum Order Quantity
    1
  • Price
    negotiate
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    3 to 5days
  • Payment Terms
    paypal,western union,T/T,credit card
  • Supply Ability
    1000 per weeks

10g ozone accessories ozone generator parts ozone tube with power supply

3g-10g air cooling ozone generator parts ozone tube with power supply

10g ozone accessories ozone generator parts ozone tube with power supply 0

Descriptions:

1. Extremely low rate of ozone decay & high ozone concentration.

2. Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.

3. Low working voltage, The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

4. Small in size. It saves space effectively. The size is 1/4 smaller than similar products.



Specifications

Item Unit CH-PSF3GM CH-PSF5GM / CH-PSF5GA
Power W 50 66
Line power supply V/Hz 220v/50hz 220v/50hz
Cooling way / Air cooling Air cooling
Diameter of cooling fan mm 150*150mm 150*150mm
Diameter of gas inlet/outlet mm ED6 ED6
Power supply dimensions mm 158*73*54

CH-PSF5M: 175*66*57

CH-PSF5A: 158*75*68

ozone tube dimensions mm 160*62*47 205*62*47
Ozone tube weight Kg 0.282 0.381
Power supply weight Kg 0.59

CH-PSF5M: 0.72

CH-PSF5A: 0.52








10g ozone accessories ozone generator parts ozone tube with power supply 2


Quality control

Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


After sales service

We provide 12month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.


Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dealth reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacimethrin efficently and resolve the harmful material in a short time.
