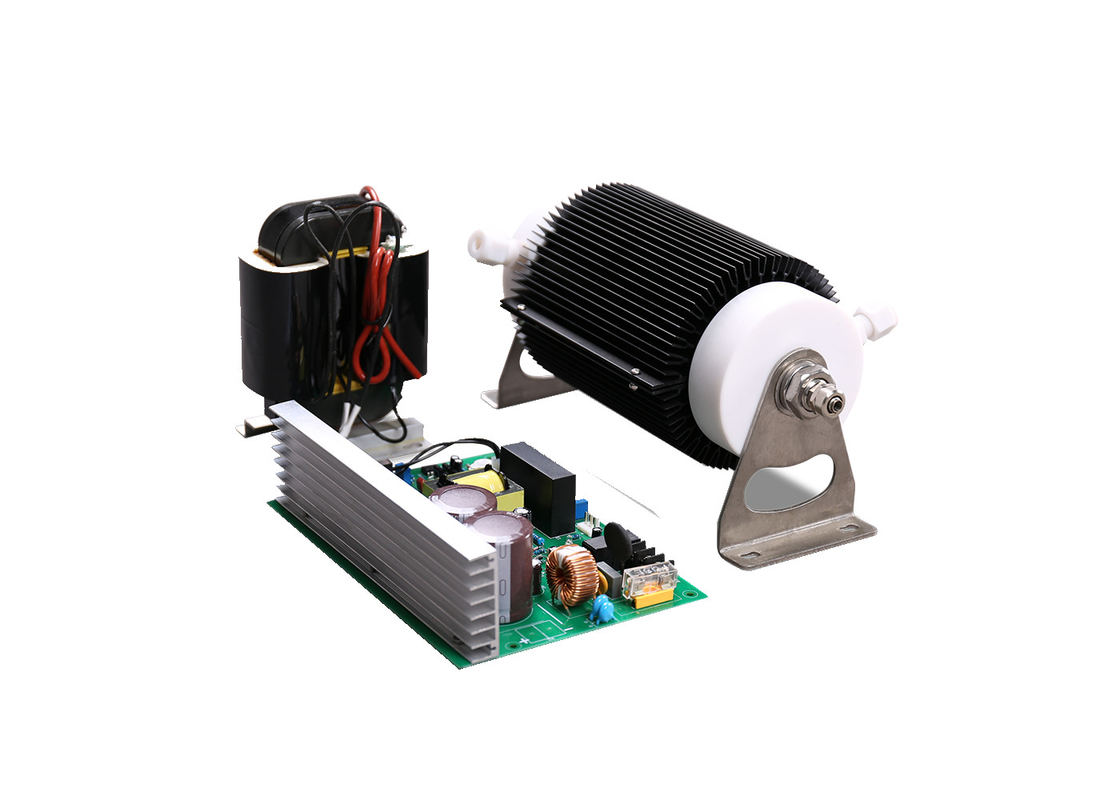

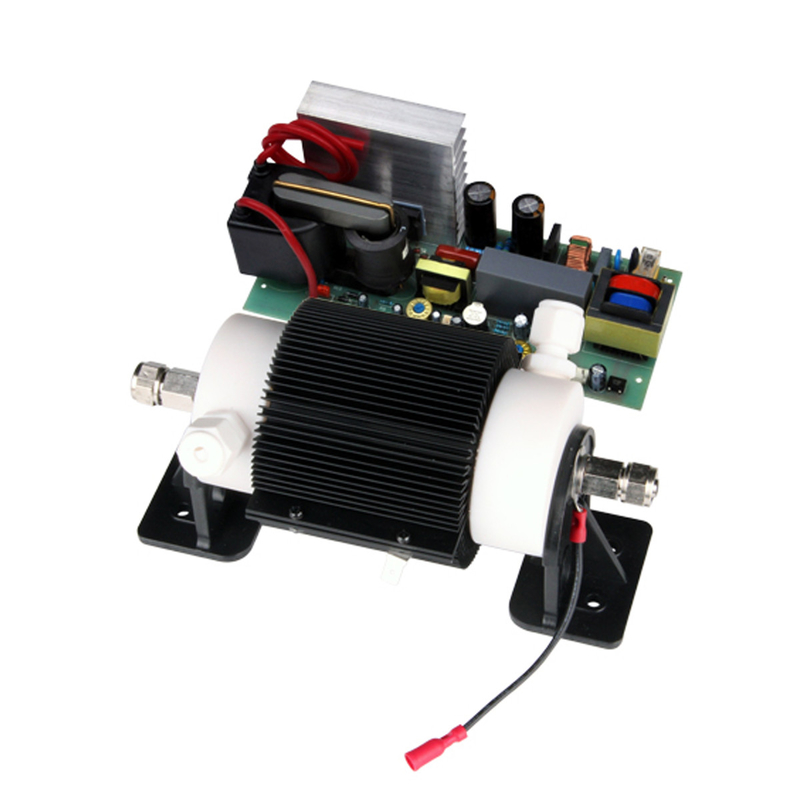

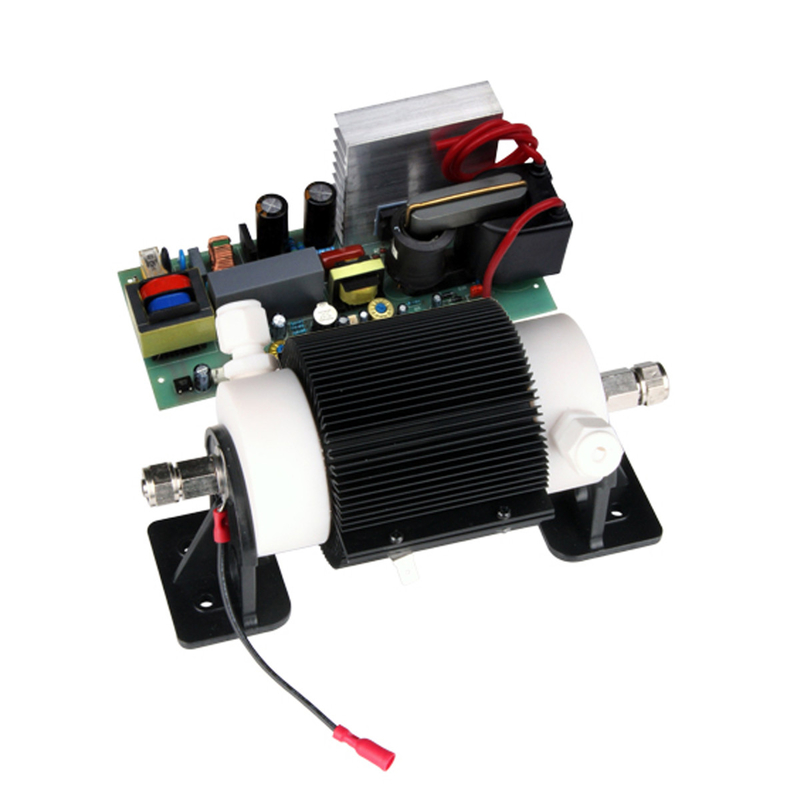

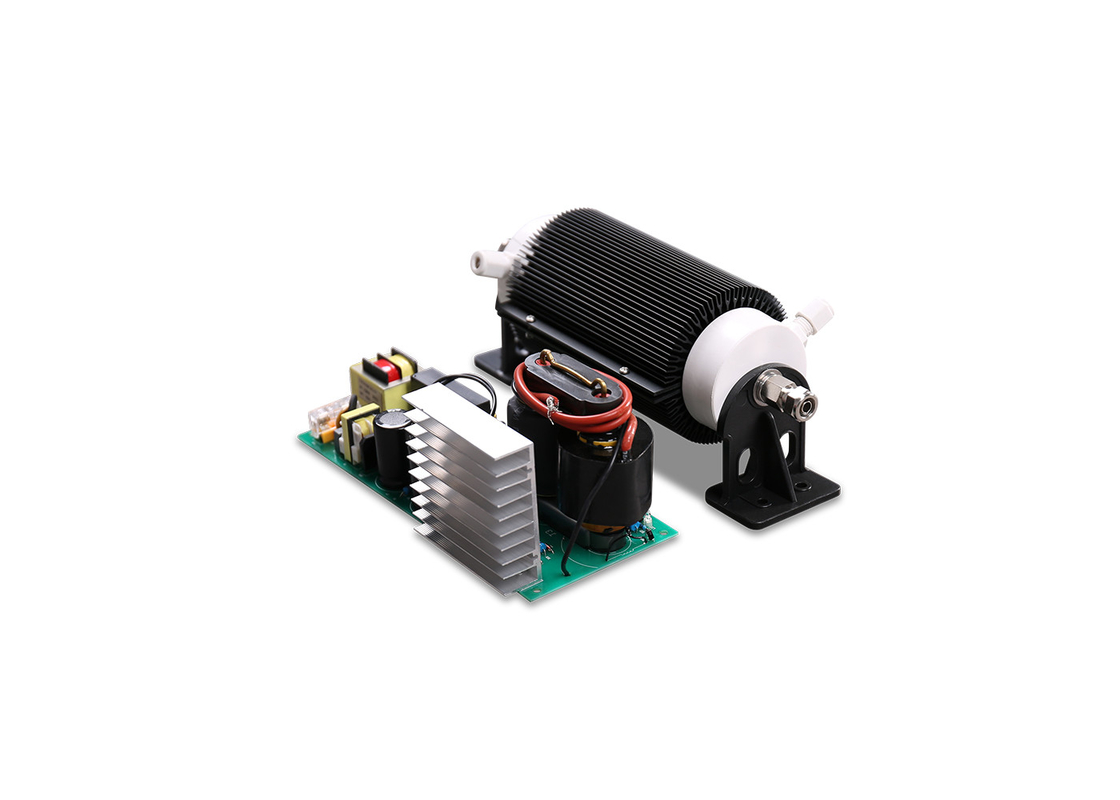

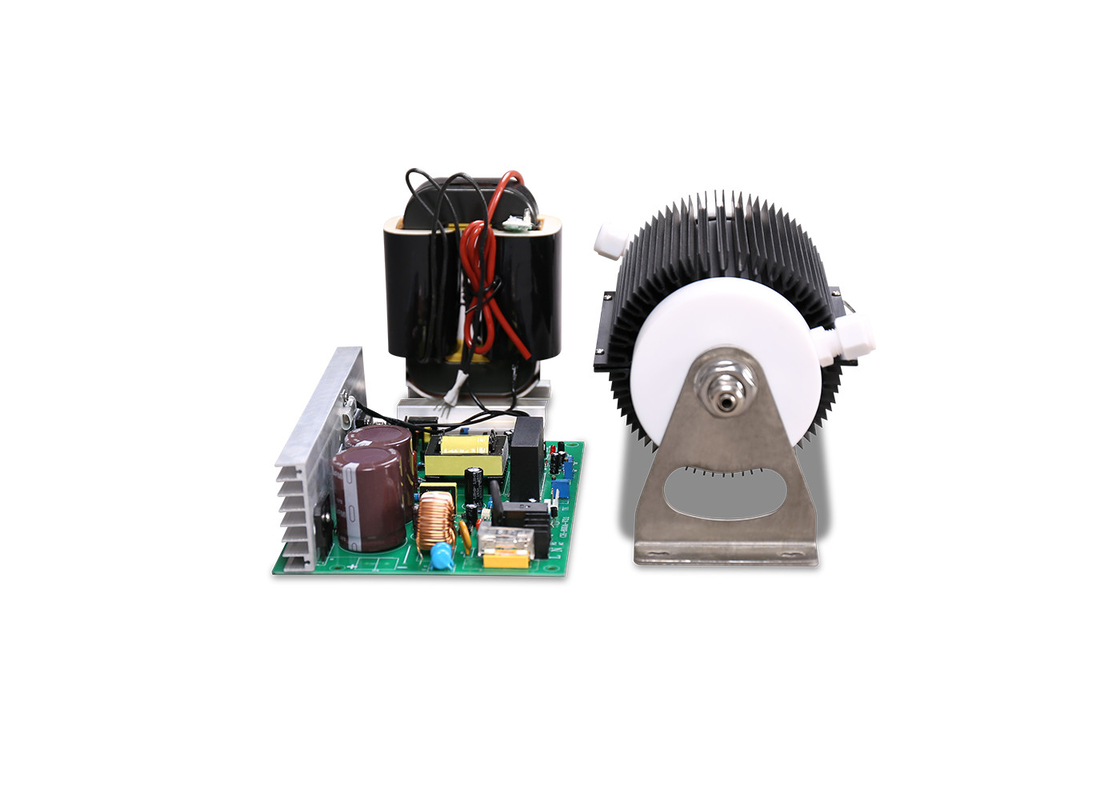

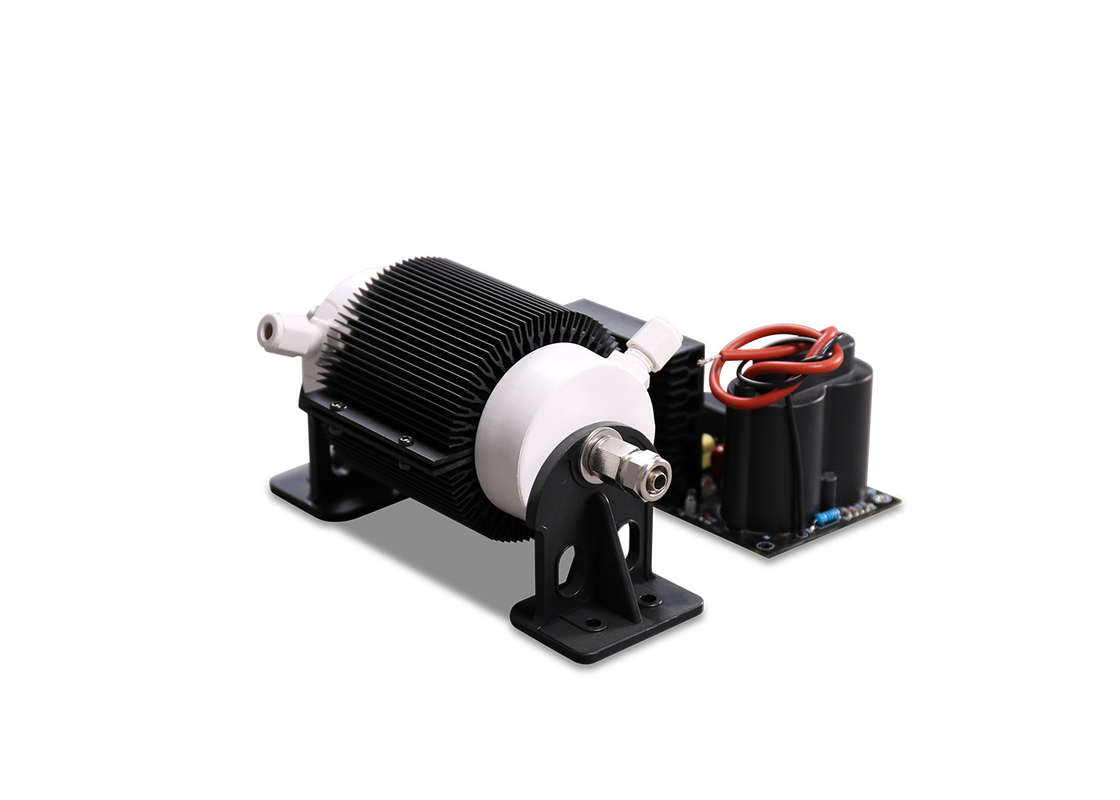

High effective ozone cell 7-50g ozone generator tube for water treatment
-
MaterialCeramic Tube
-
Moq1 Set
-
Warranty1 Year
-
Output1g 3g 5g 6g 7g
-
BrandNetech
-
Adjustable20% To 100%
-
SetWith Power Supply
-
ApplicationAir Purify, Water Treatment
-
KeywordsOzone Generator Tube
-
Place of OriginChina
-
Brand NameOsunshine
-
Model NumberCH-PT
-
Minimum Order Quantity1
-
Pricenegotiate
-
Packaging DetailsSafe double carton package with foam inside for protection
-
Delivery Time3 to 5days
-
Payment Termspaypal,western union,T/T,credit card
-
Supply Ability1000 per weeks
High effective ozone cell 7-50g ozone generator tube for water treatment
High effective ozone cell 7-50g ozone generator tube for water treatment
3. Low working voltage The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size. It is 1/4 smaller than similar products with same capacity.
5. Easy to maintain and install
| Item |
Unit
|
CH-PT | ||||
| 7GM | 7GA | 15GA-1 | 30GA | 50GA | ||
| Oxygen feed flow rate | LPM | 1~3 | 3~5 | 7~9 | 15~18 | |
| Ozone concentration | Mg/L | 70-40 | 66.4~53 | 62~53 | 52~49 | |
| Ozone output | G/Hr | 4.2~7.2 | 11.9~15.9 | 26~28.6 | 46.8~52.9 | |
| Power (220V) | W | ≤100 | ≤100 | ≤190 | ≤500 | ≤500 |
| Cooling way | Air cooling for external electrode,water cooling for internal electrode | |||||
| Cooling water flow rate | LPM | >2 | ||||
| Diameter of cooling water pipe | mm | ED10 | ||||
| Temperature of cooling water | °C | Ambient temperature ±8°C | ||||
| Diameter of cooling fan | mm | 1pcs Dia.150 fan | 2pcs Dia.150 fan | |||
| Diameter of Gas inlet/outlet | mm | ED6 | ED8 | |||
| Ozone tube dimensions | mm | 200×100×105 | 260×100×105 | 300×140×150 | 325×140×150 | |
| Power supply dimensions | mm | 177×66×53 | 201×86×83 | 125×100×95 | 210×146×60 | 210×146×60 |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dealth reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacimethrin efficently and resolve the harmful material in a short time.
Our products are sold all over the world, you can rest assured.
