Ceramic Ozone Generator Tube Parts

Ceramic Ozone Generator Tube Parts

  • High Light

    ceramic ozone tube

    ,

    ozone generator tube

  • Cooling Way
    Air And Water Cooling
  • Ozone Output Control
    20% To100%
  • Ozone Output
    7g 15g 30g 50g
  • Gas Source
    Clean And Dry Air
  • Ozone Generating Way
    Corona Discharge
  • Chassis Material
    Carton Steel Sprayed With Plastic Chassis
  • Place of Origin
    China
  • Brand Name
    Netech
  • Model Number
    CH-PT
  • Minimum Order Quantity
    1 set
  • Price
    For further discussion
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    2-3 working days after received your payment
  • Payment Terms
    paypal,western union,T/T,credit card, L/C
  • Supply Ability
    1000 sets per weeks

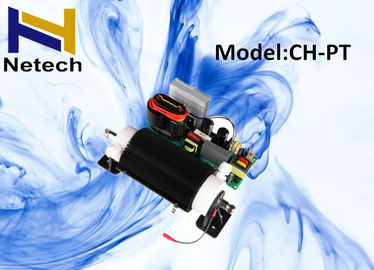

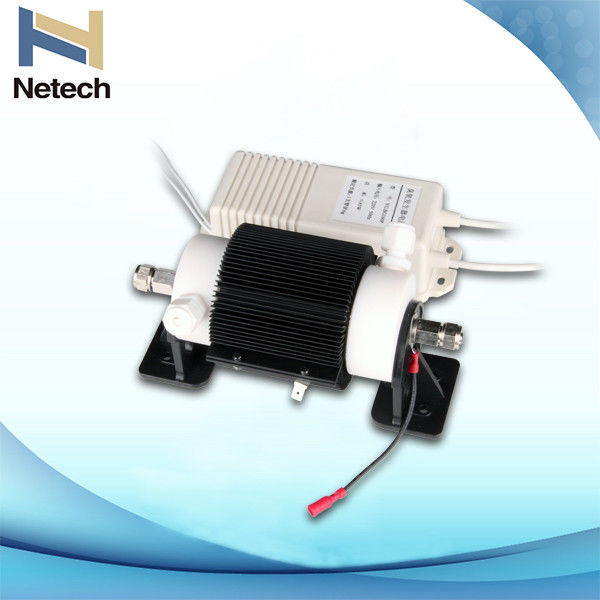

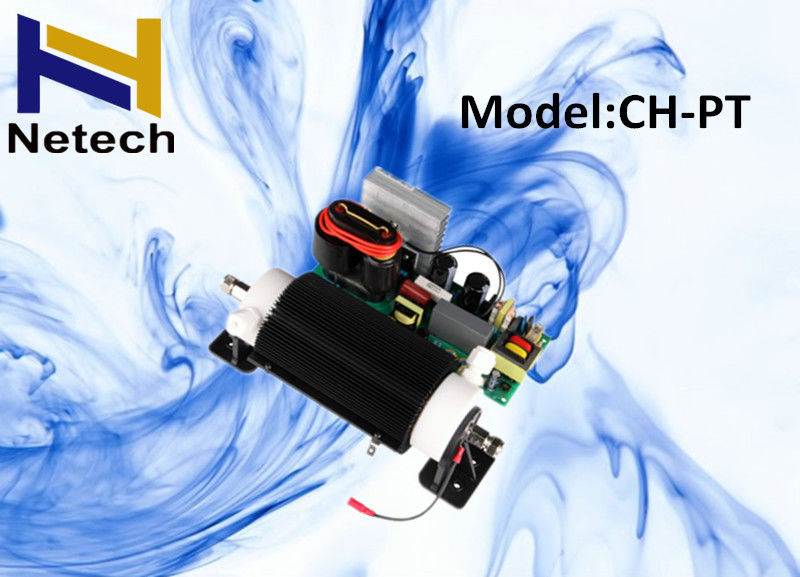

Ceramic Ozone Generator Tube Parts

Ceramic Ozone Generator Tube Parts







Quick Detail



single water cooling ceramic ozone generator tube parts

MOQ 1 set

ozone produced medium ceramic

output 7g 15g 30g 50g

adjustable range 20%-100%

ozone produced method corona discharge

voltage 220V/ 50Hz or 110V/60Hz

warranty repair or change new parts during 12 months





Features:

1. Extremely low rate of ozone decay & high ozone concentration.

Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.

2. Domestic product -- got domestic in 2008.

A The internal electrode cooled by water, external electrode cooled by air (fan).

B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.

C High technology—the thickness of ceramic tube is only 1.70 mm.

3. Low working voltage

The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

4. Small in size.

It is 1/4 smaller than similar products with same capacity.

5.Easy to maintain and install





Specification



Item Unit CH-PT
7GM 7GA 15GA 30GA 50GA
Ambient temperature °C 28 21.9 22 26

Oxygen feed flow rate LPM 1~3 3~5 7~9 15~18
Ozone concentration Mg/L 70-40 66.4~53 62~53 52~49
Ozone output G/Hr 4.2~7.2 11.9~15.9 26~28.6 46.8~52.9
Power (220V) W ≤100 ≤100 ≤190 ≤300 ≤500
Cooling way   Air cooling for external electrode,water cooling for internal electrode
Cooling water flow rate LPM >2
Diameter of cooling water pipe mm ED10
Temperature of cooling water °C Ambient temperature ±8°C
Diameter of cooling fan mm 1pcs Dia.150 fan 2pcs Dia.150 fan
Diameter of Gas inlet/outlet mm ED6 ED8 ED8 ED8
Ozone output adjust range % / 20-100 20-100
Line power supply V/Hz 110/60 220/50
Ozone tube dimensions mm 200×100×105 260×100×105 340×160×125 325×135×150
Power supply dimensions mm 177×66×53 201×86×83 212×90×95 189×146×95 210×146×62
weight of power supply KG 1.27 1.0 2.45 2.35
weight of ozone tube KG 0.91 1.35 1.9 4.3




Quality control



Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.





What we do?


We Provide high-quality ozone generator for : Ozone generator wholesalers

Retailers and online shops


OEM-The custom-made ozone generator are available. Upon customer's idea, drawings, photos etc.
ODM-The modification of the ozone generator after customer's selection is accepted.



Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on problems occurred.

Report on the making process. Marketing feedbacks tracing.



Why choosing us?

1.Having 10 years production experienced .We are trusty business partner.

2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.

3.CH-PT Production Capacity: 3000 sets per month.

4.We have serial products: ozone tube ,UV water cleanrs, ozonegenerators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.

5.We supply OEM service according to customers' requests and give out professional suggestions.

Distributors Offer : Welcome to be our distributor .
