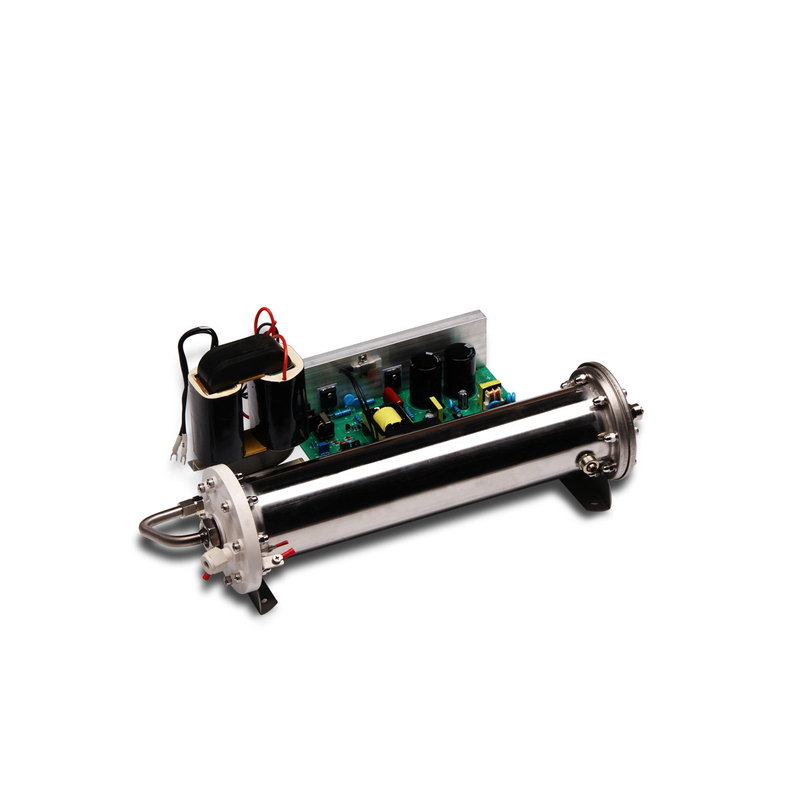

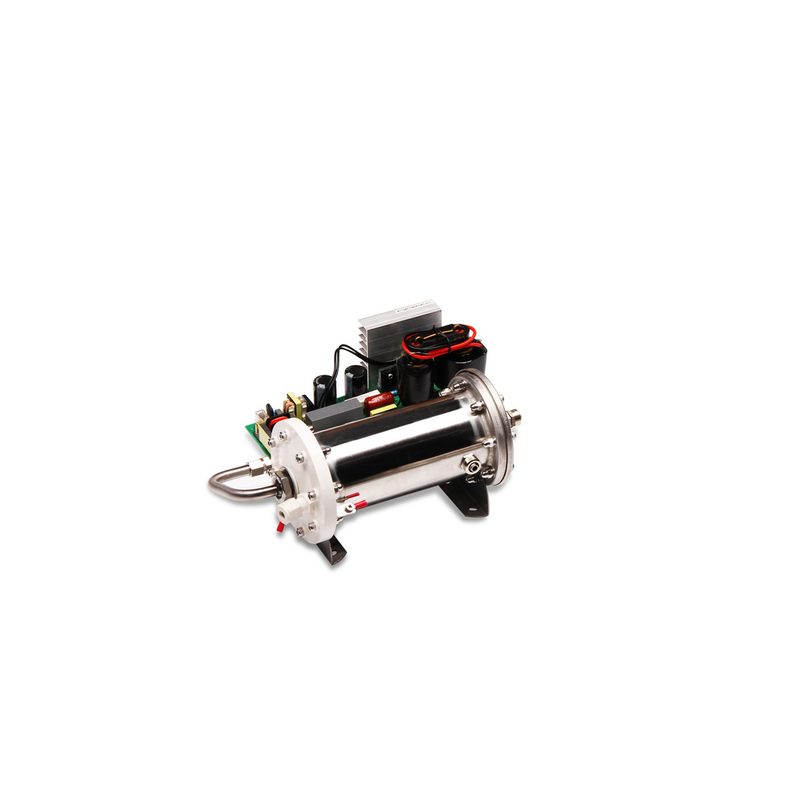

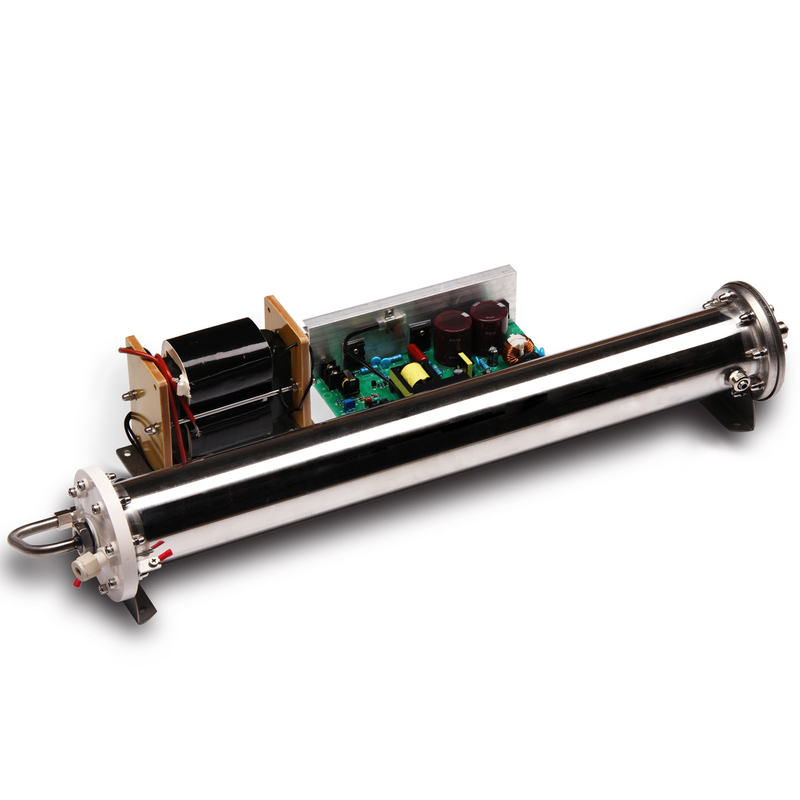

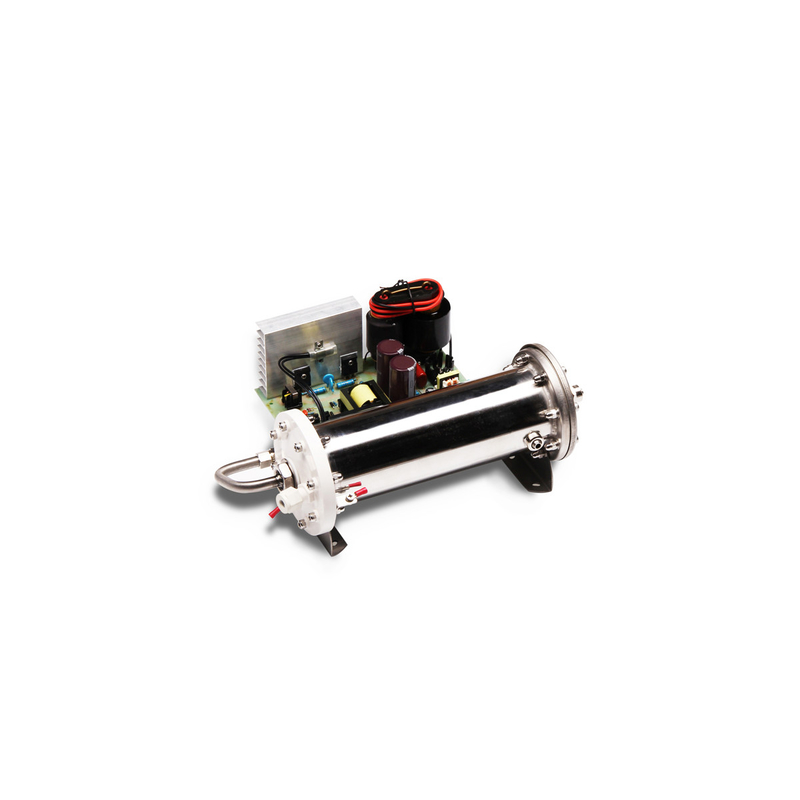

Ozone generator parts components water cooling enamel ozone tube
Ozone generator parts components water cooling enamel ozone tube
1. Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless stee l external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
Item | Unit | CH-PC18G-1 | CH-PC30G | CH-PC40G | CH-PC60G | CH-PC80G |
Ambient temperature | ℃ | 23 | 23 | 23.9 | 23.9 | 24 |
Ambient humidity | % | 38 | 38 | 37 | ||
Oxygen flow rate | LPM | 1~4 | 2~8 | 3~10 | 5~17 | 8~20 |
Ozone concentration | Mg/L | 112~78 | 123~72 | 123~70 | 120-72 | 118-74 |
Ozone output | G/Hr | 6.7-18.7 | 14.8~34.6 | 22.1-42 | 36-73 | 56-88 |
Power | Kw | ≤0.22 | ≤0.3 | ≤0.4 | ≤0.6 | ≤0.8 |
Cooling method | Water cooling for internal & external electrodes | |||||
Cooling water flow rate | LPM | ≥2 | ||||
Cooling water temperature | ℃ | Ambient temperature ± 8℃ | ||||
Diameter of gas inlet/outlet | mm | 1.Air inlet & ozone outlet: EDφ8mm | ||||
Diameter of water inlet/outlet | mm | EDφ10mm | ||||
Adjustable range | % | 20-100 | ||||
Power supply | V/Hz | 110/220V 60/50HZ | ||||
Fuse | A | 3 | 5 | 10 |
Ozone generator parts components water cooling enamel ozone tube
Ozone generator parts components water cooling enamel ozone tube
