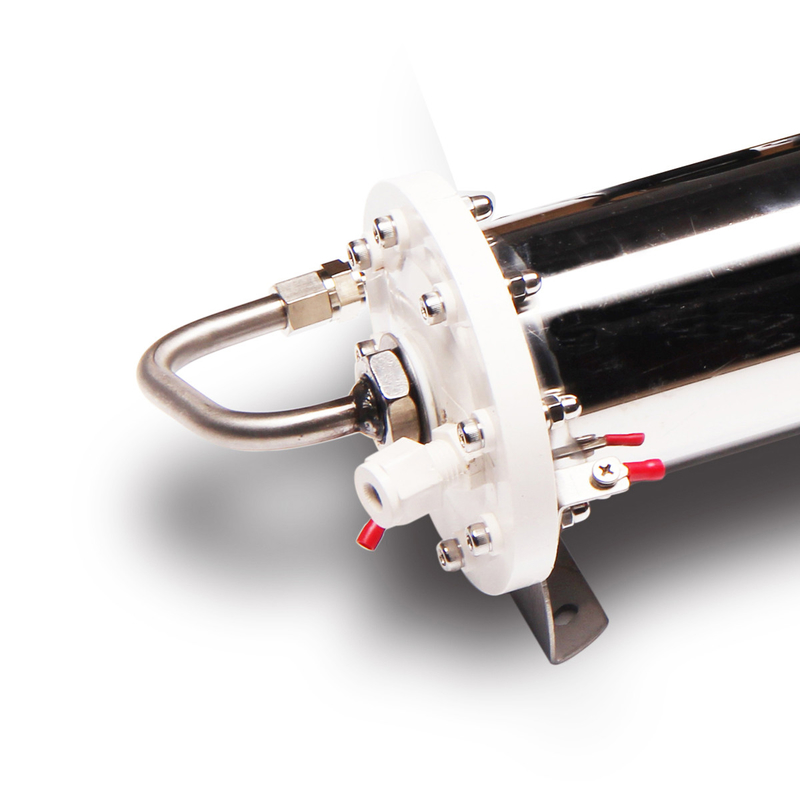

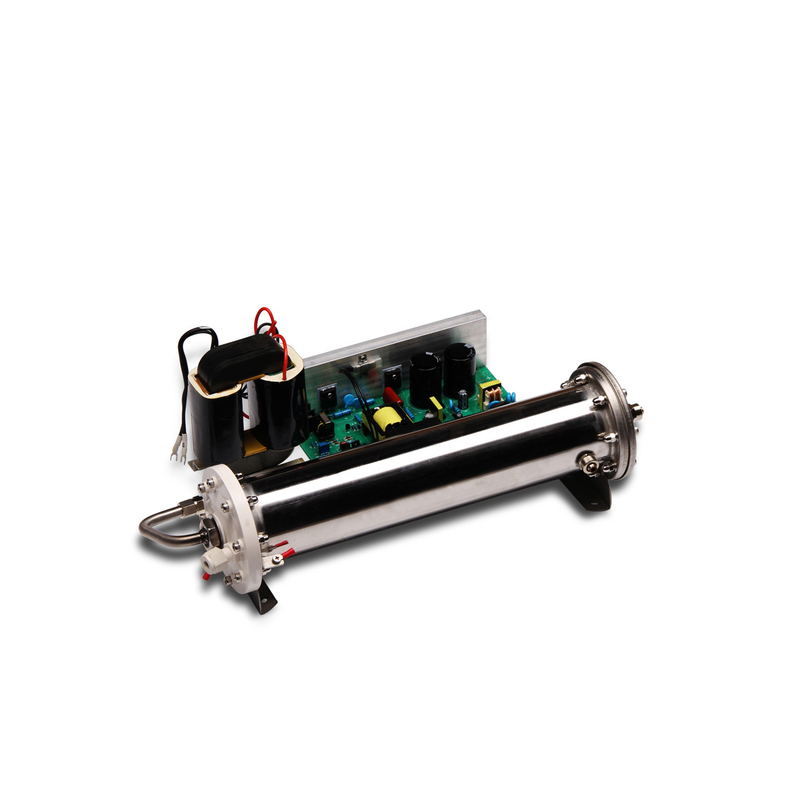

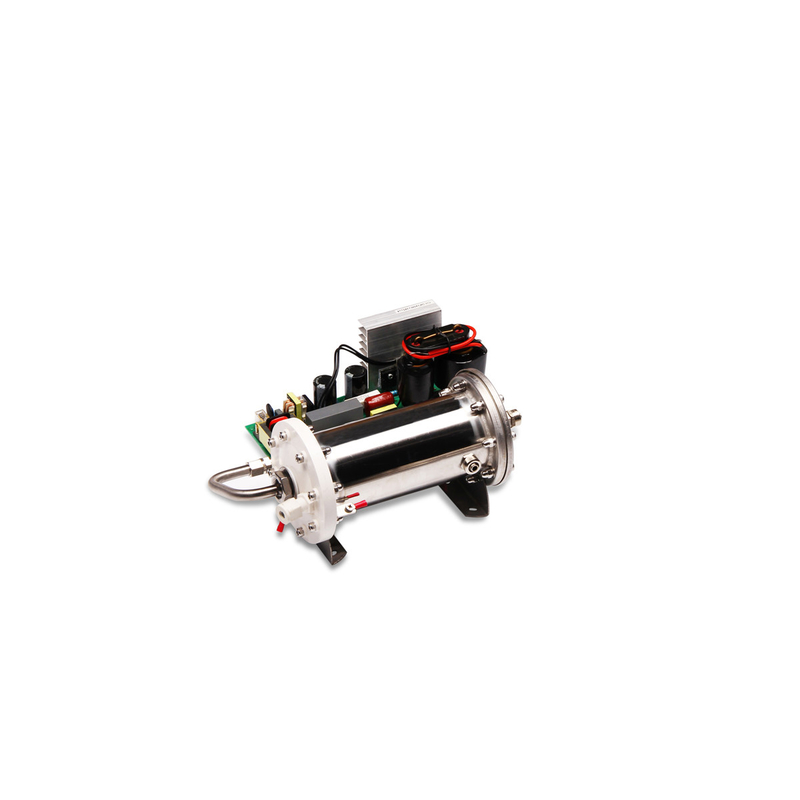

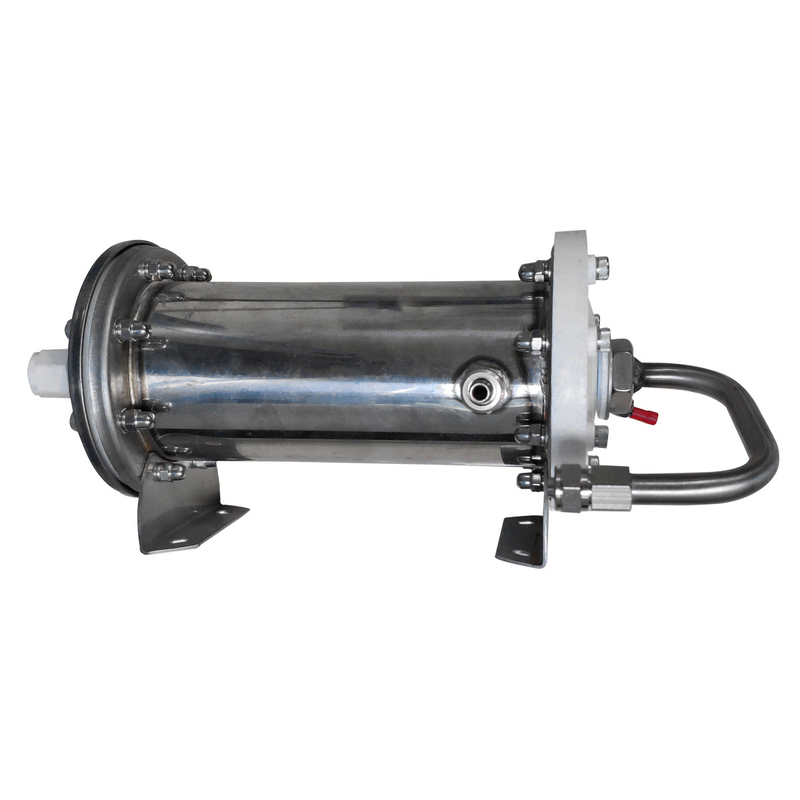

NETECH System Ozone Generator Water Treatment Accessories Adjustable Enamel Tube

 Ozone Generator Parts adjustable water cooled ozone generator enamel tube for water

1. Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and
stainless stee l external electrode, it produces high concentration ozone output. It uses insulation materials for connections,
for preventing creepage.
2. Cooling way
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for
ensuring high ozone concentration output.

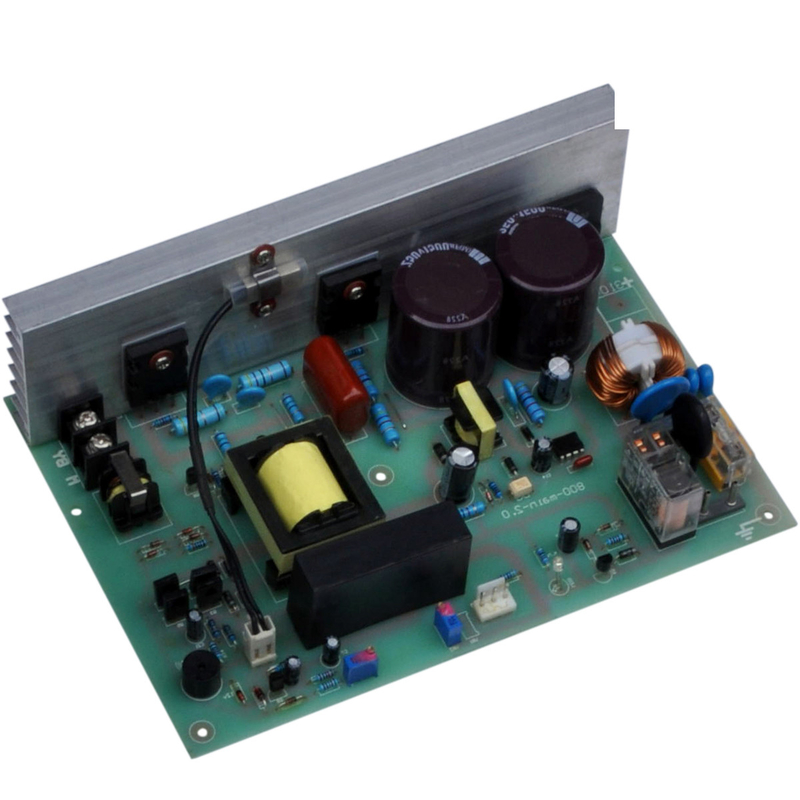

3. Adjustable ozone output: 20-100%. Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on
demand to achieve accuracy control.
4. High ozone concentration & output

CH-PC 18-80G/Hr

Item	Unit	CH-PC18G-1	CH-PC30G	CH-PC40G	CH-PC60G	CH-PC80G
Ambient temperature	℃	23	23	23.9	23.9	24
Ambient humidity	%	38	38	37
Oxygen flow rate	LPM	1~4	2~8	3~10	5~17	8~20
Ozone concentration	Mg/L	112~78	123~72	123~70	120-72	118-74
Ozone output	G/Hr	6.7-18.7	14.8~34.6	22.1-42	36-73	56-88
Power	Kw	≤0.22	≤0.3	≤0.4	≤0.6	≤0.8
Cooling method	/	Water cooling for internal & external electrodes
Cooling water flow rate	LPM	≥2
Cooling water temperature	℃	ambient temperature ± 8℃
Diameter of gas inlet/outlet	mm	1.Air inlet & ozone outlet: EDφ8mm
Diameter of water inlet/outlet	/	EDφ10mm
Adjustable range	%	20-100
Power supply	V/Hz	110/220V 60/50HZ
Fuse	A	3		5	10
Ozone tube dimension	mm	285*160*125	340*160*125	460*160*125	600*160*125	705*160*125
Power supply dimension	mm	212*90*95	189*146*95		210*146*62
Ozone tube weight	Kg	2.5	3	3.6	4.9	5.45
Power supply weight	Kg	1			2.4
