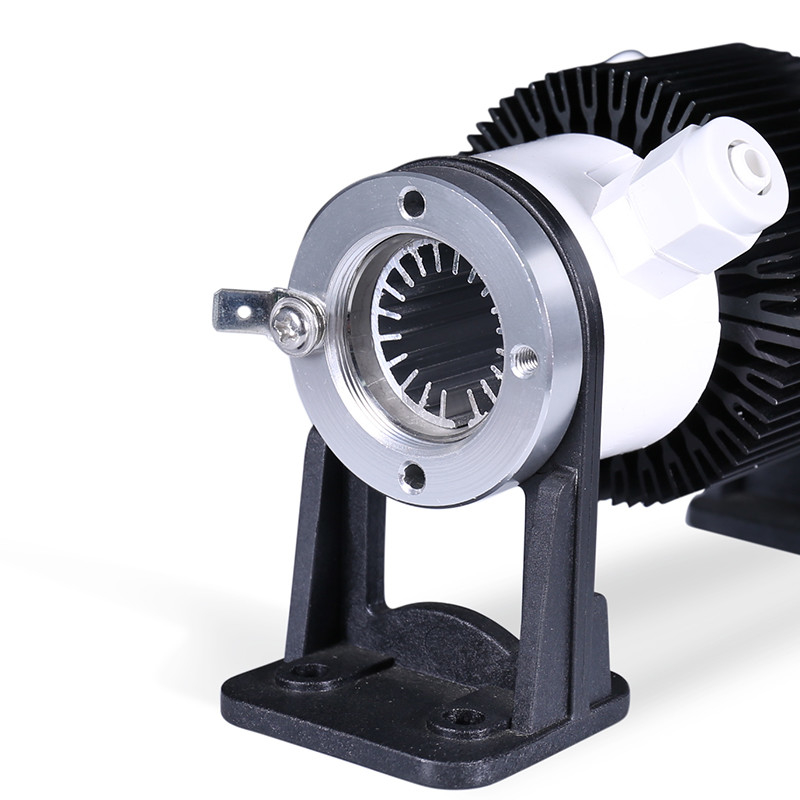

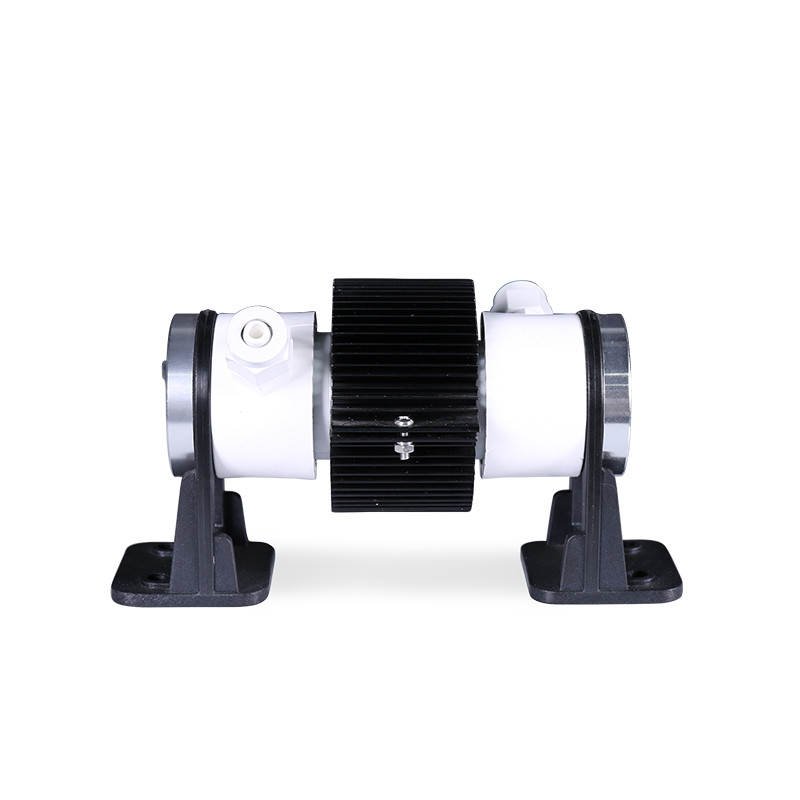

high quality quartz 3-10G ozone tube with adjustable circuit board 110v 220v DC12V
Features:
Ozone output: 3g/h, 5g/h, 6g/h, 7g/h, 10g/h
Item | Unit | CH-PBF | |||||
Model no. | / |
CH-PBF3GM CH-PBF3GA |
CH-PBF5GM CH-PBF5GA |
CH-PBF6GM CH-PBF6GA |
CH-PBF7GM CH-PBF7GA |
CH-PBF10GM CH-PBF10GA |
|
Oxygen flow rate | L/min | 0.5-1 | 0.5-2.5 | 1-3 | 2-4 | 2-5 | |
Ozone concentration | mg/L | 30-70 | 30-70 | 30-70 | 30-70 | 30-70 | |
Ozone output | g/h | 2.1-2.9 | 2.2-5.1 | 3.7-6.1 | 4.2-7 | 6.5-11.7 | |
Power | W(±10%) | 50 | 55 | 65 | 75 | 85 | |
Voltage | V | M:AC220V A:DC12V/DC24V/AC110V/AC220V | |||||
Cooling way | / | Air cooling | |||||
Diameter of cooling fan | mm | 120 | 150 | ||||
Gas tube outer Diameter | mm | EDФ6 | |||||
Ozone tube dimension | mm | 164*80*90 | 185*80*90 | 203*80*90 | 213*80*90 | 250*80*90 | |
Ozone tube net weight | kg | 0.55 | 0.66 | 0.75 | 0.82 | 0.9 | |
Remark:

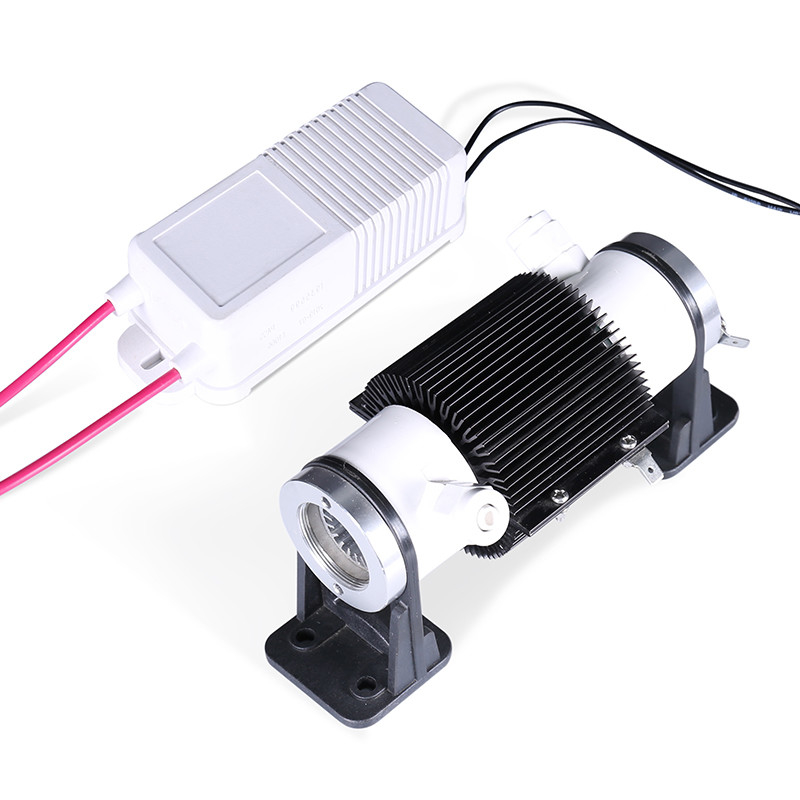

* M: It means Module power supply

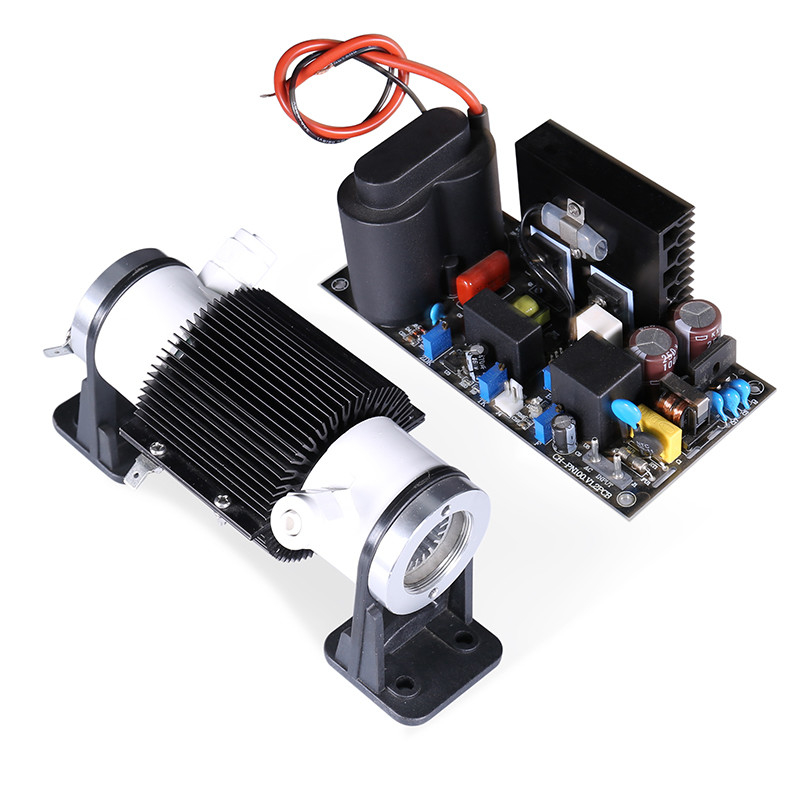

* A: It meansAdjustable power supply
*The above parameters are detected at an ambient temperature of 20°C and an oxygen source.
