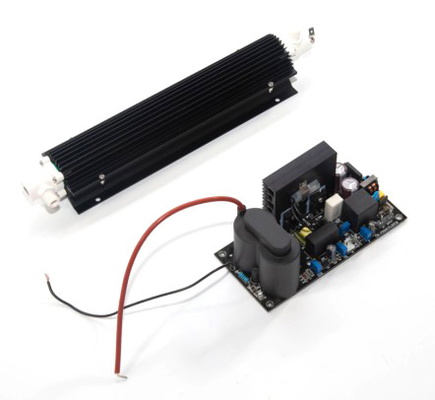

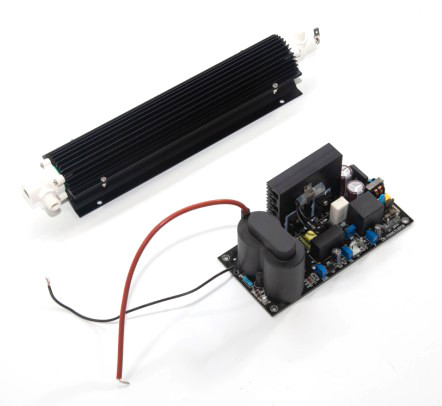

Durable high concentration quartz glass ozone tube ozone components for air water sterilzation
Descriptions:
1. Extremely low rate of ozone decay & high ozone concentration.
2. Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
Specifications
Item | Unit | CH-PSF3M | CH-PSF5M / CH-PSF5A | |||||
Ambient temperature | ℃ | 26 | 26 | |||||
Ambient humidity | % | 77 | 77 | |||||
Power | W | 50 | 66 | |||||
Oxygen feed flow rate | LPM | 2 | 1.5 | 1 | 0.5 | 2 | 1 | 0.5 |
Ozone concentration | Mg/L | 32.9 | 37 | 39 | 47.2 | 42.5 | 47.3 | 53.4 |
Ozone output | G/Hr | 3.95 | 3.3 | 2.34 | 1.42 | 5.1 | 2.83 | 1.6 |
Ozone output adjustable range | % | / |
CH-PSF5M: / CH-PSF5A: 20-100% |
|||||
Line power supply | V/Hz | 220v/50hz | 220v/50hz | |||||
Cooling way | / | Air cooling | Air cooling | |||||
Diameter of cooling fan | mm | 150*150mm | 150*150mm | |||||
Diameter of gas inlet/outlet | mm | EDФ6 | EDФ6 | |||||
Power supply dimensions | mm | 158*73*54 |
CH-PSF5M: 175*66*57 CH-PSF5A: 158*75*68 |
|||||
ozone tube dimensions | mm | 160*62*47 | 205*62*47 | |||||
Ozone tube weight | Kg | 0.282 | 0.381 | |||||
Power supply weight | Kg | 0.59 |
CH-PSF5M: 0.72 CH-PSF5A: 0.52 |
After sales service
We provide 12month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dealth reported caused by ozone poisoning.
