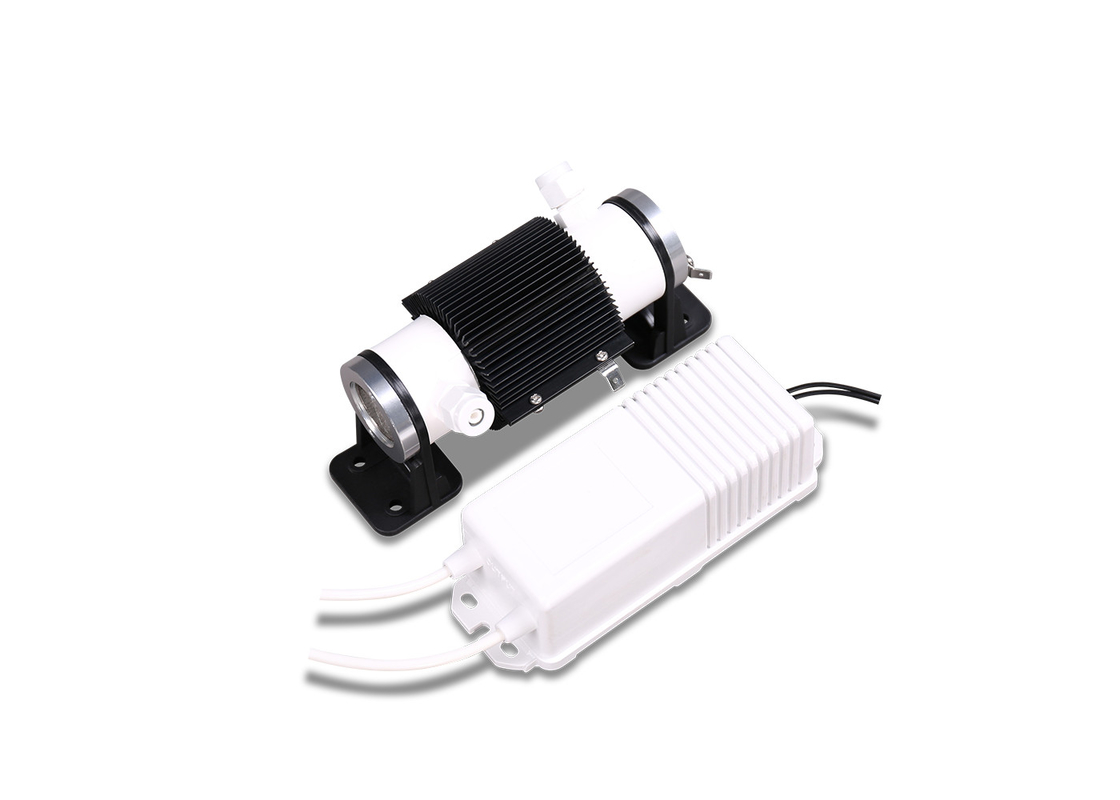

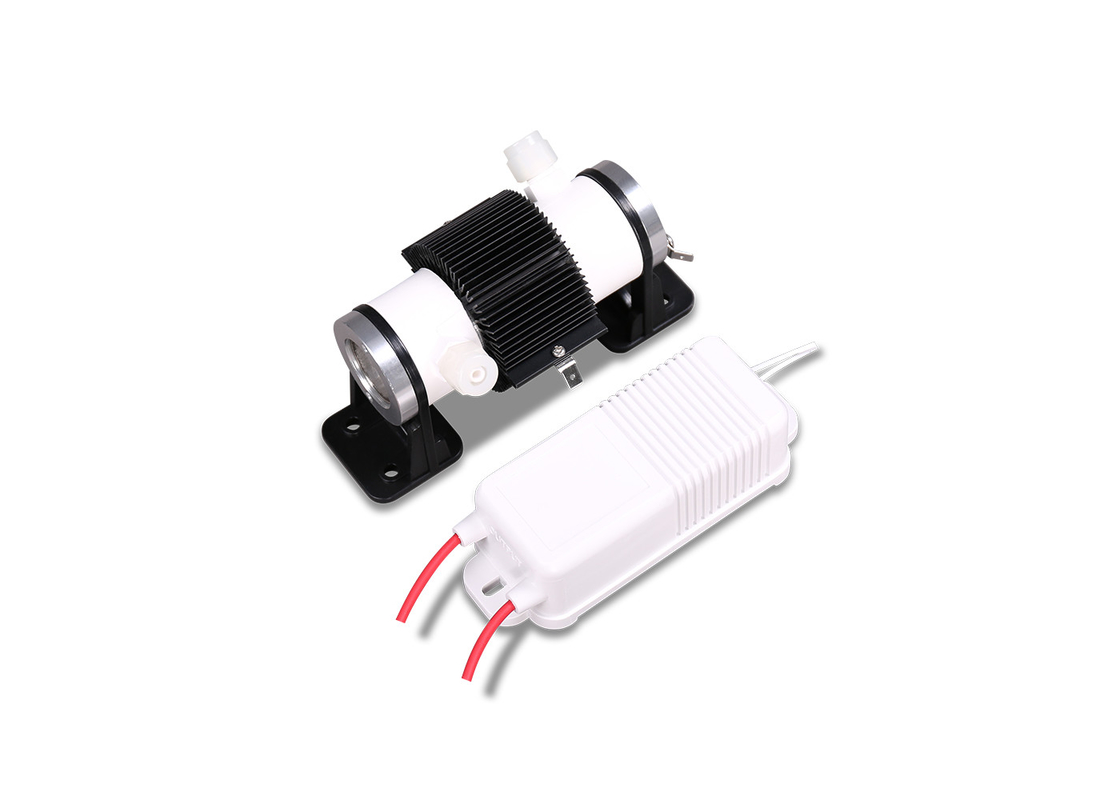

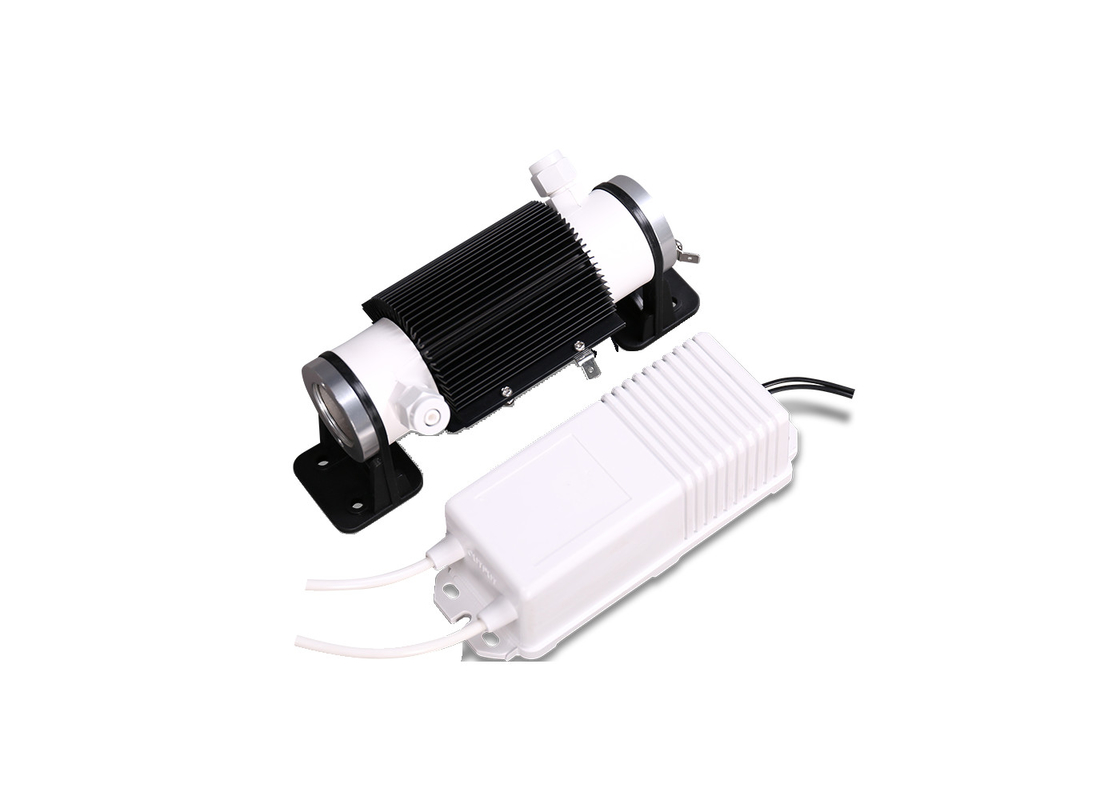

3g-7g Adjustable air cooling ceramic ozone tube ozone generator parts components
3g-7g Adjustable air cooling ceramic ozone tube ozone generator parts components
Features:
1.Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2.Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3.Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4.Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5.Easy to maintain and install
Ozone output: 3g/h, 5g/h, 6g/h, 7g/h
Item | Unit | CH-PTF | ||||
Model No. | / |
CH-PTF3GM CH-PTF3GA |
CH-PTF5GM CH-PTF5GA |
CH-PTF6GM CH-PTF6GA |
CH-PTF7GM CH-PTF7GA |
CH-PTF10GM CH-PTF10GA |
Oxygen flow rate | L/min | 0.5-1 | 0.5-2.5 | 1-3 | 1-3 | 1-3 |
Ozone concentration | mg/L | 70-49 | 72-34 | 63-34 | 71-39 | 90-58 |
Ozone output | g/h | 2.1-2.9 | 2.2-5.1 | 3.7-6.1 | 4.2-7 | 5.7-10.4 |
Power | W(±10%) | 50 | 55 | 80 | 90 | 100 |
Working frequency | KHz(±10%) | 15.9 | 16 | 22.1 | 17.8 | 15.1 |
Working high pressure | KV(±10%) | 2.8 | 3 | 2.7 | 2.6 | 3.9 |
Voltage | / | M:AC220V A:DC12V/DC24V/AC110V/AC220V | ||||
Cooling way | / | Air cooling |
Remark:
* M: It means Module power supply
* A: It meansAdjustable power supply
*The above parameters are detected at an ambient temperature of 20°C and an oxygen source.
*The specific parameters and configuration are subject to the actual product.
*Different working condition there will be 10%-20% different of ozone capacity.
