SS Housing 100G Ozone Generator Tube 380V For Drinking Water Sterilization System

100G ozone tube for ozone components ozone generator tube

100G ozone tube for ozone components ozone generator tube

Ozone system equipment components:

This ozone system consists of ozone discharge chamber, smart power supply and high voltage transformers.

System technological process:

The ozone system use stainless steel discharge chamber, and with high dielectric constant, uniform wall thickness, good ovality, high temperature resistance and moisture resistance quartz tubes, with smart and reliable power supply and high voltage transformer.

Features:

1. Free of insurance tube, not easy to break down;

2. Industrial processing, good concentricity. High processing accuracy;

3. The internal and external electrodes are made of 316L material, no rust, no influence on conductive efficiency;

4. Can be arranged honeycomb type, single machine can do a large output, high production, high efficiency, high concentration.

5. Ozone concentration can be around.80~120 Mg/L, which is much higher than conventional products.

6. Easy to maintain and install.

100G ozone tube for ozone components ozone generator tube

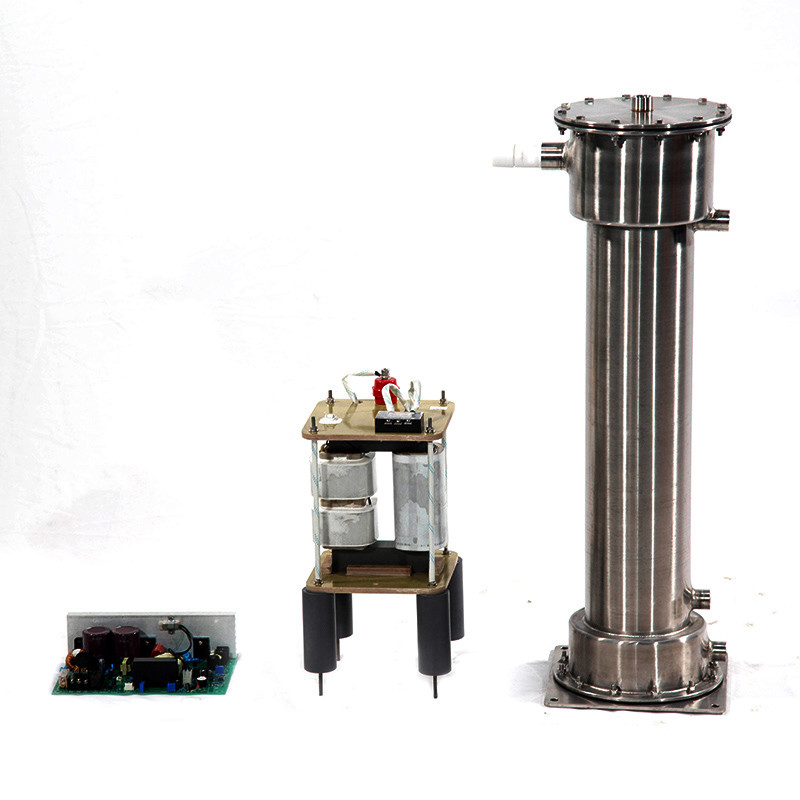

CH-DGP 100G, 200G, 300G, 500G, 1000G Ozone discharge chamber with power supply and transformer



Item	CH-DGP Series ozone Generator
Ozone Output (G/Hr)	100G/Hr	200G/Hr	300G/Hr	500G/Hr
Ozone Concentration(mg/L)	90-110	80-120	80-120	80-120
Oxygen flow rate	1.2m³/h	1.6m³/h	3m³/h	4Nm3/h
Power supply	800W	5.5KW	7.5KW	15KW
Power supply size (mm)	210*150*60	248*160*186	248*160*186	322*208*194
Power supply weight (KG)	0.65	3	5	6.7

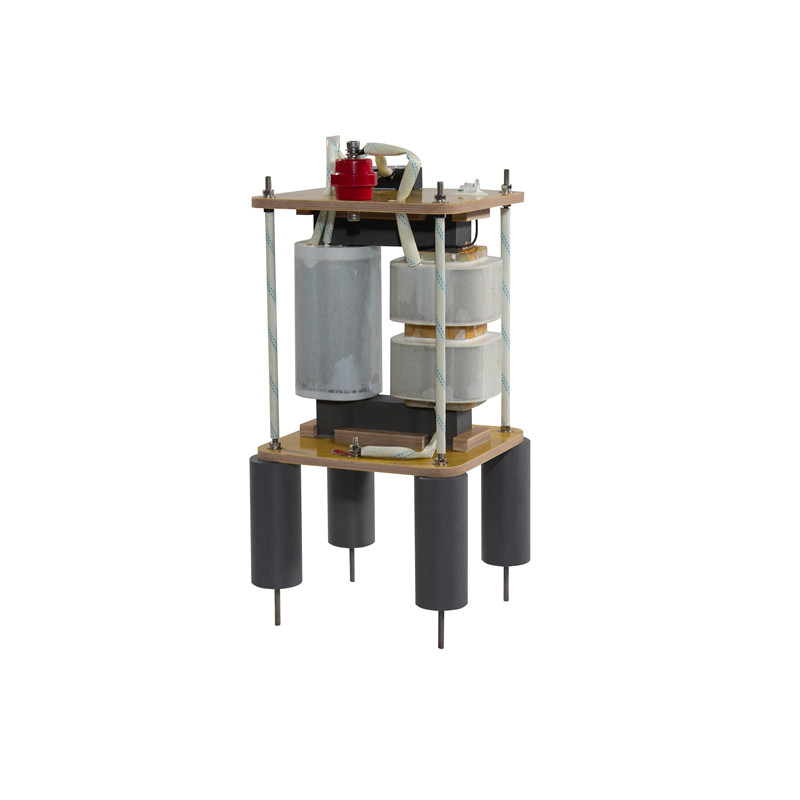

Transformer consumption	2 KW	5 KW	5 KW	15 KW
Transformer size(mm)	180*175*370	180*175*370	180*175*370	345*305*545
Transformer weight (KG)	5.7	8.8	8.8	17

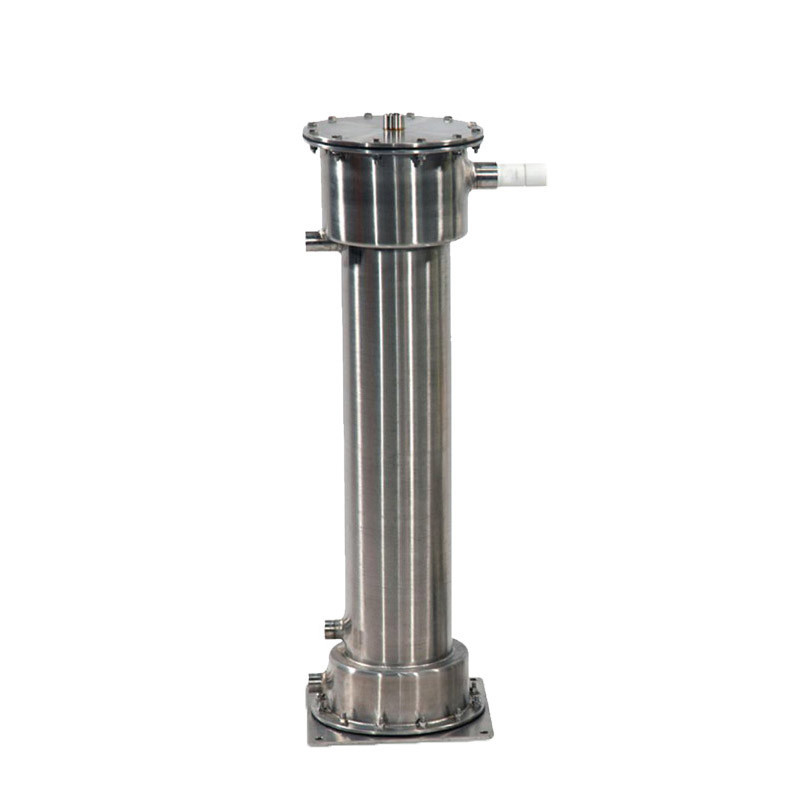

Ozone discharge chamber size (mm)	300*220*720	340*270*720	390*320*725	315*470*1235
Ozone chamber weight (KG)	18.2	31	41	41





100G ozone tube for ozone components ozone generator tube

100G ozone tube for ozone components ozone generator tube

Company Introdcution:

Guangzhou OSUNSHINE Environmental Technology Co., Ltd., based on the parent company of Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone generator, Oxygen machine, Sodidum Hypochlorite generator, Ozone tube, Titanium anode plate, accessories production, development and application of products etc.
