200G smart power supply ozone machine parts ozone tube for drinking water
200G smart power supply ozone machine parts ozone tube for drinking water
Ozone system equipment components:

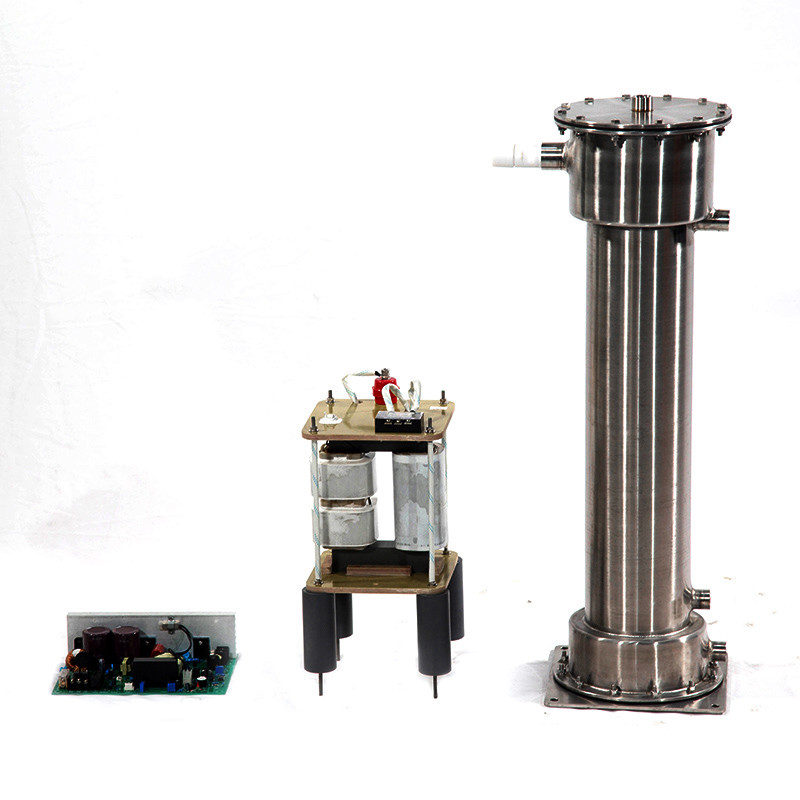

This ozone system consists of ozone discharge chamber, smart power supply and high voltage transformers.
System technological process:

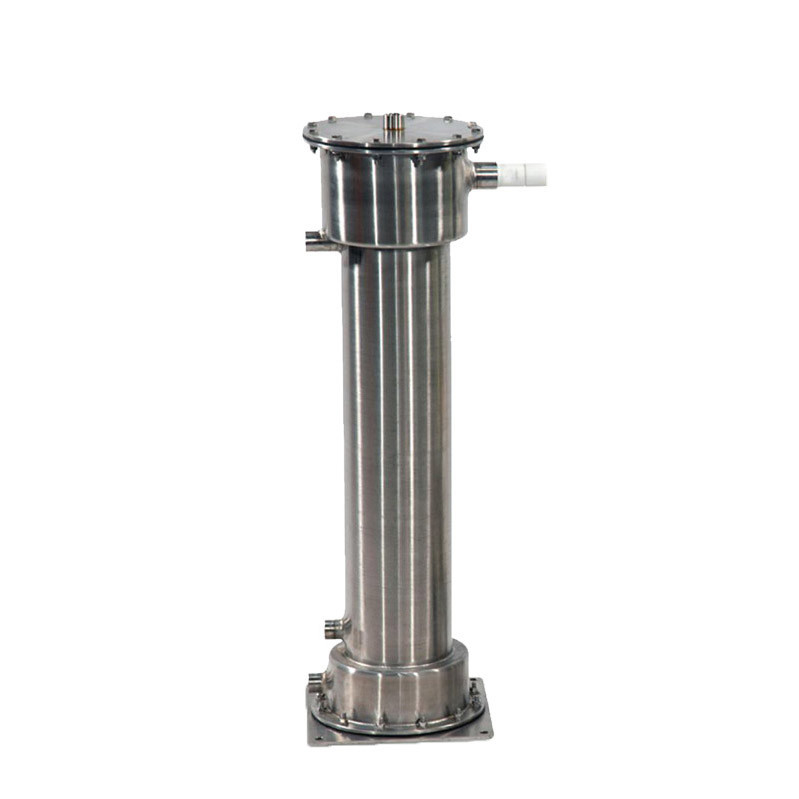

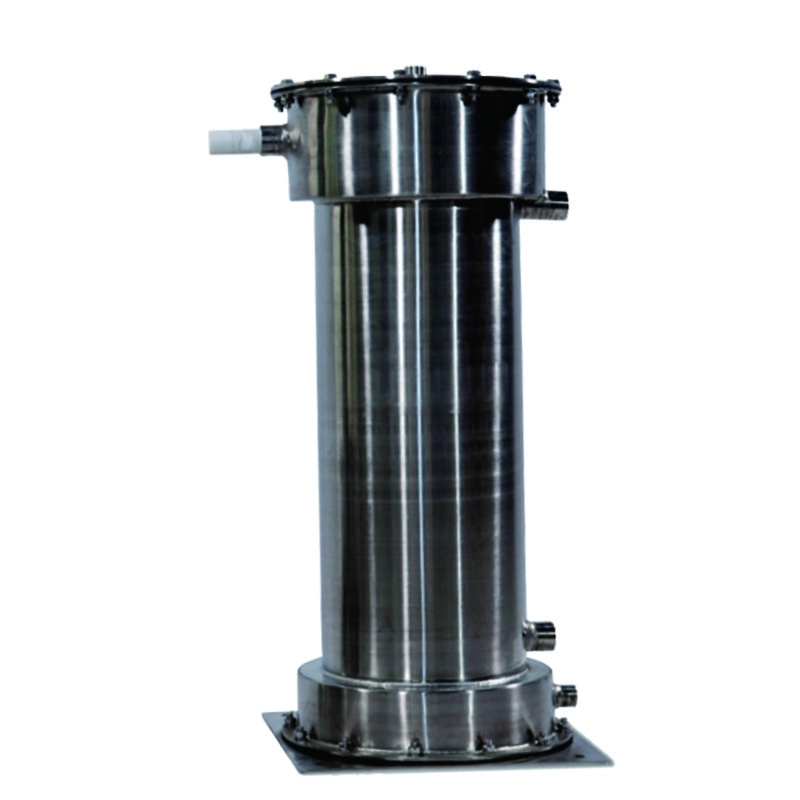

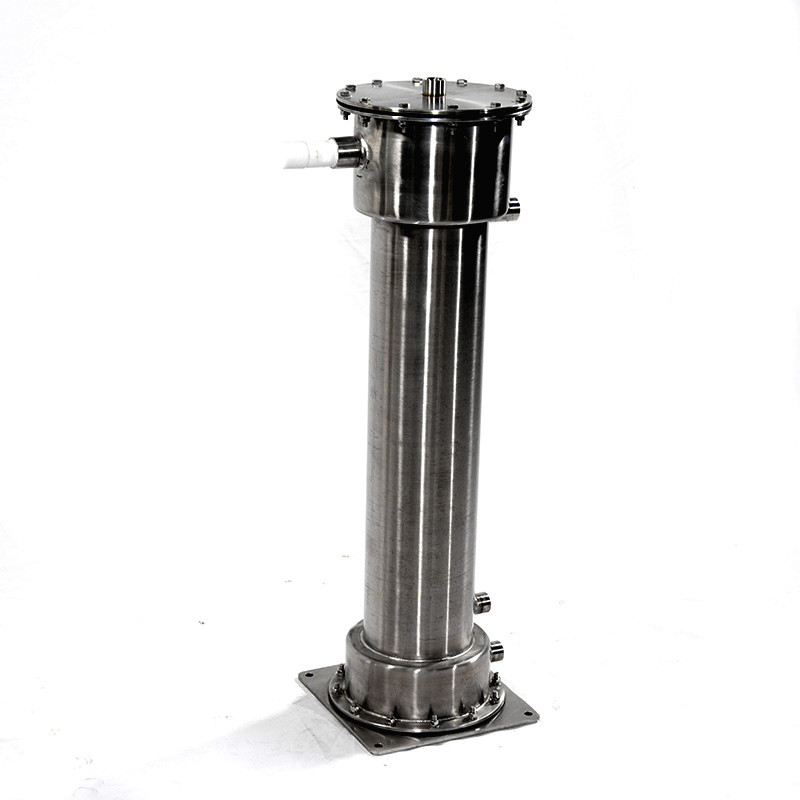

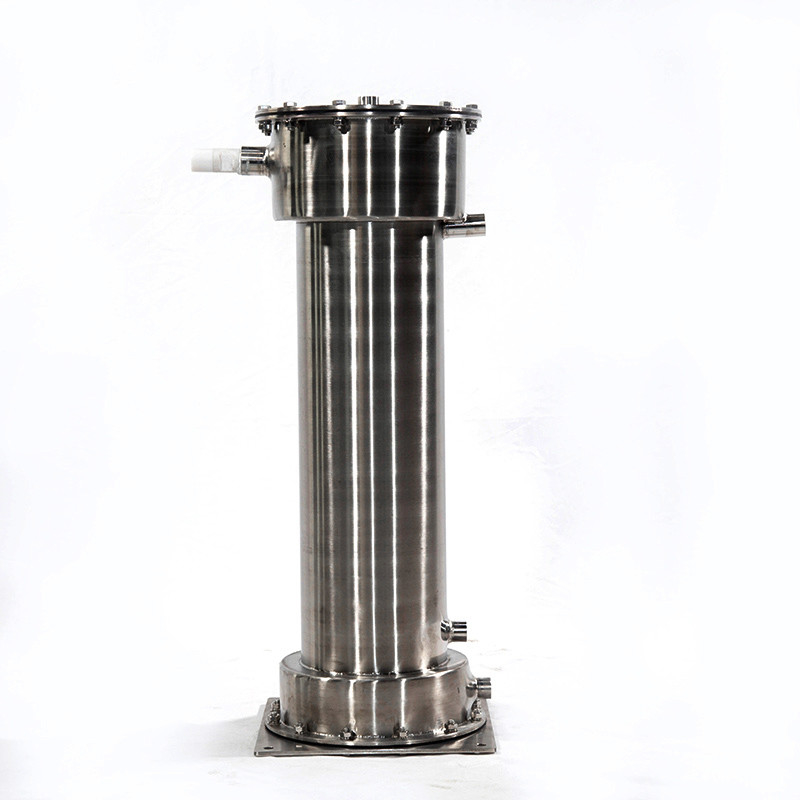

The ozone system use stainless steel discharge chamber, and with high dielectric constant, uniform wall thickness, good ovality, high temperature resistance and moisture resistance quartz tubes, with smart and reliable power supply and high voltage transformer.
200G smart power supply ozone machine parts ozone tube for drinking water
CH-DGP 100G, 200G, 300G, 500G, 1000G Ozone discharge chamber with power supply and transformer
Item | CH-DGP Series ozone Generator | |||
Ozone Output (G/Hr) | 100G/Hr | 200G/Hr | 300G/Hr | 500G/Hr |
Ozone Concentration(mg/L) | 90-110 | 80-120 | 80-120 | 80-120 |
Oxygen flow rate | 1.2m³/h | 1.6m³/h | 3m³/h | 4Nm3/h |
Power supply | 800W | 5.5KW | 7.5KW | 15KW |
Power supply size (mm) | 210*150*60 | 248*160*186 | 248*160*186 | 322*208*194 |
Power supply weight (KG) | 0.65 | 3 | 5 | 6.7 |
Transformer consumption | 2 KW | 5 KW | 5 KW | 15 KW |
Transformer size(mm) | 180*175*370 | 180*175*370 | 180*175*370 | 345*305*545 |
Transformer weight (KG) | 5.7 | 8.8 | 8.8 | 17 |
Ozone discharge chamber size (mm) | 300*220*720 | 340*270*720 | 390*320*725 | 315*470*1235 |
Ozone chamber weight (KG) | 18.2 | 31 | 41 | 41 |
200G smart power supply ozone machine parts ozone tube for drinking water
