Air Cooling Ceramic Tube Ozone Generator Accessories Quartz Water Treatment Parts

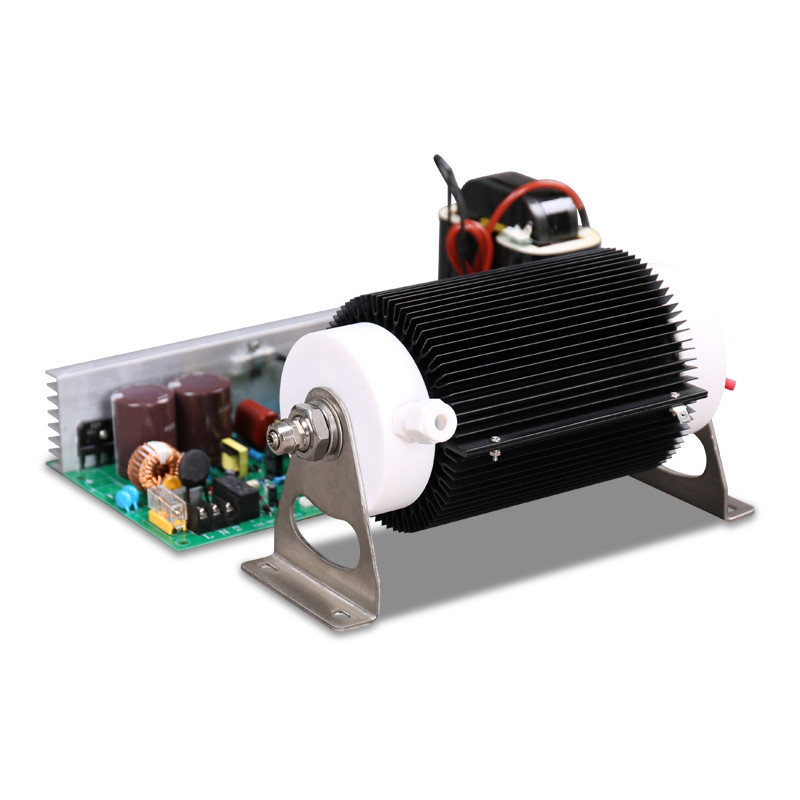

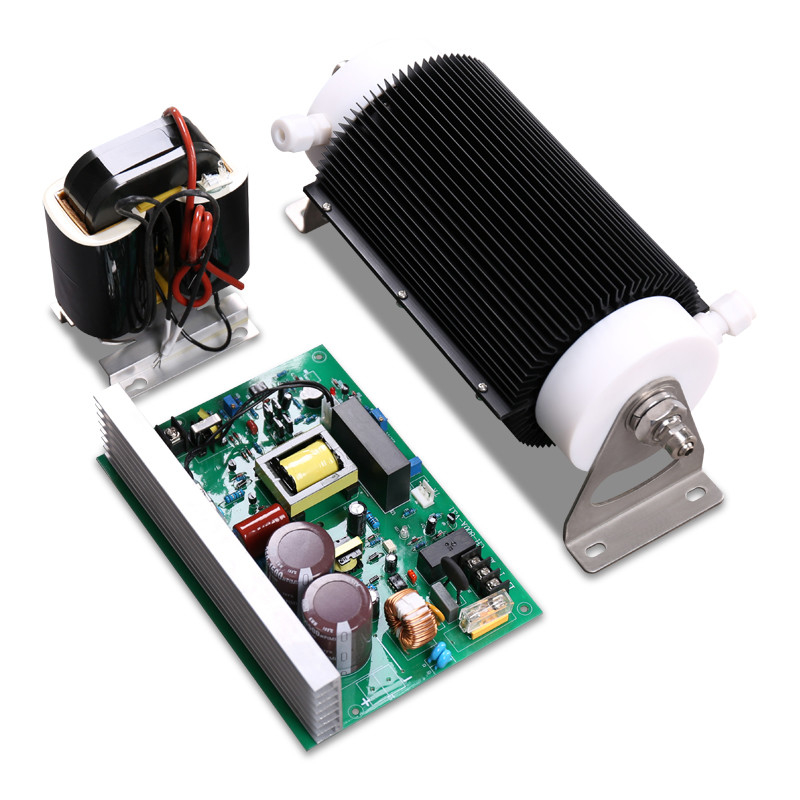

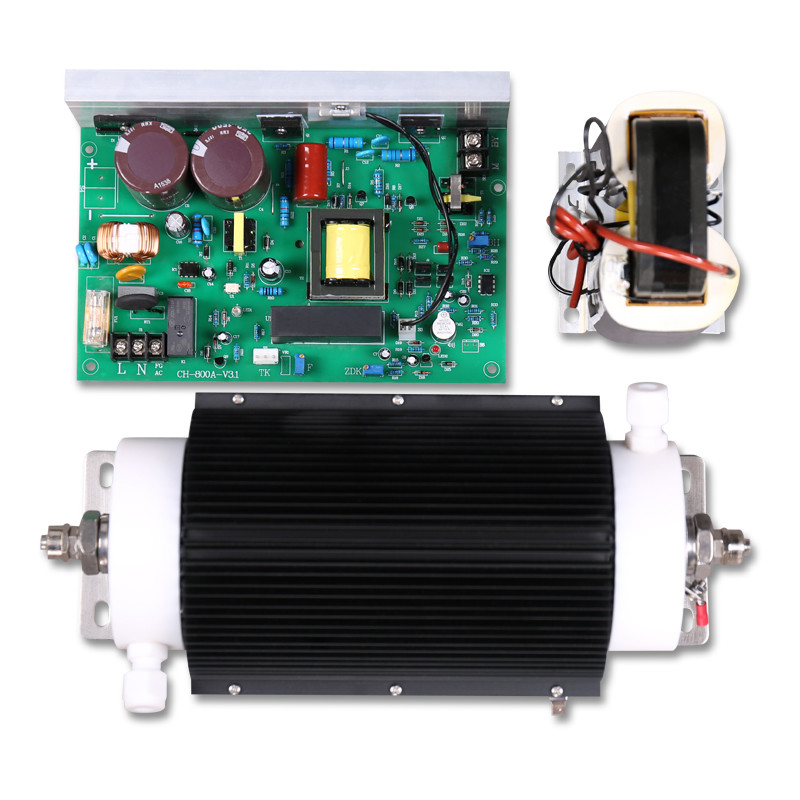

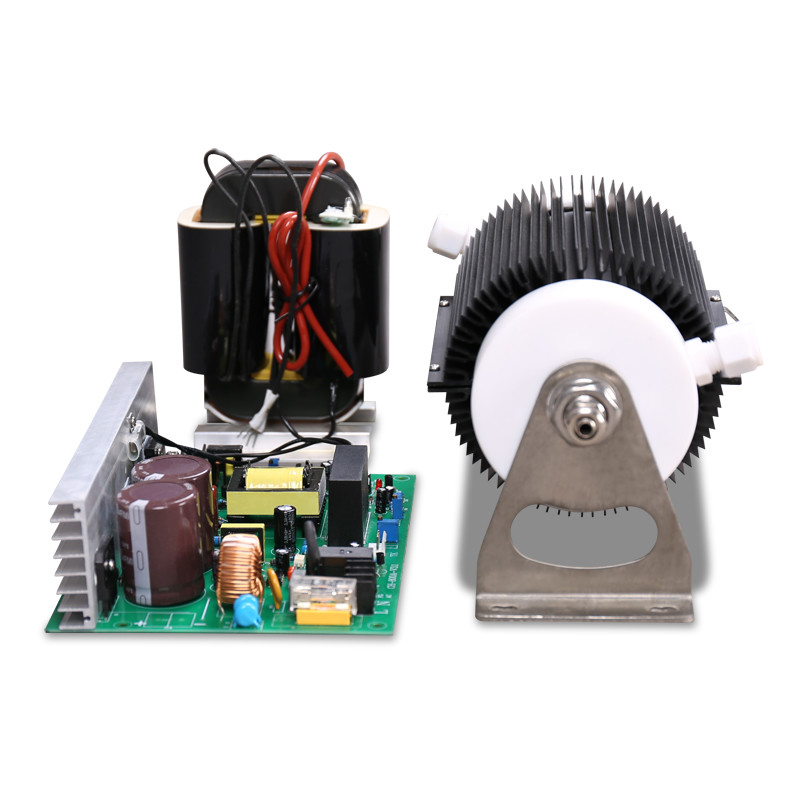

Air and water cooling ozone generator accessories Ceramic Ozone Tube

Air and water cooling ozone generator accessories Ceramic Ozone Tube

Features:

*Extremely low rate of ozone decay & high ozone concentration.

Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.

*Domestic patent product -- got domestic patent in 2008.

A The internal electrode cooled by water, external electrode cooled by air (fan).

B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.

C High technology—the thickness of ceramic tube is only 1.70 mm.

*Low working voltage

The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

*Small in size.

It is 1/4 smaller than similar products with same capacity.

Air and water cooling ozone generator accessories Ceramic Ozone Tube



Item	Unit	CH-PT7-50G
/	/	7GM	7GA	15GA-1	30GA	50GA
Ambient temperature	℃	28		21.9	22	26
Ambient humidity	%	37		39	38	44
Oxygen feed flow rate	LPM	1~3		3~5	7~9	15~18
Ozone concentration	Mg/L	70-40		66.4~53	62~53	52~49
Ozone output	G/Hr	4.2~7.2		11.9~15.9	26~28.6	46.8~52.9
Power (220V)	W	≤100	≤100	≤190	≤500	≤500
Current +_10%	A	0.45		0.86	1.4	1.9
Cooling way		Air cooling for external electrode,water cooling for internal electrode
Cooling water flow rate	LPM	>2
Diameter of cooling water pipe	mm	EDФ10
Temperature of cooling water	℃	Ambient temperature ±8℃







Air and water cooling ozone generator accessories Ceramic Ozone Tube



Company Introdcution:

Guangzhou OSUNSHINE Environmental Technology Co., Ltd., based on the parent company of Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone generator, Oxygen machine, Sodidum Hypochlorite generator, Ozone tube, Titanium anode plate, accessories production, development and application of products etc.
