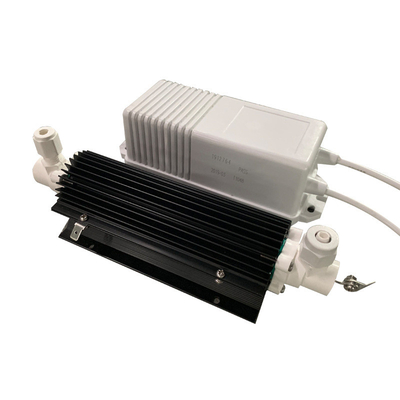

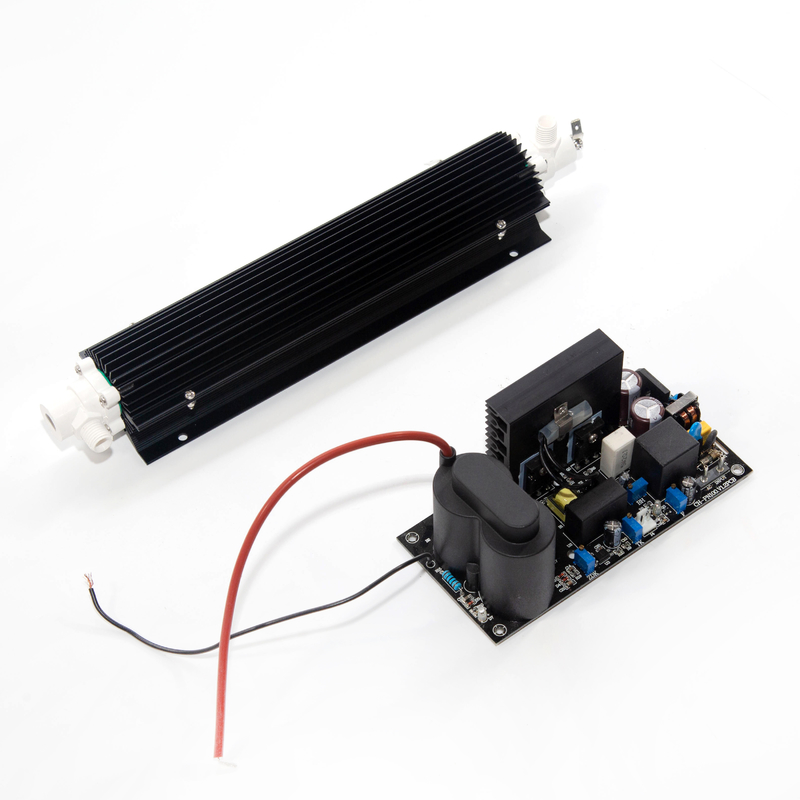

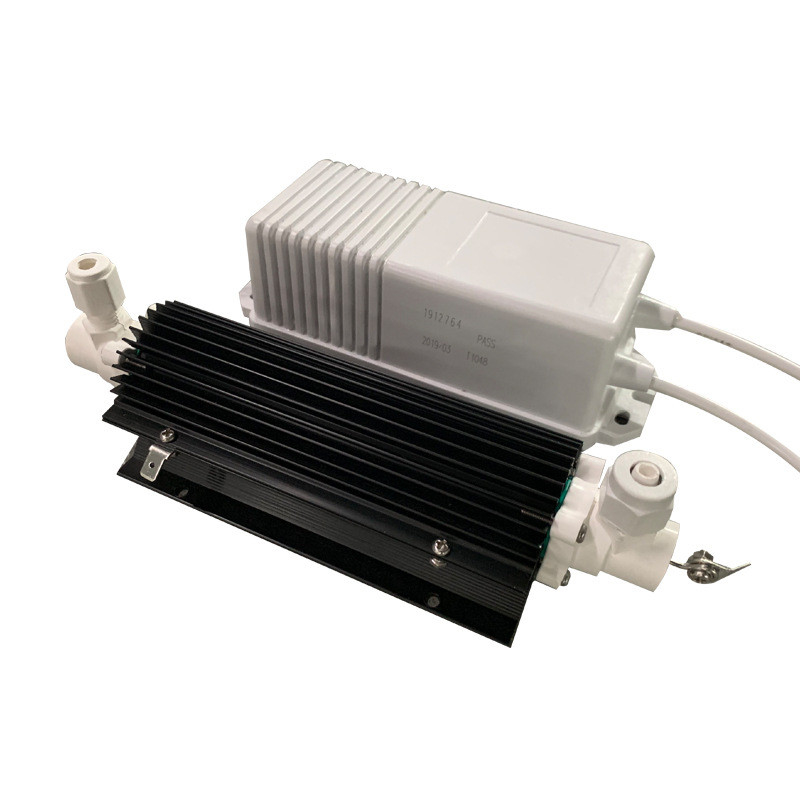

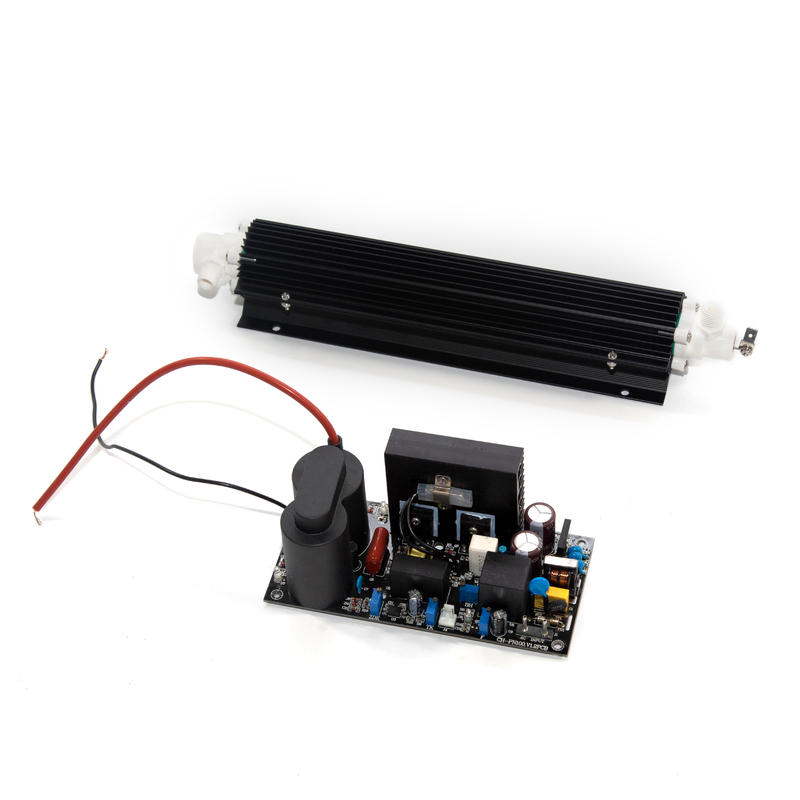

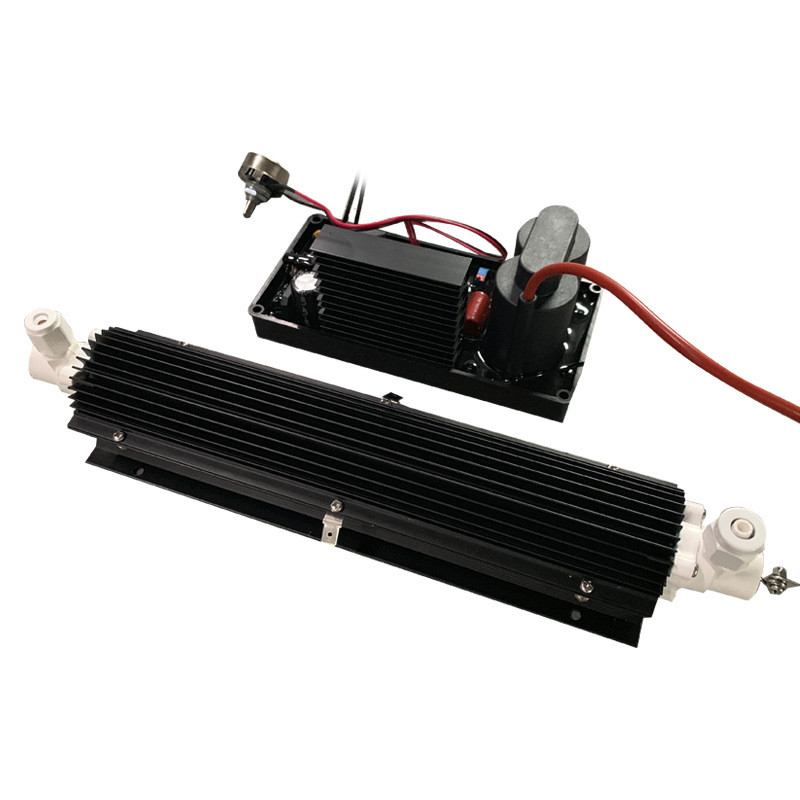

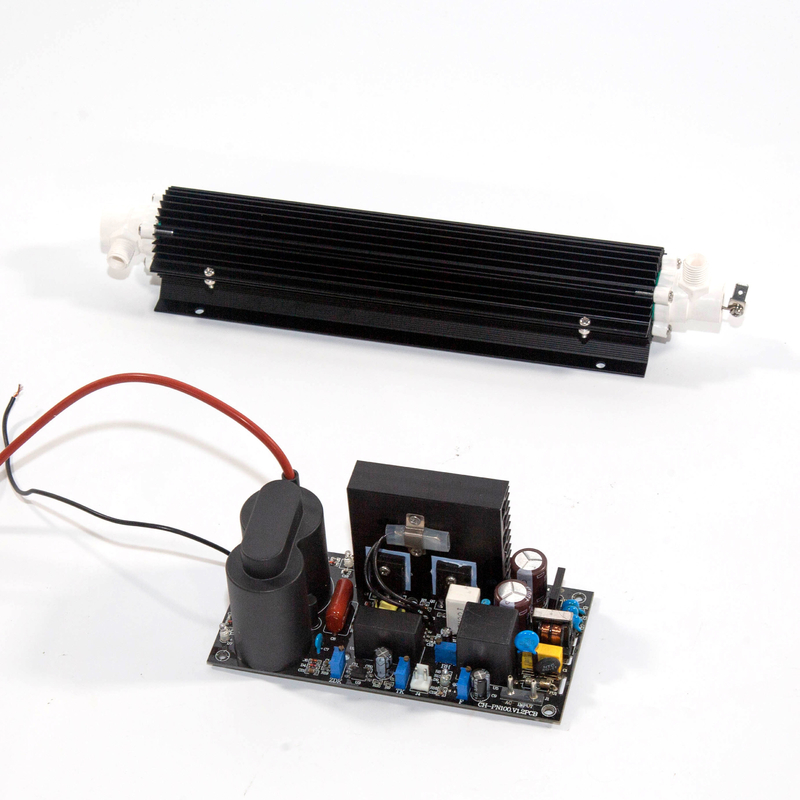

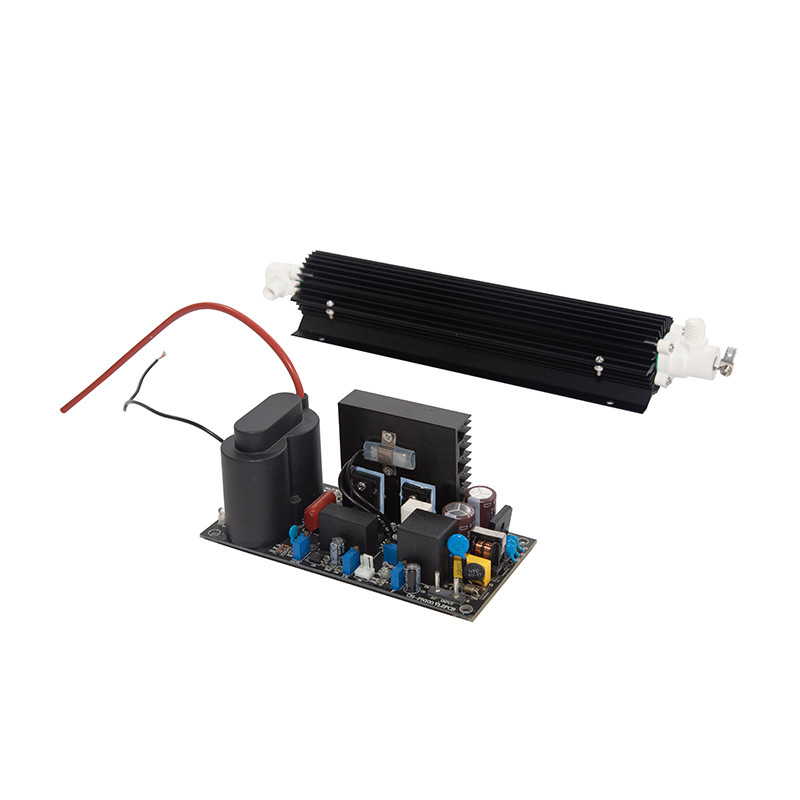

Air cooling ozone quartz tube 3g 5g 8g10g Quartz Tube Ozone Generator
Features:
1. Low rate of ozone decay
2. High ozone concentration.
3.Air cooled for internal & external electrodes.
4. Stable ozone output.
3. Low working voltage.
4. Small in size.
Specification:
Item | Unit | CH-PSF3M | CH-PSF5M / CH-PSF5A | |||||
Ambient temperature | ℃ | 26 | 26 | |||||
Ambient humidity | % | 77 | 77 | |||||
Power | W | 50 | 66 | |||||
Oxygen feed flow rate | LPM | 2 | 1.5 | 1 | 0.5 | 2 | 1 | 0.5 |
Ozone concentration | Mg/L | 32.9 | 37 | 39 | 47.2 | 42.5 | 47.3 | 53.4 |
Ozone output | G/Hr | 3.95 | 3.3 | 2.34 | 1.42 | 5.1 | 2.83 | 1.6 |
Ozone output adjustable range | % | / | CH-PSF5M: / CH-PSF5A: 20-100% | |||||
Line power supply | V/Hz | 220v/50hz | 220v/50hz | |||||
Cooling way | / | Air cooling | Air cooling | |||||
Diameter of cooling fan | mm | 150*150mm | 150*150mm | |||||
Diameter of gas inlet/outlet | mm | EDФ6 | EDФ6 | |||||
Power supply dimensions | mm | 158*73*54 | CH-PSF5M: 175*66*57 CH-PSF5A: 158*75*68 | |||||
ozone tube dimensions | mm | 160*62*47 | 205*62*47 | |||||
Ozone tube weight | Kg | 0.282 | 0.381 | |||||
Power supply weight | Kg | 0.59 | CH-PSF5M: 0.72 CH-PSF5A: 0.52 |
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
