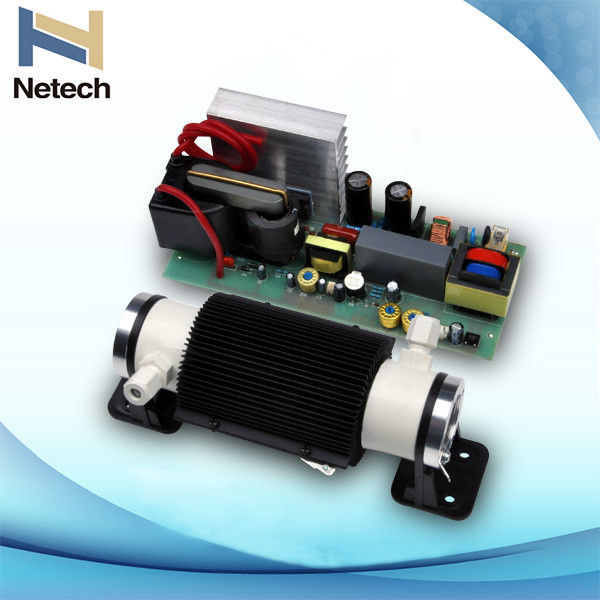

Adjustable 20% to 100% ozone output ozone generator spare parts ceramic tube

Adjustable 20% to 100% ozone output ozone generator spare parts ceramic tube

  • High Light

    ozone accessories

    ,

    ceramic ozone tube

  • Material
    Ceramic Tube
  • Moq
    1 Set
  • Warranty
    1 Year
  • Output
    1g 3g 5g 6g 7g
  • Brand
    Netech
  • Model
    NT-PTF
  • Adjustable
    20% To 100%
  • Set
    With Power Supply
  • Place of Origin
    China
  • Brand Name
    Netech
  • Certification
    ISO
  • Model Number
    NT-PTF
  • Minimum Order Quantity
    1
  • Packaging Details
    Safe double carton package with foam inside for protection
  • Delivery Time
    3 to 5days
  • Payment Terms
    paypal,western union,T/T,credit card
  • Supply Ability
    1000 per weeks

Adjustable 20% to 100% ozone output ozone generator spare parts ceramic tube

Adjustable 20% to 100% ozone output ozone generator spare parts ceramic tube



Quick Detail


ozone generator spare parts
1. Easy to maintain and install
2. air cooling ceramic .
3, Low working voltage
4. high concentration

Description
MOQ                                        1 sets
ozone produced medium          ceramic
output                                      1g 3g 5g 6g 7g
cooling way                               air cooling
adjustable range                       20%-100%
ozone produced method           corona discharge
voltage                                      220V/ 50Hz or 110V/60Hz
warranty                                    repair or change new parts during 12 months

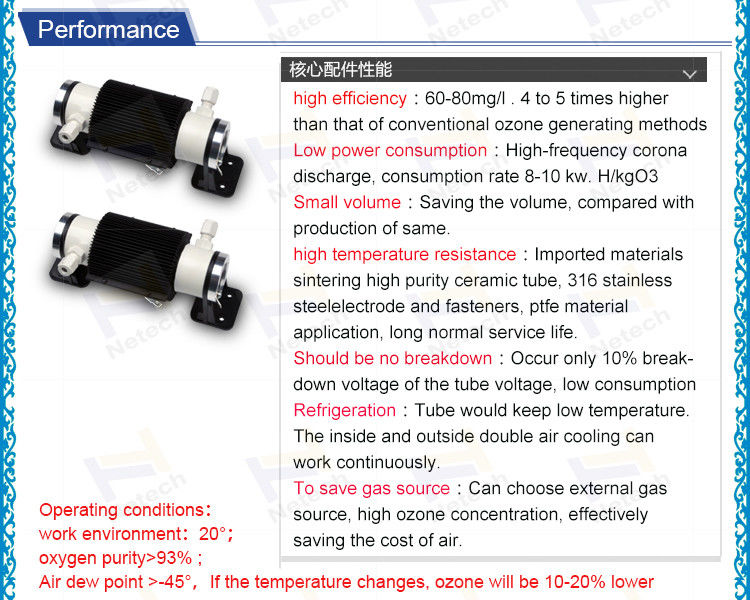

Features
Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around 28~65 Mg/L, which is much higher than conventional <products
Dometic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, <high efficiency and stable ozone output.
It saves space effectively. The size is 1/4 smaller than similar products.



Item Unit NT-PTF
1GM 1GA 3GM 3GA 5GM 5GA 6GA
Oxygen feed flow rate LPM 0.5-2 1-3 1.2-3 1-2.5
Ozone concentration Mg/L 50.3-28 65-28 60-32 50-39
Ozone output G/Hr 1.5-3.36 3.9-5.04 4.32-5.76 3-5.85
Power Kw 0.040 0.050 0.080 0.085
Output frequency KHz 7-15
High voltage output V 3600V Peak to Peak
Power supply dimensions mm 165×65×52 200×75×83 165×65×52 200×75×83 165×65×52 200×75×83 215×87×85
Location of mounting holes of power supply mm 152(5) 190.5×57 152(5) 190.5×57 152(5) 190.5×57 /
Cooling method / Air cooling for internal and external electrode
Fitting size for air & ozone mm ID6, ED8
Ozone output adjustable range % / 20-100 / 20-100 / 20-100
Dew point °C -45
Line power supply V/Hz 110/220V 50/60Hz
Ozone tube dimensions mm 162×60 182×60 200×60 227×60
Mounting hole foot print of ozone tube mm 140×28(5) 160×28(5) 177×28(5)

204.5×28

(5)

Ozone tube weight Kg 0.50 0.53 0.56 0.65
Power supply weight Kg 0.59 0.76 0.59 0.76 0.59 0.76 1.10





Quality control

Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.


After sales service

We provide 12month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.


Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one dealth reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacimethrin efficently and resolve the harmful material in a short time.
