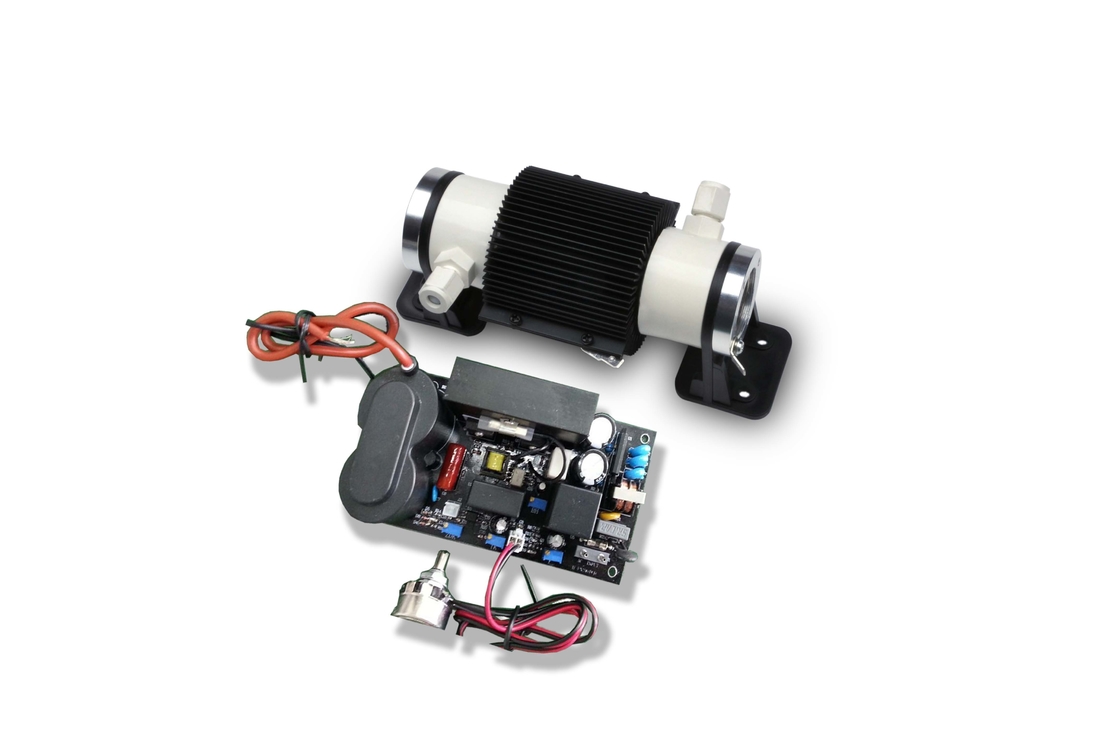

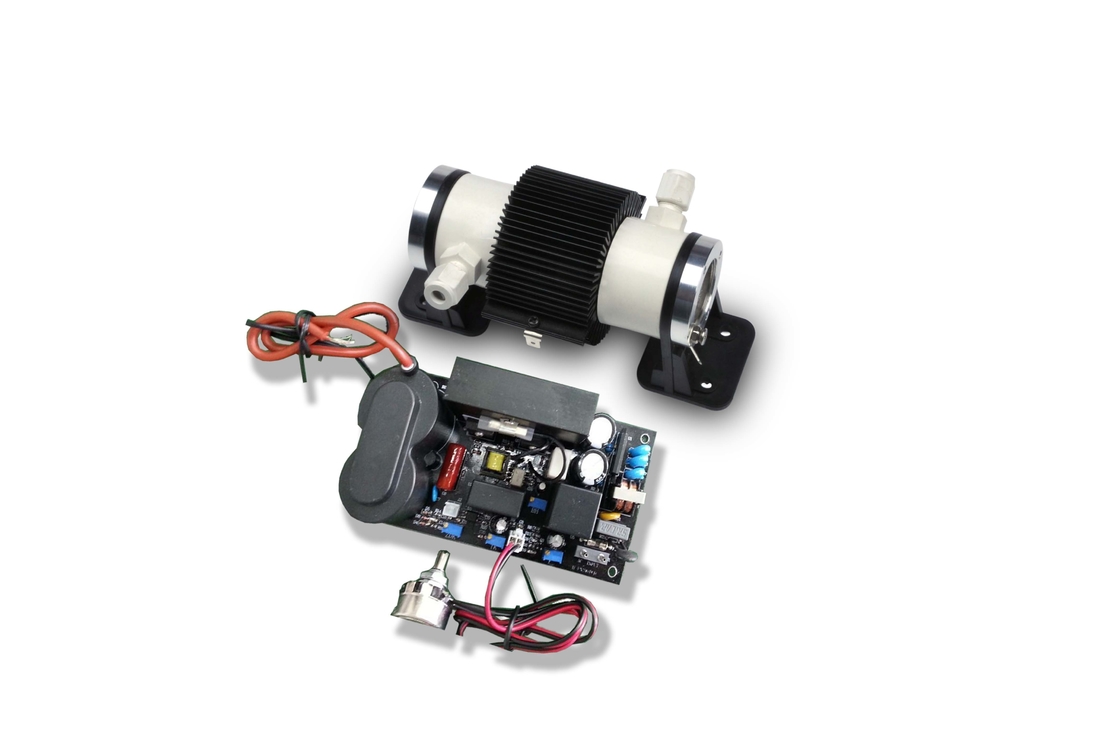

1-3g antioxidant ceramic ozone output adjustable 20~100% ozone generator parts
-
High Light
ozone accessories
,ozone generator tube
-
NameOzone Tube
-
Ozone Output Adjustable Range20~100%
-
Ozone Concentration30~86 Mg/L
-
MaterialHigh Pure Ceramic Tube
-
Size1/4 Smaller Than Similar Products
-
FeatureEasy To Maintain And Install
-
Domestic PatentDomestic Patent In 2008
-
Ozone Output1G, 3G
-
Place of OriginChina(guangzhou)
-
Brand NameCHUANG
-
CertificationCE
-
Model NumberCH-PTF
-
Minimum Order Quantity1 set
-
PriceUSD 26-64/set
-
Packaging DetailsCarton
-
Payment TermsL/C, T/T, Western Union, MoneyGram, Paypal
-
Supply Ability1500 sets/month
1-3g antioxidant ceramic ozone output adjustable 20~100% ozone generator parts
1-3g antioxidant ceramic ozone output adjustable 20~100% ozone generator parts

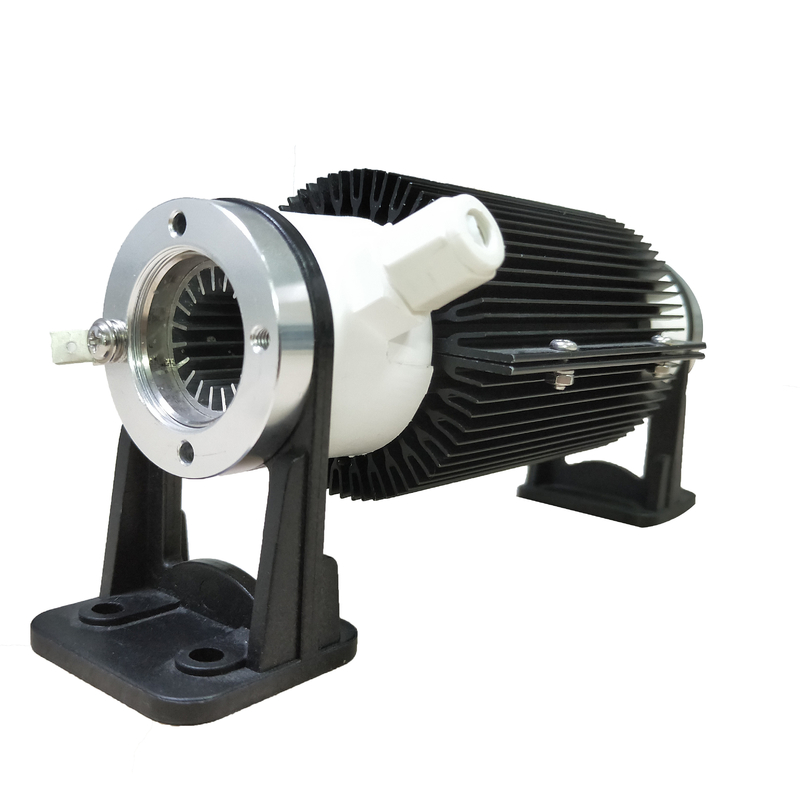

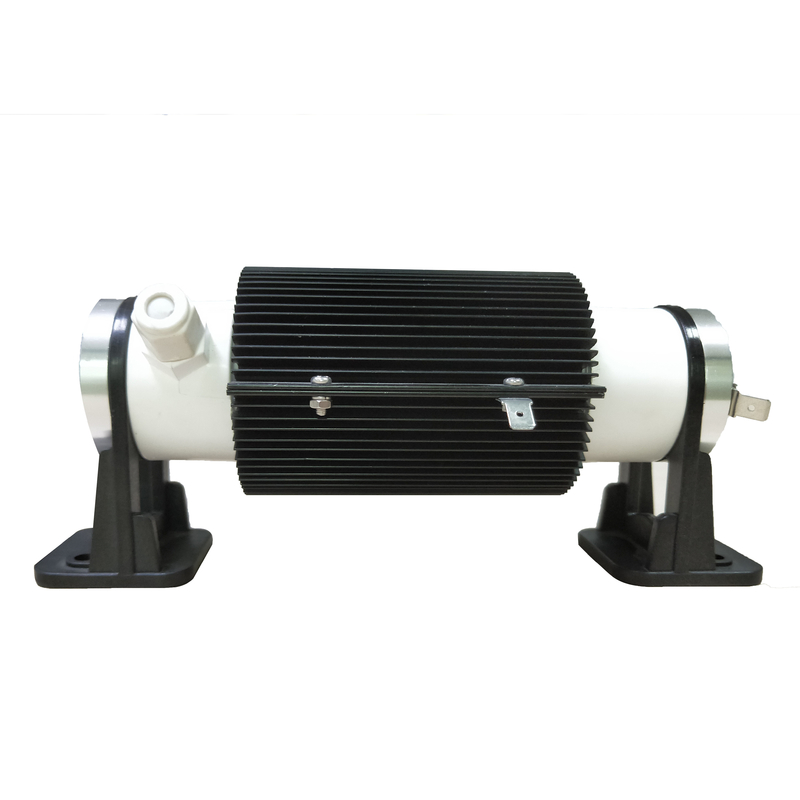

Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.
Features:
1.Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2.Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3.Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4.Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install
Specification:
|
Item |
Unit |
CH-PTF |
||||
|
1G (12V) |
1G (220V) |
1G (110V) |
3GM |
3GA-1 |
||
|
Ambient temperature |
℃ |
21.6 |
25 |
23.6 |
21 |
|
|
Ambient humidity |
% |
40 |
50 |
21.6 |
40 |
|
|
Power |
W |
≤14.4 |
≤15 |
≤15 |
≤50 |
≤80 |
|
Oxygen feed flow rate |
LPM |
0.3~0.5 |
0.3~1 |
0.3~1 |
0.5-1 |
|
|
Ozone concentration |
Mg/L |
49~40 |
49~30 |
49~30 |
81.6-49.2 |
|
|
Ozone output |
G/Hr |
0.88~1.2 |
0.88~1.8 |
2.4-2.95 |
||
|
Ozone output adjustable range |
% |
/ |
/ |
20~100 |
||
|
Line power supply |
V/Hz |
110/60 220/50 |
||||
|
Cooling way |
/ |
Air cooling |
||||
|
Diameter of cooling fan |
mm |
50*50 |
50*50 |
50*50 |
120 |
|
|
Diameter of gas inlet/outlet |
mm |
EDФ6 |
||||
|
Power supply dimensions |
mm |
105*57*50 |
96*47*32 |
96*47*32 |
153×60×53 |
201×86×83 |
|
ozone tube dimensions |
mm |
125*50*50 |
165×90*90 |
|||
|
Ozone tube weight |
Kg |
0.2 |
0.5 |
|||
|
Power supply weight |
Kg |
0.15 |
0.59 |
0.76 |
||
