220v 110v 7g To 50g Air And Water Cooling Ozone Ceramic Tube

Place of Origin China
Brand Name Netech
Model Number NT-PT
Minimum Order Quantity 1
Packaging Details Safe double carton package with foam inside for protection
Delivery Time 3 to 5 days
Payment Terms paypal,western union,T/T,credit card
Supply Ability 1000 per weeks
Product Details
Material Ceramic Ourput 7g To 50g
Appliacation Water Treatment Voltage 220 110
High Light

ceramic ozone tube


ozone generator tube

Leave a Message
Product Description

220V 110V 7g to 50g air and water cooling ozone ceramic tube for water treatment


Quick Detail

water cooling ceramic tube

1, Easy to maintain and install

2. air cooling ceramic tube

3, Low working voltag

4. high efficiency



MOQ                                              1 sets

ozone produced medium                ceramic

output                                             7g 15g 30g 50g

cooling way                                     water cooling

adjustable range                             20%-100%

ozone produced method                 corona discharge

voltage                                            220V/ 50Hz or 110V/60Hz

warranty                                          repair or change new parts during 12 months




1. Extremely low rate of ozone decay & high ozone concentration.

Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.

2. Domestic product -- got domestic in 2008.

A The internal electrode cooled by water, external electrode cooled by air (fan).

B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.

C High technology—the thickness of ceramic tube is only 1.70 mm.

3. Low working voltage

The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

4. Small in size.

It is 1/4 smaller than similar products with same capacity.

5. Easy to maintain and install

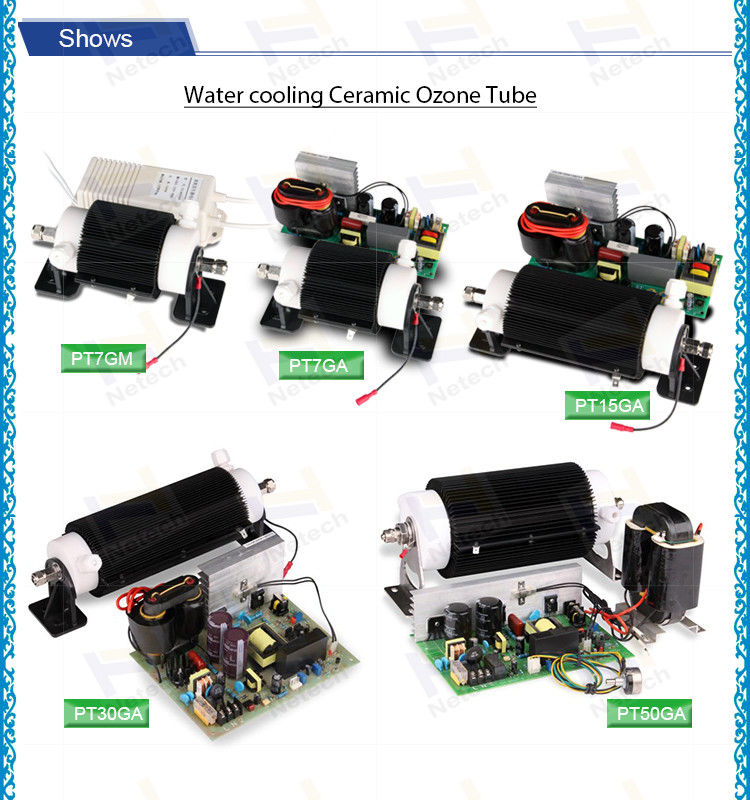

Item Unit CH-PT
7GM 7GA 15GA 30GA 50GA
Ambient temperature °C 28 21.9 22 26
Oxygen feed flow rate LPM 1~3 3~5 7~9 15~18
Ozone concentration Mg/L 70-40 66.4~53 62~53 52~49
Ozone output G/Hr 4.2~7.2 11.9~15.9 26~28.6 46.8~52.9
Power (220V) W ≤100 ≤100 ≤190 ≤300 ≤500
Cooling way   Air cooling for external electrode,water cooling for internal electrode
Cooling water flow rate LPM >2
Diameter of cooling water pipe mm ED10
Temperature of cooling water °C Ambient temperature ±8°C
Diameter of cooling fan mm 1pcs Dia.150 fan 2pcs Dia.150 fan
Diameter of Gas inlet/outlet mm ED6 ED8 ED8 ED8
Ozone output adjust range % / 20-100 20-100
Line power supply V/Hz 110/60 220/50
Ozone tube dimensions mm 200×100×105 260×100×105 340×160×125 325×135×150
Power supply dimensions mm 177×66×53 201×86×83 212×90×95 189×146×95 210×146×62
weight of power supply KG 1.27 1.0 2.45 2.35
weight of ozone tube KG 0.91 1.35 1.9 4.3


Quality control


Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.



After sales service


We provide 12 month free maintenance.

The buyer should return the product in the original conditions to us and should

bear the shipping costs for return.

Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
