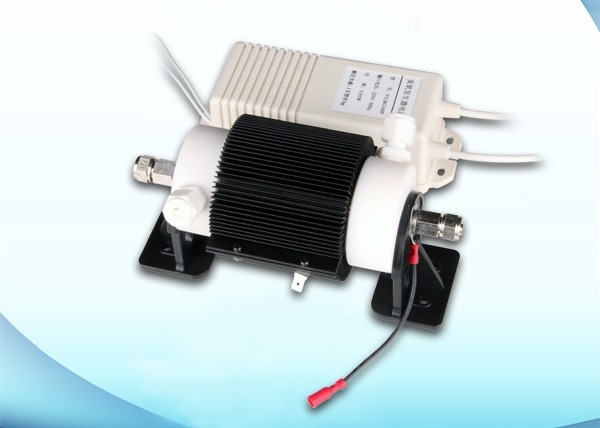

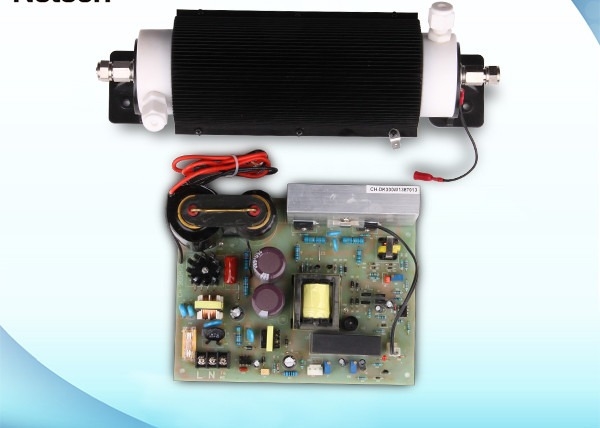

7g / Ht To 50g / Hr Ozone Ceramic Tube Ozone Generator Parts For Waste Water

7g / Ht To 50g / Hr Ozone Ceramic Tube Ozone Generator Parts For Waste Water

    • 7g / Ht To 50g / Hr Ozone Ceramic Tube Ozone Generator Parts For Waste Water
    • 7g / Ht To 50g / Hr Ozone Ceramic Tube Ozone Generator Parts For Waste Water
  • 7g / Ht To 50g / Hr Ozone Ceramic Tube Ozone Generator Parts For Waste Water

    Product Details:

    Place of Origin: China
    Brand Name: Netech
    Model Number: NT-PT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 3 to 5 days
    Payment Terms: paypal,western union,T/T,credit card
    Supply Ability: 1000 per weeks
    Contact Now
    Detailed Product Description
    Material: Ceramic Ourput: 7g To 50g
    Appliacation: Water Treatment Voltage: 220 110
    Adjustable Range: 20%to 100%
    High Light:

    ozone accessories

    ,

    ceramic ozone tube

    220V water treatment air and water cooling ceamic ozone tubes



    Quick Detail

    water cooling ceramic tube

    1, Easy to maintain and install

    2. air cooling ceramic tube

    3, Low working voltag

    4.Higher ozone concentration for water



    Description

    MOQ                                              1 sets

    ozone produced medium                ceramic

    output                                             7g 15g 30g 50g

    cooling way                                    air and  water cooling

    adjustable range                             20%-100%

    ozone produced method                 corona discharge

    voltage                                            220V/ 50Hz or 110V/60Hz

    warranty                                          repair or change new parts during 12 months

    Quality                                             Very high quality



    Features:

    1. Extremely low rate of ozone decay & high ozone concentration.

    Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.

    2. Domestic product -- got domestic in 2008.

    A The internal electrode cooled by water, external electrode cooled by air (fan).

    B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.

    C High technology—the thickness of ceramic tube is only 1.70 mm.

    3. Low working voltage

    The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.

    4. Small in size.

    It is 1/4 smaller than similar products with same capacity.

    5. Easy to maintain and install





    Specification



    Item Unit CH-PT
    7GM 7GA 15GA 30GA 50GA
    Ambient temperature °C 28 21.9 22 26

    Oxygen feed flow rate LPM 1~3 3~5 7~9 15~18
    Ozone concentration Mg/L 70-40 66.4~53 62~53 52~49
    Ozone output G/Hr 4.2~7.2 11.9~15.9 26~28.6 46.8~52.9
    Power (220V) W ≤100 ≤100 ≤190 ≤300 ≤500
    Cooling way   Air cooling for external electrode,water cooling for internal electrode
    Cooling water flow rate LPM >2
    Diameter of cooling water pipe mm ED10
    Temperature of cooling water °C Ambient temperature ±8°C
    Diameter of cooling fan mm 1pcs Dia.150 fan 2pcs Dia.150 fan
    Diameter of Gas inlet/outlet mm ED6 ED8 ED8 ED8
    Ozone output adjust range % / 20-100 20-100
    Line power supply V/Hz 110/60 220/50
    Ozone tube dimensions mm 200×100×105 260×100×105 340×160×125 325×135×150
    Power supply dimensions mm 177×66×53 201×86×83 212×90×95 189×146×95 210×146×62
    weight of power supply KG 1.27 1.0 2.45 2.35
    weight of ozone tube KG 0.91 1.35 1.9 4.3




    Quality control



    Every procedure has personnel inspection.

    All the products must be tested and qualified before packaging.





    After sales service



    We provide 12 month free maintenance.

    The buyer should return the product in the original conditions to us and should

    bear the shipping costs for return.



    Question and answer
    Is ozone harmful to human body ?
    Once the ozone concentration fails to meet the hygiene and safety standard,
    we can notice with our sense of smell and dodge away or take actions to avoid
    further leakage.
    So far there is no one death reported caused by ozone poisoning.
    Does the ozone generator work efficently ?
    Undeniably, ozone can clean and remove odor and formaldehyde.
    It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
    bacteria efficently and resolve the harmful material in a short time.
