|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Safe double carton package with foam inside for protection|
|Delivery Time:||3 to 5 days|
|Payment Terms:||paypal,western union,T/T,credit card|
|Supply Ability:||1000 per weeks|
|Material:||Ceramic||Ourput:||7g To 50g|
|Appliacation:||Water Treatment||Voltage:||220 110|
|Adjustable Range:||20%to 100%|
ceramic ozone tube,
ozone generator tube

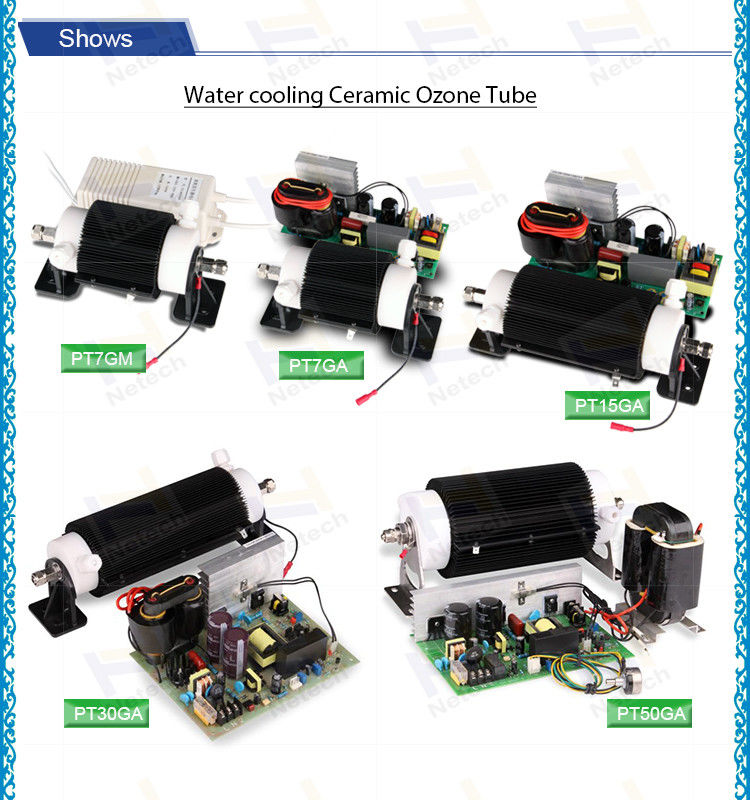

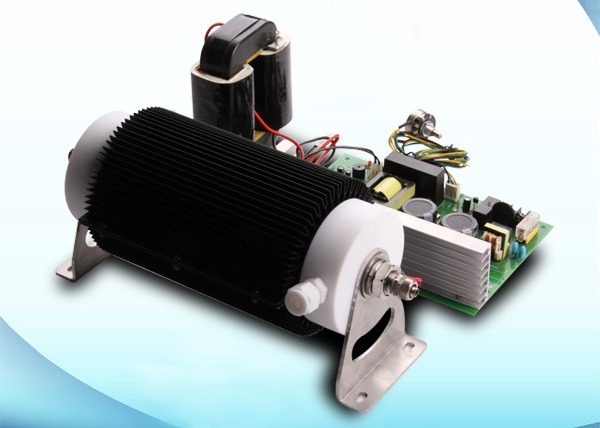

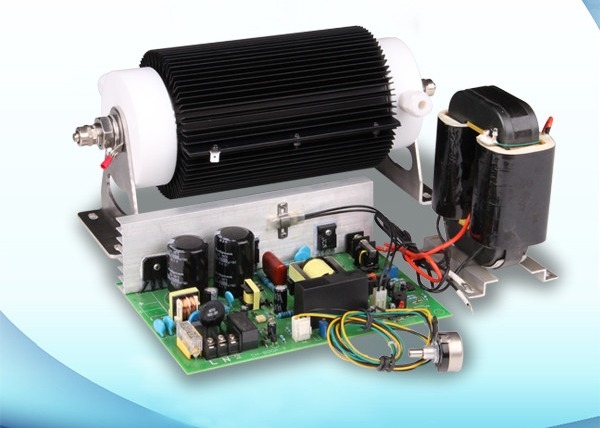

7g/ht to 50g/hr ozone ceramic tube colo corona discharge ozone generator
water cooling ceramic tube
1, Long using life
2. air and water cooling ceramic tube
3, Low working voltag
4. high efficiency
5.Easy to maintain and install
MOQ 1 sets
ozone produced medium ceramic
output 7g 15g 30g 50g
cooling way water cooling
adjustable range 20%-100%
voltage 220V/ 50Hz or 110V/60Hz
warranty repair or change new parts during 12 months
Application For air and water
ozone produced method corona discharge
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
2. Domestic product -- got domestic in 2008.
A The internal electrode cooled by water, external electrode cooled by air (fan).
B The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.
C High technology—the thickness of ceramic tube is only 1.70 mm.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It is 1/4 smaller than similar products with same capacity.
5. Easy to maintain and install
|Oxygen feed flow rate||LPM||1~3||3~5||7~9||15~18|
|Cooling way||Air cooling for external electrode,water cooling for internal electrode|
|Cooling water flow rate||LPM||>2|
|Diameter of cooling water pipe||mm||ED10|
|Temperature of cooling water||°C||Ambient temperature ±8°C|
|Diameter of cooling fan||mm||1pcs Dia.150 fan||2pcs Dia.150 fan|
|Diameter of Gas inlet/outlet||mm||ED6||ED8||ED8||ED8|
|Ozone output adjust range||%||/||20-100||20-100|
|Line power supply||V/Hz||110/60 220/50|
|Ozone tube dimensions||mm||200×100×105||260×100×105||340×160×125||325×135×150|
|Power supply dimensions||mm||177×66×53||201×86×83||212×90×95||189×146×95||210×146×62|
|weight of power supply||KG||1.27||1.0||2.45||2.35|
|weight of ozone tube||KG||0.91||1.35||1.9||4.3|
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteria efficently and resolve the harmful material in a short time.
