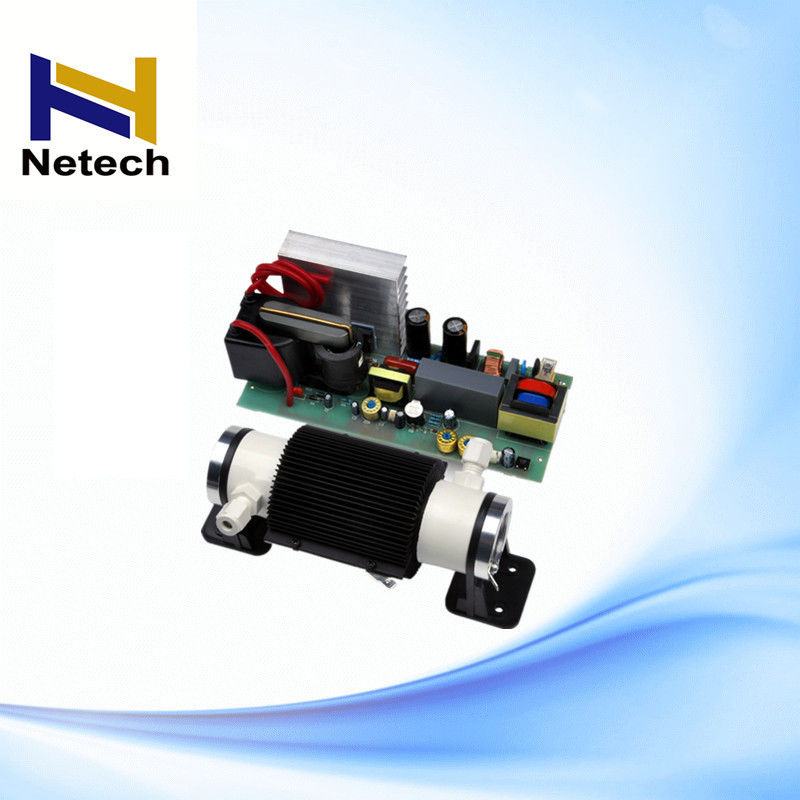

1 - 7G Air Cooling Ceramic High Pure Ozone Generator Tube / Ozone Generator Parts
Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.
Features:
1.Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2.Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3.Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Easy to maintain and install
5. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
Specifications:
CH - PTF1G ~3G
|
Item |
Unit |
CH -PTF |
||||
|
1G (12V) |
1G (220V) |
1G (110V) |
3GM |
3GA |
||
|
Ambient temperature |
℃ |
21.6 |
25 |
23.6 |
21 |
|
|
Ambient humidity |
% |
40 |
50 |
21.6 |
40 |
|
|
Power |
W |
≤14.4 |
≤15 |
≤15 |
≤50 |
≤80 |
|
Oxygen feed flow rate |
LPM |
0.3~0.5 |
0.3~1 |
0.3~1 |
0.5-1 |
|
|
Ozone concentration |
Mg/L |
49~40 |
49~30 |
49~30 |
81.6-49.2 |
|
|
Ozone output |
G/Hr |
0.88~1.2 |
0.88~1.8 |
2.4-2.95 |
||
|
Ozone output adjustable range |
% |
/ |
/ |
20~100 |
||
|
Line power supply |
V/Hz |
110/60 220/50 |
||||
|
Cooling way |
/ |
Air cooling |
||||
|
Diameter of cooling fan |
mm |
50*50 |
50*50 |
50*50 |
120 |
|
|
Diameter of gas inlet/outlet |
mm |
EDФ6 |
||||
|
Power supply dimensions |
mm |
105*57*50 |
96*47*32 |
96*47*32 |
153×60×53 |
201×86×83 |
|
ozone tube dimensions |
mm |
125*50*50 |
165×90*90 |
|||
|
Ozone tube weight |
Kg |
0.2 |
0.5 |
|||
|
Power supply weight |
Kg |
0.15 |
0.59 |
0.76 |
||

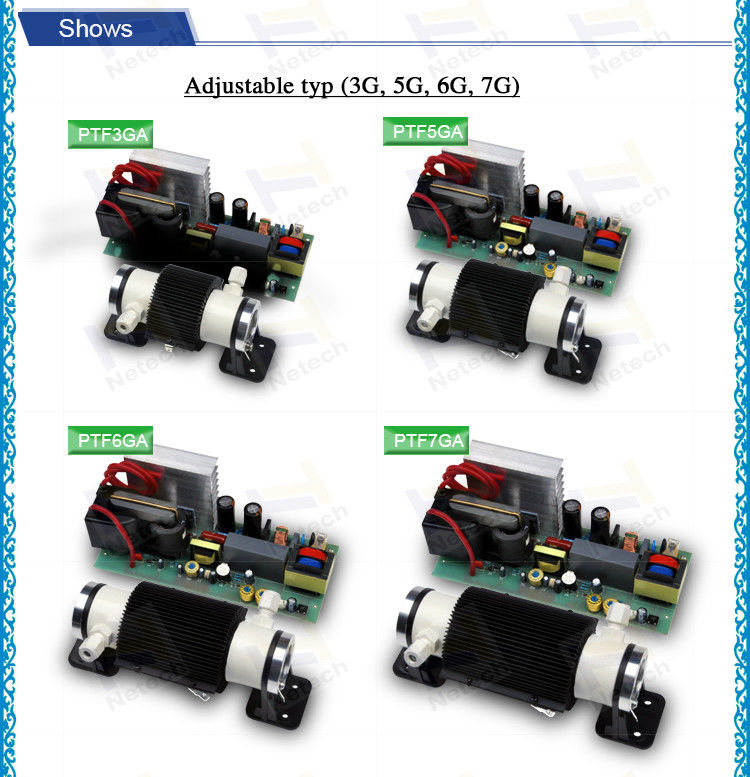

CH-PTF5G ~7G
|
Item |
Unit |
CH-PTF |
||||
|
5GM |
5GA |
6GM |
6GA |
7GA |
||
|
Ambient temperature |
℃ |
21 |
21 |
26 |
26 |
|
|
Ambient humidity |
% |
40 |
49 |
49 |
||
|
Power |
W |
≤65 |
≤80 |
≤80 |
≤85 |
≤95 |
|
Oxygen feed flow rate |
LPM |
0.5-2 |
1~3 |
1~3 |
||
|
Ozone concentration |
Mg/L |
72~48 |
64.6~36.7 |
70~41.2 |
||
|
Ozone output |
G/Hr |
2.16~4.76 |
3.9~6.6 |
4.20~7.4 |
||
|
Ozone output adjustable range |
% |
/ |
20~100 |
/ |
20~100 |
20~100 |
|
Line power supply |
V/Hz |
110/60 220/50 |
||||
|
Cooling way |
/ |
Air cooling |
||||
|
Diameter of cooling fan |
mm |
150 |
||||
|
Diameter of gas inlet/outlet |
mm |
EDФ6 |
||||
|
Power supply dimensions |
mm |
177*66*53 |
201*86*83 |
177*66*53 |
201*86*83 |
201*86*83 |
|
ozone tube dimensions |
mm |
185*90*90 |
200*90*90 |
212*90*90 |
||
|
Ozone tube weight |
Kg |
0.53 |
0.56 |
0.65 |
||
|
Power supply weight |
Kg |
0.59 |
0.76 |
0.59 |
0.76 |
1.1 |
Domestic Utility Model : NO.2012 2 0273958.4
Domestic Design : NO.2012 3 0010170. X
Why choosing us?
1.Having 10 years production experienced .We are trusty business partner.
2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
3.CH-PTF Production Capacity: 3000 pcs per month.
4.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
5.We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor.
Our products are sold all over the world, you can rest assured.
