18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts

18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts

    • 18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts
    • 18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts
    • 18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts
    • 18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts
  • 18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts

    Product Details:

    Place of Origin: Guangzhou,China
    Brand Name: Netech
    Model Number: CH-PC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Packaging Details: carton +
    Delivery Time: 2-3 working days
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 1000 pieces per month
    Contact Now
    Detailed Product Description
    Cooling Way: Internal & External Water Cooling Voltage: 220V/ 50Hz Or 110V/60Hz
    Produced Method: Corona Discharge Ozone Output: 18g/hr, 30g/hr, 40g/hr, 60g/hr, 80g/hr,
    Customize Service: Accept OEM And ODM Warranty: One Year
    Application: Water Treatment Or Air Purify Ozone Adjustable: 20%-100%
    Item: Ozone Tube Material: Enamel
    Coolking Way: Water Cooling MOQ: 1 Piece
    High Light:

    ozone accessories

    ,

    ozone generator tube

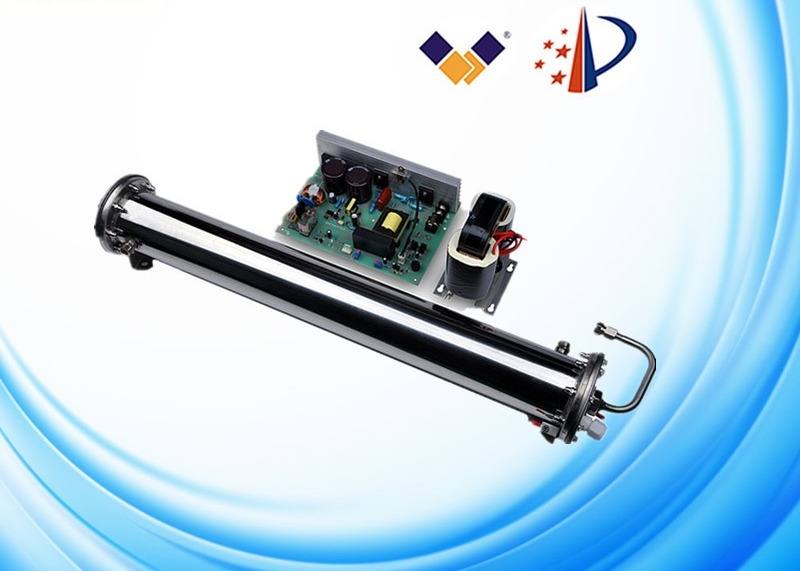

    18G Water Cooling Enamel Ozone Tube / Ozone Generator Parts





    Quick Detail



    ozone generator parts

    1. concentration up to 90%

    2. 20%-100% adjustable range

    3. water cooling

    4. high efficiency



    Features:



    1. Electrodes



    Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless steel external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.





    2. Cooling way



    Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.





    3. Adjustable ozone output: 20-100%:



    Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.





    Specification:



    Item

    Unit

    CH-PC18G

    CH-PC30G

    CH-PC40G

    CH-PC60G

    CH-PC80G

    Ambient temperature

    23

    23

    23.9

    23.9

    24

    Ambient humidity

    %

    38

    38

    37

    Oxygen flow rate

    LPM

    1~4

    2~8

    3~10

    5~17

    8~20

    Ozone concentration

    Mg/L

    112~78

    123~72

    123~70

    120-72

    118-74

    Ozone output

    G/Hr

    6.7-18.7

    14.8~34.6

    22.1-42

    36-73

    56-88

    Power

    Kw

    ≤0.22

    ≤0.3

    ≤0.4

    ≤0.6

    ≤0.8

    Cooling method

    Water cooling for internal & external electrodes

    Cooling water flow rate

    LPM

    ≥2

    Cooling water temperature

    ambient temperature ± 8℃

    Diameter of gas inlet/outlet

    mm

    1.Air inlet & ozone outlet: EDφ8mm

    Diameter of water inlet/outlet



    EDφ10mm

    Adjustable range

    %

    20-100

    Power supply

    V/Hz

    110/220V  60/50HZ

    Fuse

    A

    3

    5

    10

    Ozone tube dimension

    mm

    285*160*125

    340*160*125

    460*160*125

    600*160*125

    705*160*125

    Power supply dimension

    mm

    212*90*95

    189*146*95

    210*146*62

    Ozone tube weight

    Kg

    2.5

    3

    3.6

    4.9

    5.45

    Power supply weight

    Kg

    1

    2.4





    18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts 0

    18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts 1

    18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts 2

    18G Water Cooling Enamel Ozone Tube OEM and ODM Accetable Ozone Generator Parts 3

    Domestic : ZL 2010 3 0170329.5





    Quality control



    Every procedure has personnel inspection.

    All the products must be tested and qualified before packaging.





    After sales service



    We provide 12 month free maintenance.

    The buyer should return the product in the original conditions to us and should

    bear the shipping costs for return.
