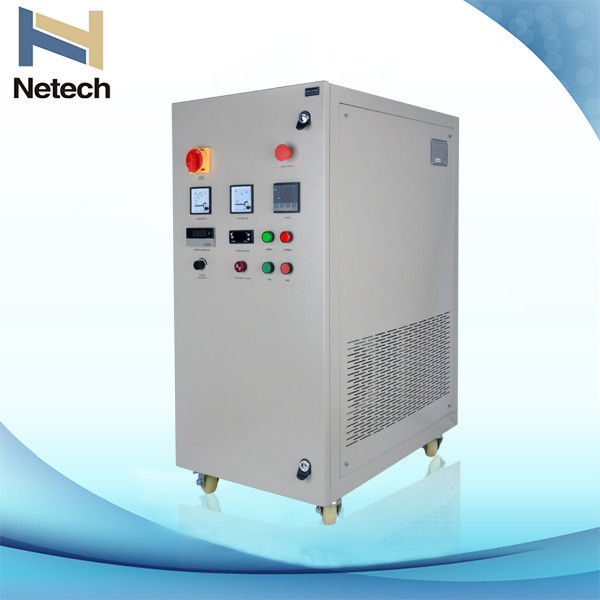

10g / Hr To 100g / Hr Large Ozone Generator Water Treatment System

10g / Hr To 100g / Hr Large Ozone Generator Water Treatment System

    • 10g / Hr To 100g / Hr Large Ozone Generator Water Treatment System
    • 10g / Hr To 100g / Hr Large Ozone Generator Water Treatment System
  • 10g / Hr To 100g / Hr Large Ozone Generator Water Treatment System

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Netech
    Model Number: NT-Y

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: for futher discussion
    Packaging Details: Safe double carton package with foam inside for protection
    Delivery Time: 5-10 days after payment confirmed
    Payment Terms: EXW / FOB / CIF
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Output: 10g/hr To 100g/hr Material: Ozone Enamel Tube
    Application: Water Treatment MOQ: 1 YEAR
    High Light:

    high output ozone generator


    high concentration ozone generator

    10g/hr to100g/hr ozone generator water treatment system ozone generator



    Quick details


    Brand Name: Netech

    Model Number: NT-Y

    Certification: domestic
    Ozone output way: corona discharge

    Warranty: one year warranty
    Adjustable rate:20%-100% adjustable ozone





    Gas source Oxygen
    Oxygen flow rate 1-18LPM
    Material Enamel tube
    Cooling Water cooling
    Power supply 220V , 50HZ
    Commodity Ozone water system
    Ozone output

    40g 50g



    How to use ?


    1. Before use this machine, put it in a stable flat place which can hold its weight.

    2. Use the power equipped with the machine;

    3. The machine use for air purification, firstly attach the silicone tube into the

    ozone outlet and then turn on the power;

    4. Set the timer and then come out ozone, and put the tube into the room.

    5. When use for room air purification, it requires nobody is present , after 30

    minutes people can walk into the room.

    6. If use for water treatment, the air stone should be attached into the silicone

    tube and put into the water.

    7. Attention, the machine should be placed higher than the water, incase that the water reflux occur.





    1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator

    2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time

    3. Adjustable ozone range: 20%--100%, it can working automatic

    4. Compact assembly,Movable with Wheels

    5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety

    Control panel:

    Ozone output adjuster, Voltmeter,  Ampere, Timer, Cooling water temperature indicator, Ozone  Ampere, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm





    Item Unit NT-Y40G NT-Y50G NT-Y100G
    Oxygen flow rate LPM 5~15 8~18 16-32
    Ozone concentration Mg/L 90~56 90~60 90~58
    Ozone output G/Hr 27~50 43~64 86~111
    Power Kw ≤1.62 ≤1.85 3.5
    Fuse A 15 20 20
    Cooling water flow LPM 48
    Size mm 650×1030×1230 650×1030×1230

    1. Above ozone capacity were tested under oxygen source

    2. Net weight will be 10% different for different plug



    Question and answer


    ♦ Is ozone harmful to human body ?

    Once the ozone concentration fails to meet the hygiene and safety standard,

    we can notice with our sense of smell and dodge away or take actions to avoid

    further leakage.

    So far there is no one dead reported caused by ozone poisoning.


    ♦ Does the ozone generator work efficiently ?

    Undeniably, ozone can clean and remove odor and formaldehyde.

    It is reported that ozone is a widely used bactericide.It can kill escherichia coli,

    bacteria efficiently and resolve the harmful material in a short time.
